14
Lounge
Ceiling

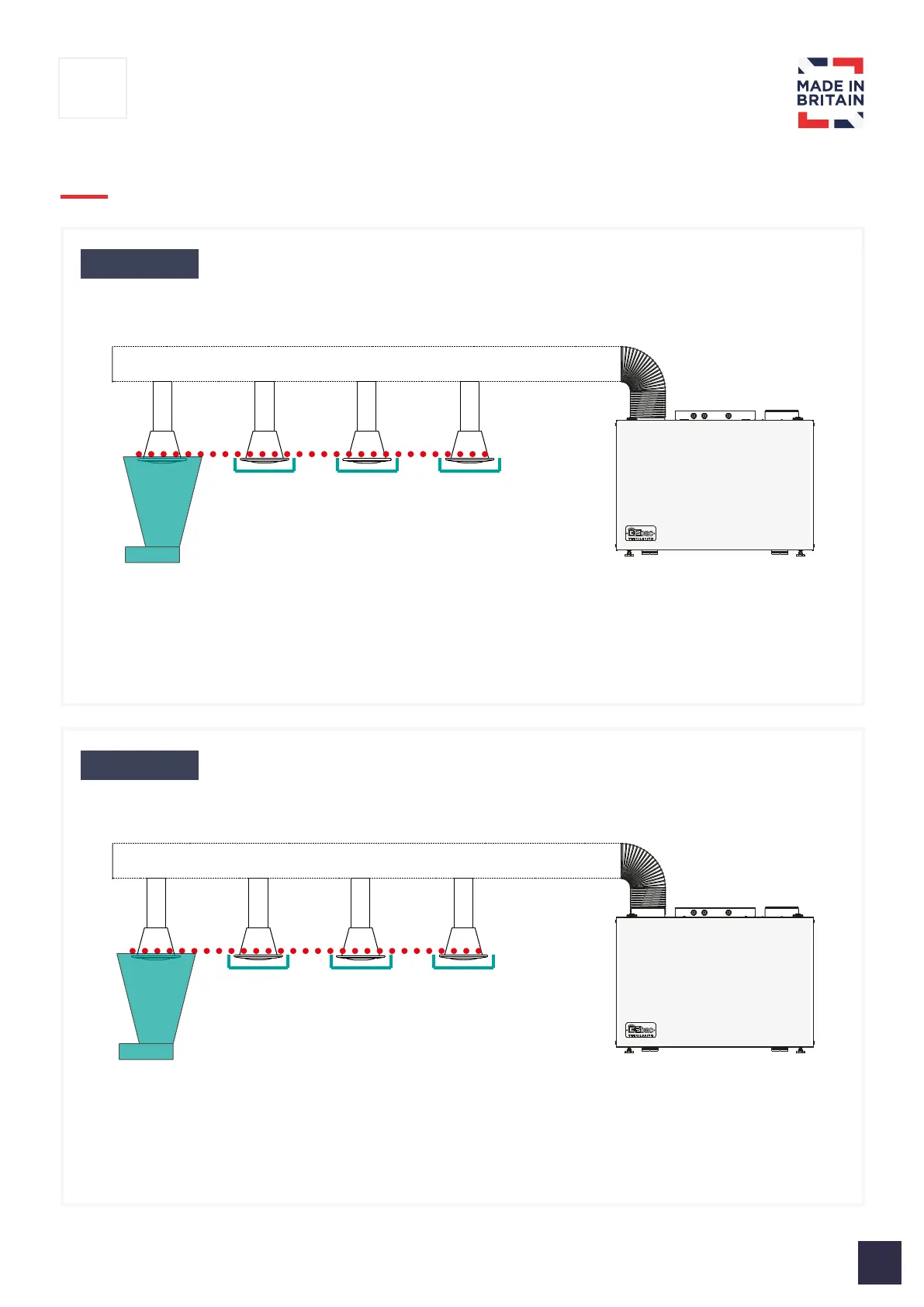

1. Fully close or temporarily seal shut all
supply vents apart from the vent which is
furthest away from the MVHR unit
2. Toggle the supply fan speed to 100%. Using a
hooded anemometer, measure the air flow and
input it into the touch controller
Bedroom 2 Bedroom 1 Hallway
SUPPLY
EXTRACT
Utility
1. Fully close or temporarily seal shut all
extract vents apart from the vent which is
furthest away from the MVHR unit
2. Toggle the extract fan speed to 100%. Using a
hooded anemometer, measure the air flow and
input it into the touch controller
Kitchen En-suite Hallway
Ceiling
Figure 1
Figure 2
Unit Commissioning
3.0
