3) IMPELLER AND SHUTTER CLEANING
Once the cleaning operation has been completed make sure to re-mount the filters and the heat exchanger in
their location.

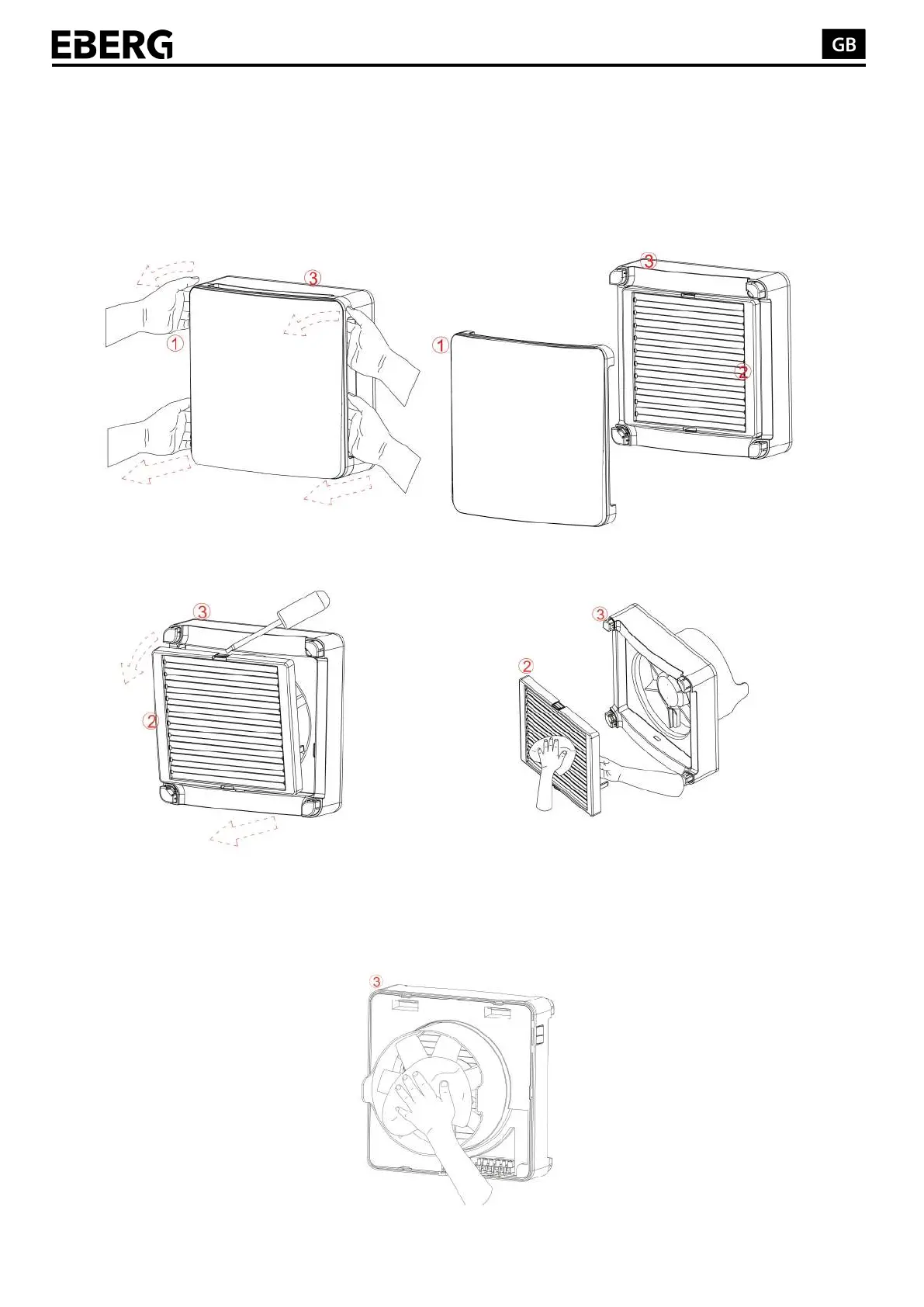

Take the main unit group (1+2+3) and remove the front cover (1) by pulling out the upper hooks firstly and then
the lower ones.
To remove the shutter from the main unit (3) use a flat screwdriver and prize on the hooks.
Clean any dirt and dust residues on the shutter with a dry cloth (2).
Carefully re-mount the particular in its location until the complete assembly.
Clean the fan blades of the main unit with a dry cloth (3)
