Eberg REQU - Installation

33
EBERG REQU R+
Speed 1 2 3 4 5
Voltage at 50Hz 220-240Vac 220-240Vac 220-240Vac 220-240Vac 220-240Vac
Power Ø160 [W] 4,9 5,9 6,9 7,9 8,9
Power Ø100 [W] 3,9 4,9 5,9 6,9 7,9
Flow rate Ø160 [m³/h] 30 37,5 45 52,5 60
Flow rate Ø100 [m³/h] 15 18,5 22,5 26,5 30
Noise at 3 m Ø160 [dB] 13 16,5 20 21,5 23
Noise at 3 m Ø100 [dB] 19 21,5 24 26,5 29
Max efficiency 93% 93% 93% 93% 93%

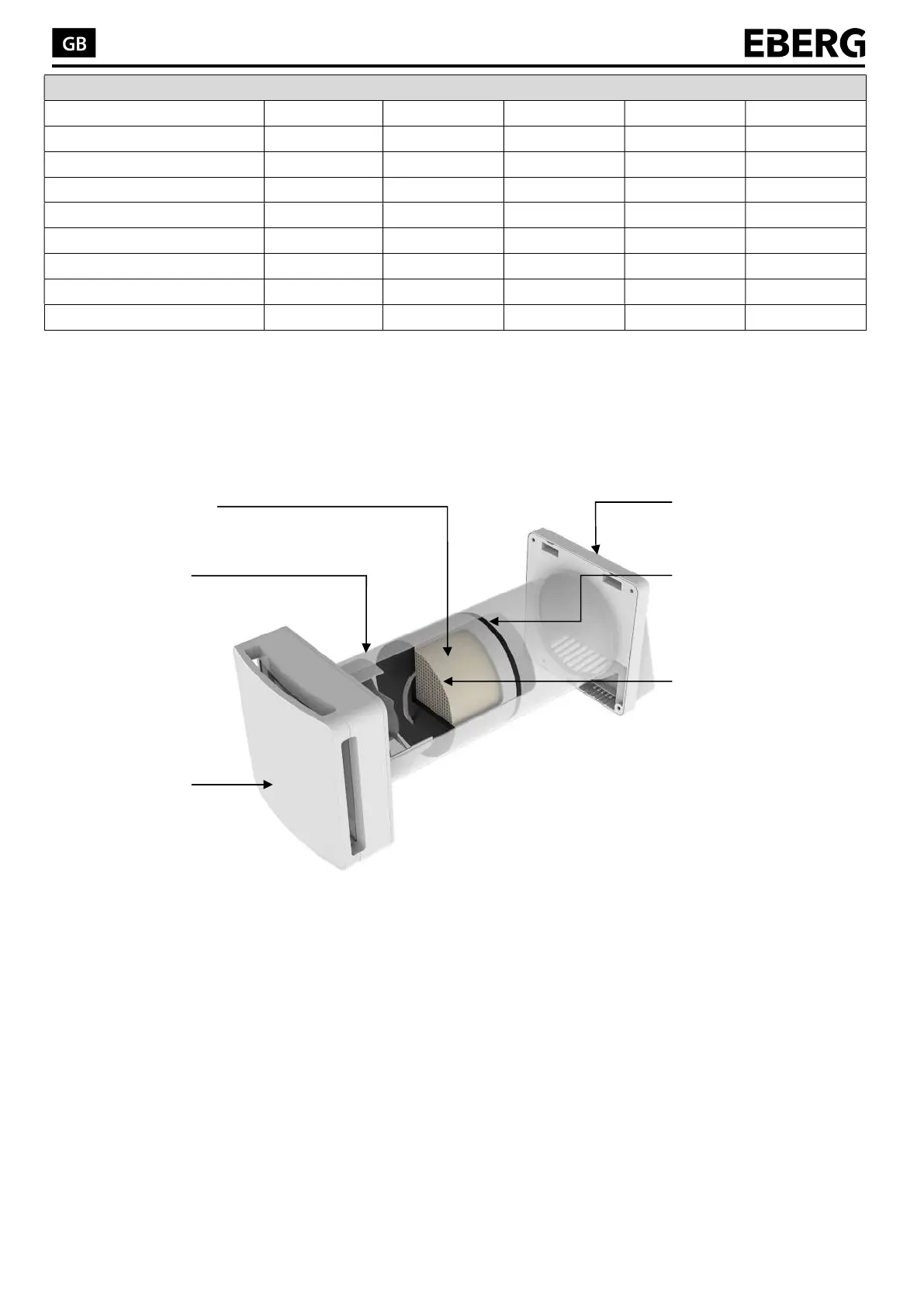

CONSTRUCTION
The product is composed of a wall mounted unit to be placed inside the room, a recessed duct which contains
the ceramic heat exchanger and filters and an external wall mounted conveyor.
Ceramic heat conveyor
External wall mounted
conveyor
Recessed duct External filter
Internal filter
Wall mounted unit
INSTALLATION
Installation must only be carried out by properly qualified person.
Make sure that the main electrical supply in the installation room is disconnected before starting the electrical
operations of assembly.
The appliance must not be installed near curtains, drapes, etc. as these could compromise the correct working of
the product.
Make sure that, once installed, the fan blades are placed not less than 2,30m away from the floor below to the
product. In case of installation of more than one appliance, the distance between the products must be at least 3
metres.
Before assembling or using this product, carefully read all the instructions in this manual and be sure to own all
the necessary material for the installation.
Scrupulously follow the instructions in this manual.
