Operating instructions
8300100087
VBH0355CTRLS
Translation of the original operating instructions
3. TECHNICAL DATA

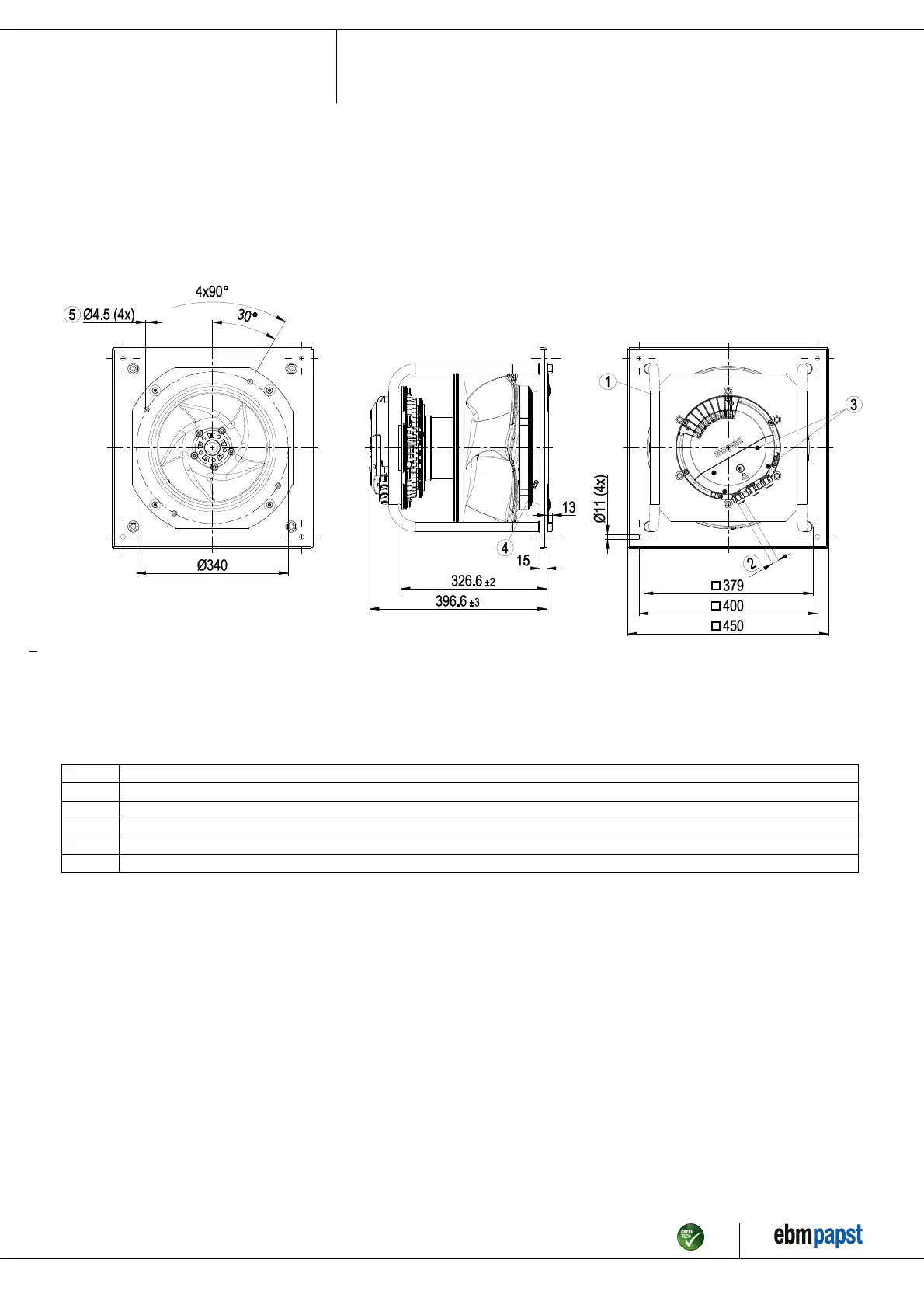

3.1 Product drawing
All dimensions in mm.
1 Installed position: shaft horizontal (install support struts only vertically as illustrated) or rotor on bottom; rotor on top on request
2 Cable diameter min. 4 mm, max. 10 mm, tightening torque 4 ± 0.6 Nm
(The tightening torque is designed for PVC cables. If the cable materials are different, the tightening torque may have to be adjusted)
3 Tightening torque 1.5 ± 0.2 Nm
4 Inlet ring with pressure tap (k-factor: 145)
5 Fastening holes for FlowGrid 00400-2-2957 (not included in scope of delivery) are provided and must be subsequently opened as required
Item no. 1170000642 · ENU · Change 238377 · Approved 2021-12-16 · Page 4 / 16
