Operating instructions
8300100093
VBS0630CTTPS
Translation of the original operating instructions
3. TECHNICAL DATA

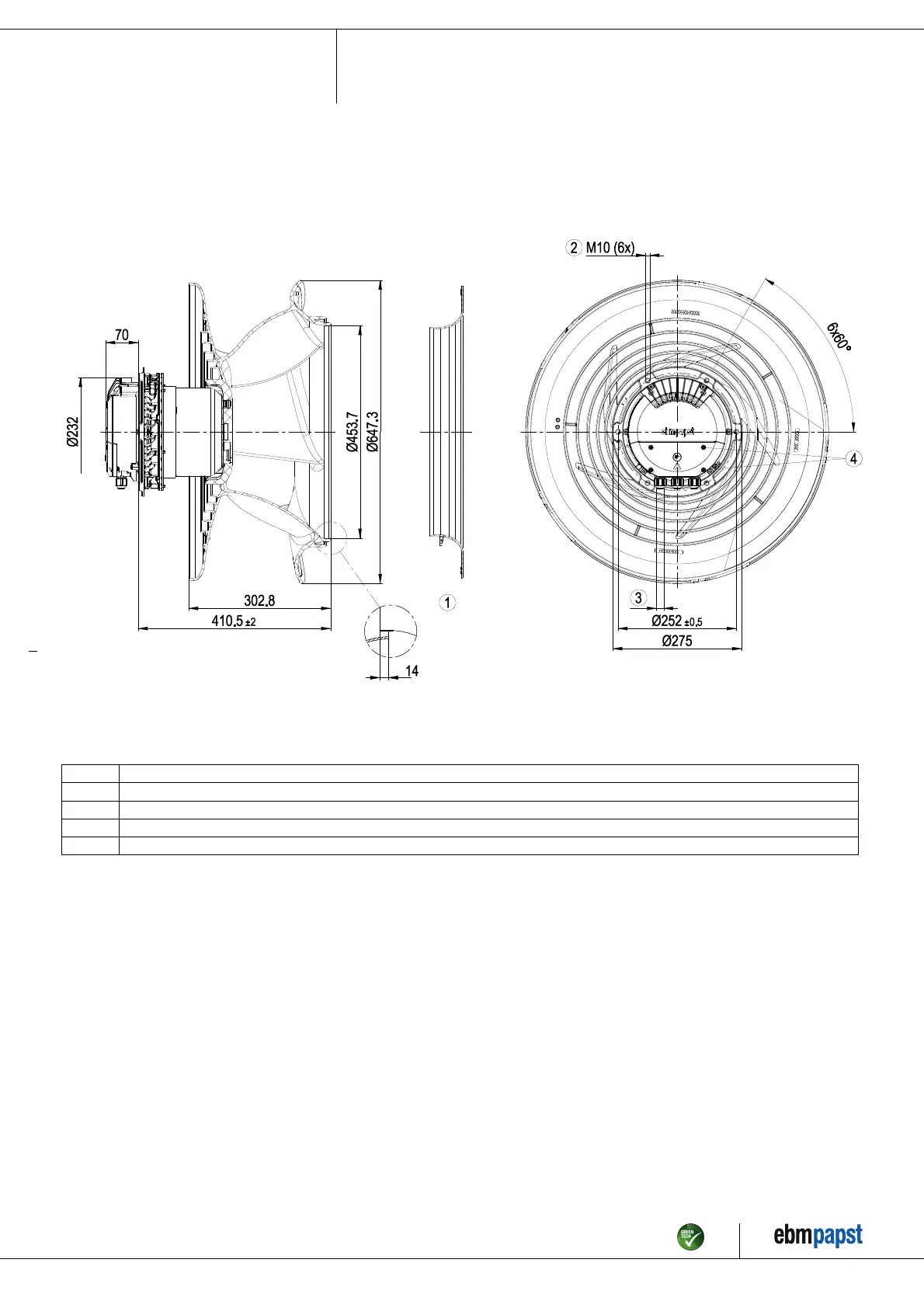

3.1 Product drawing
All dimensions in mm.
1 Accessory part: Inlet ring 8217102236 with pressure tap (k-factor: 463) (not included in scope of delivery)
2 Max. clearance for screw 20 mm
3 Cable diameter min. 4 mm, max. 10 mm, tightening torque 4 ± 0.6 Nm
(The tightening torque is designed for PVC cables. If the cable materials are different, the tightening torque may have to be adjusted)
4 Tightening torque 1.5 ± 0.2 Nm
Item no. 1170000590 · ENU · Change 262664 · Approved 2022-10-26 · Page 4 / 17
