WX2NB Manual v.1.0 Page 25 / 40
6.3.2.5. Entry time
Time after which alarm will be generated after delayed input had been armed and
partition to which delayed input belongs will not be disarmed.

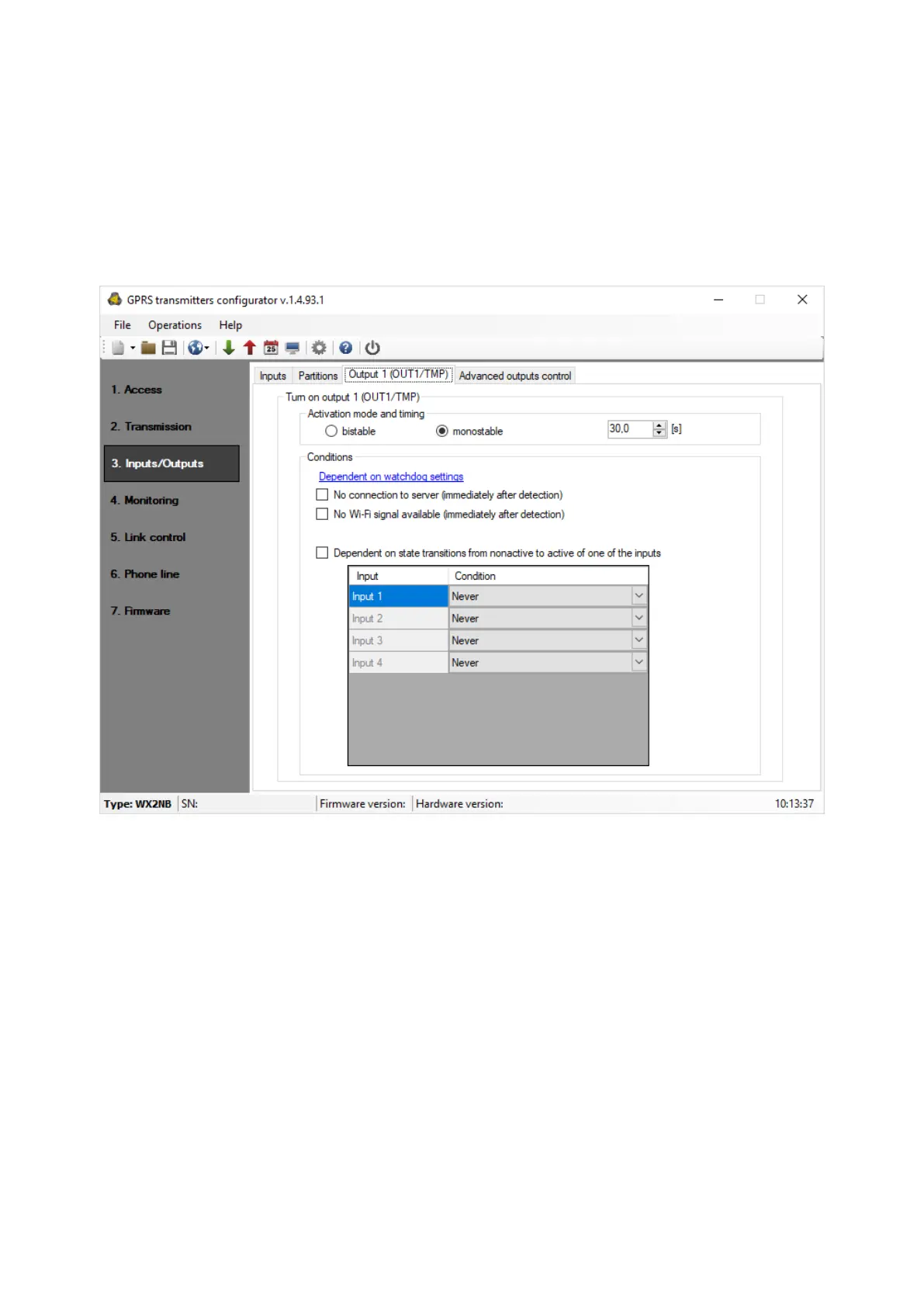

6.3.3. Output configuration
Tab „Output 1 (OUT1)” specify conditions of switch output.
6.3.3.1. Activation mode and timing
Thanks to this option you may choose output operation mode. There are two
operation modes available:
o Bistable – connection follows for indefinite time – up to the moment of
disconnection of power for module or remote command which switches
output off,
o Monostable – connection follows for time defined by user – every 100ms.
6.3.3.2. Conditions
Defines conditions for activating output. User can set following conditions:
o No connection to server (immediately after detection);
o No Wi-Fi signal (immediately after detection);
o Dependent on state transitions from non-active to active of one of the inputs.
Output can be also activated by internal watchdog, which can be configured in “Link
control” group.
