9. LED DIODES INDICATION

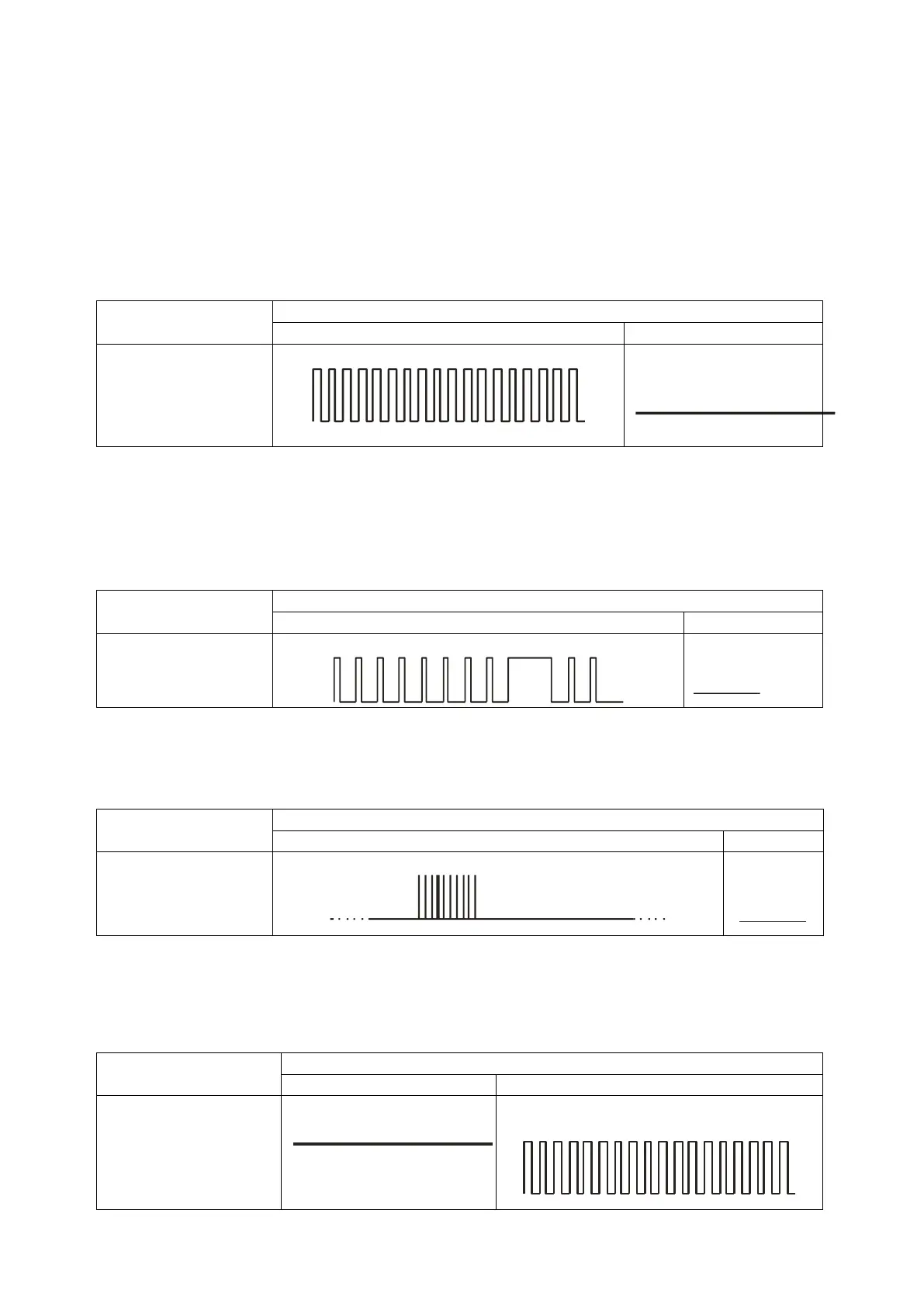

2 LED diodes mounted directly on printed circuit, are purposed to show actual
condition of the device.
9.1. LOGGING TO Wi-Fi NETWORK
After power supply the device turned on logging to Wi-Fi network.
9.2. Wi-Fi RANGE
Flickering of a green diode indicates Wi-Fi signal (1-8 flickers).
Device operation mode is signalled with a green diode on during 2 seconds once the
range was detected.
Wi-Fi range = 8
Wi-Fi mode
9.3. DATA TRANSMISSION
During data transmission a green diode indicates data transmitting.
9.4. PROGRAMMING
After detection of programming wire diodes indicate programming.
