Ebyte E104-BT11 User Manual

Chengdu Ebyte Electronic Technology Co., Ltd E104-BT11 User Manual
Copyright ©2012–2020，Chengdu Ebyte Electronic Technology Co., Ltd
2
1. Overview
1.1 Introduction
The E104-BT11 Bluetooth mesh ad hoc network module supports
the sig mesh V1.0 standard, and the single network theory can
accommodate up to 10,922 node devices. The device automatically
memorizes the network information after connecting to the network.
The mobile APP can proxy any node to access the network to realize
the remote control of the mesh network. It can facilitate the
realization of network broadcast or arbitrary fixed-point data
transparent transmission. It is very suitable for the application of
Internet of Things information collection, large-scale networking
communication scenarios, smart home and other applications.

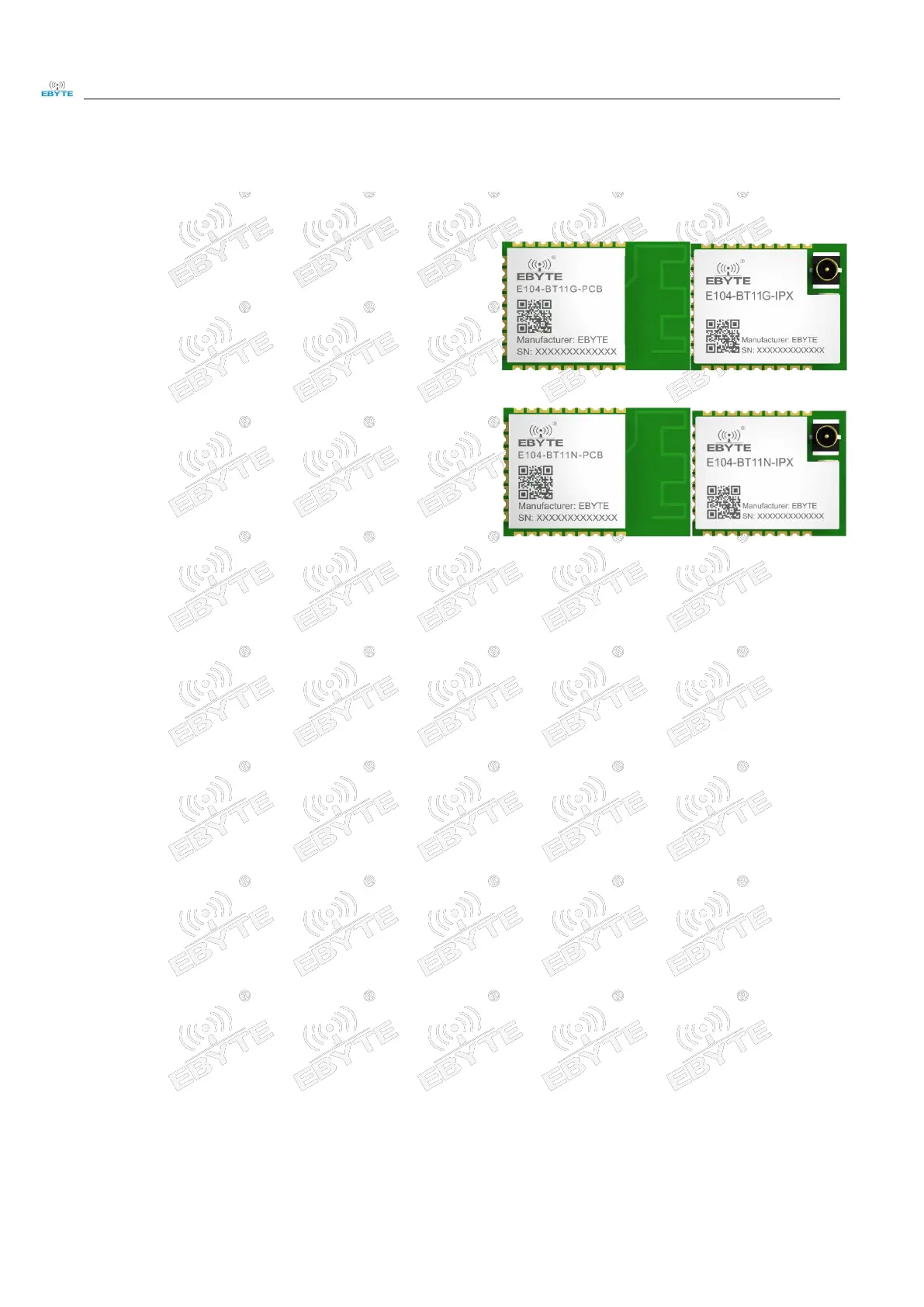

This manual applies to E104-BT11G-PC, E104-BT11N_PCB,
E104-BT11N-IPX. The firmware functions are the same.
1.2 Feature
 Maximum transmitting power is +20dbm；
 Serial baud rate is dynamically configurable；
 Wireless channel 37、38、39；
 No network core center（gateway）；
 Memory networking information, automatically connected to the network after power on；
 Enter internet in 1 second once powered on；
 Access to internet via cellphone APP；
 Maximum node devices for networking are up to 10922；
 Custom serial data transparent transmission model available；
 Self-defined low power consumption（Not standard low power consumption）；
 Serial wake up；
 Configuration over air；
 Not compatible with BT10.
1.3 Application
 Smart home；
 Building automation；
 Light control；
 Wireless sensor network；

Ebyte E104-BT11 Specifications

General

Brand	Ebyte
Model	E104-BT11
Category	Control Unit
Language	English
