Chengdu Ebyte Electronic Technology Co.,Ltd.
E18-DTU(Z27-ETH) User Manual
Copyright ©2023
，成都亿佰特电子科技有限公司

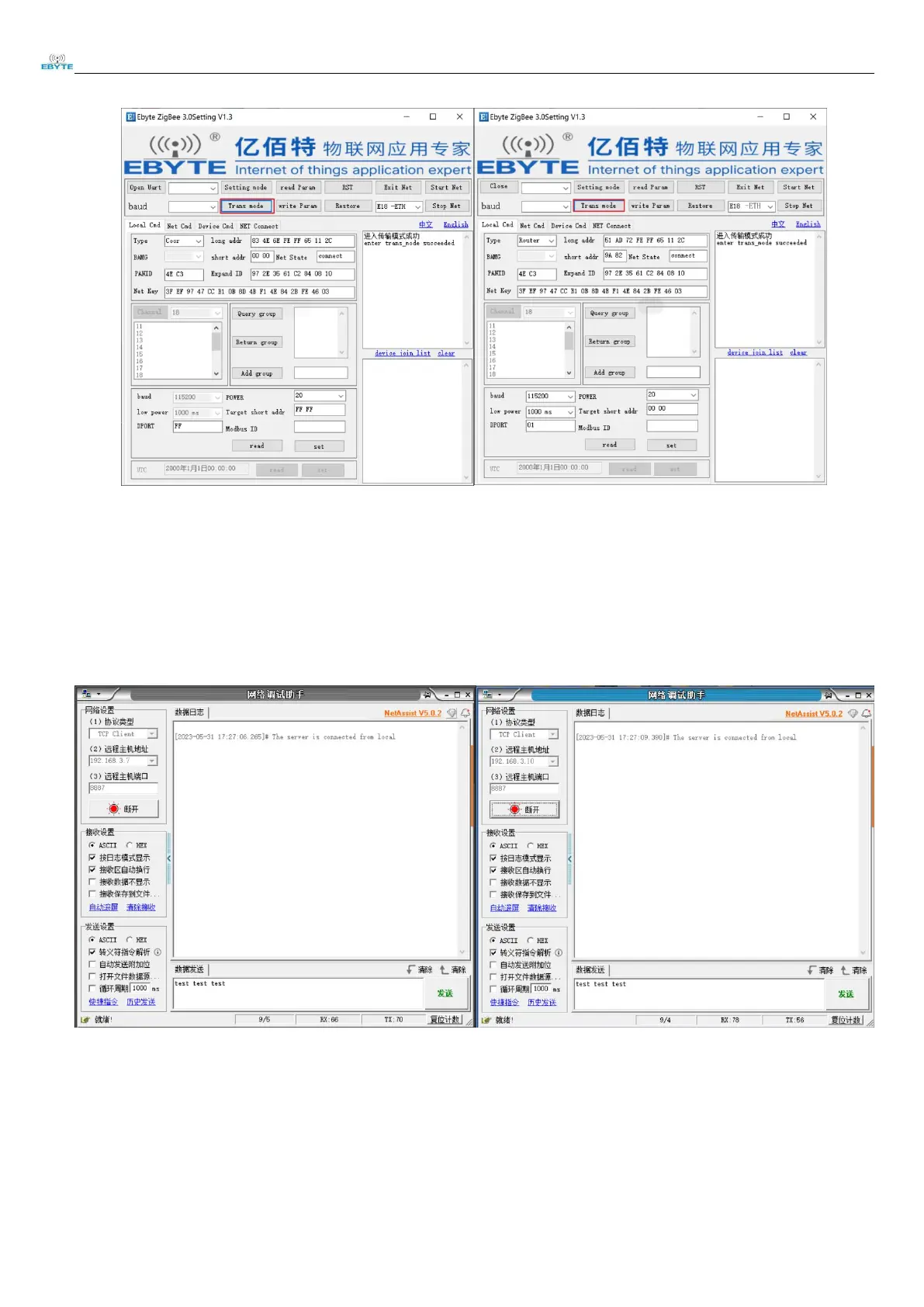

Coordinator device Router device
After entering the transparent transmission mode, close the host computer configuration software and open the serial port assistant. Enter
any data on either side, and the other will output the same data. The party sending data returns "OK" to indicate successful sending, and
"FAIL" or "ERRO" to indicate that the sending failed
。
（5）Open the Network Debugging Assistant, select TCP Client as the protocol type, enter the IP address, enter the remote host port,
and click Connect
。
Coordinator device Router device
（
6
）
Enter "Test Test Test" in the data sending window of the Network Debugging Assistant and click Send to see the data transmission
and reception of the two devices
。
