E18-DTU(Z27-ETH) User Manual
Copyright ©2023
，成都亿佰特电子科技有限公司
9

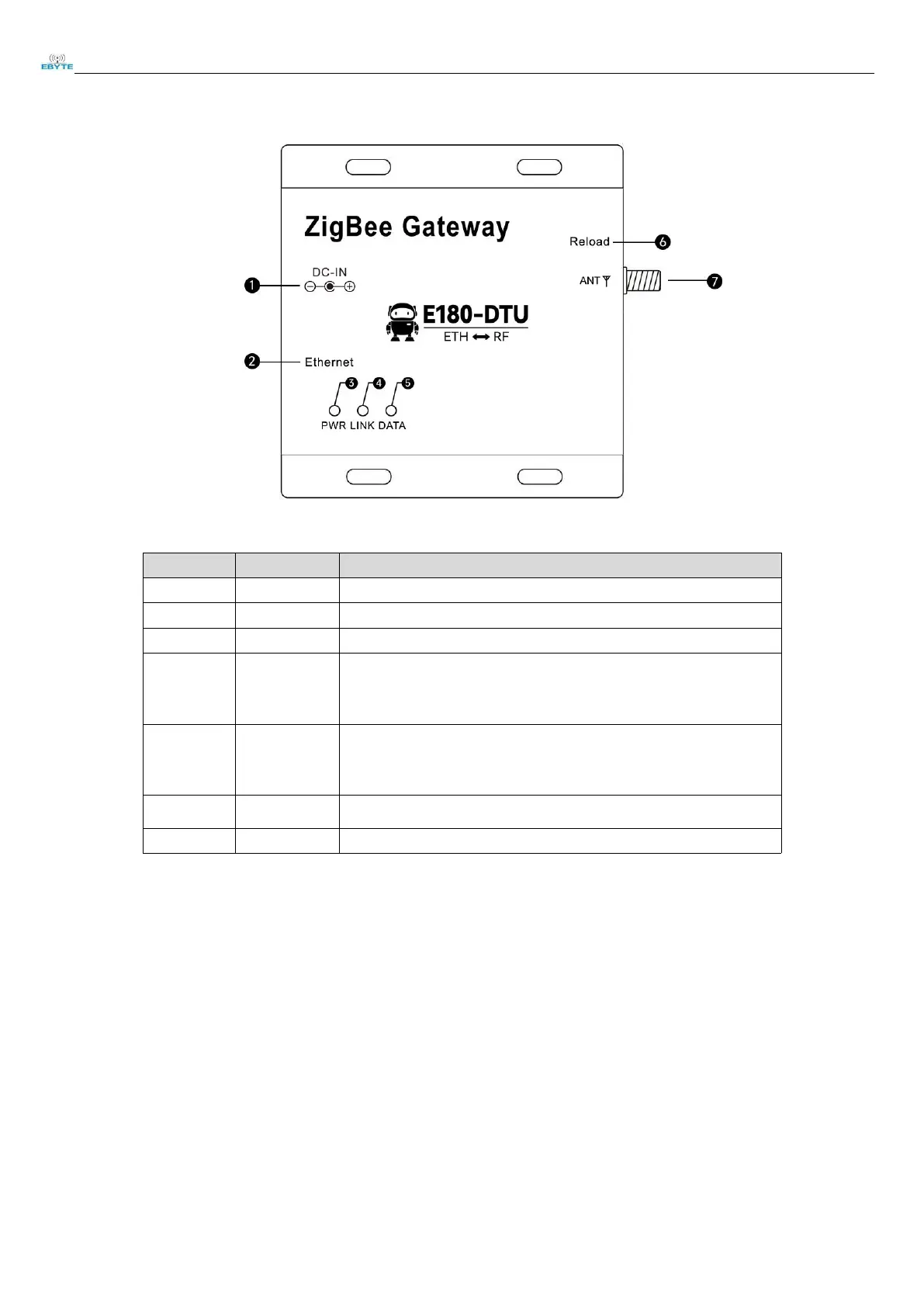

serial number
Identity name
Identity name
1
DC_IN
Power interface, support 8-28V DC power supply, 12V/24V recommended
2
ETHERNET
Ethernet interface, standard RJ45 interface, connection to devices or PCs
3
PWR
Power LED
4
LINK
The connection establishment indicator (green) flashes at 4Hz frequency for 3
seconds after power-up
；
Network not connected: Off；
Network connected: Solid on。
5
DATA
Serial port transceiver indicator (blue and green two-color indicator), 3
seconds after power-on flashing at 4Hz frequency；
The blue indicator flashes when there is data entry
；
The green LED flashes when there is data output
；
6
Reload
Long press 5-10S to restore to factory settings (only some Ethernet parameters
are restored)
7
ANT
SMA antenna interface
