Ebyte E22-400T30D User Manual

Chengdu Ebyte Electronic Technology Co., Ltd. E22-400T30D User Manual
Copyright ©2012–2018，Chengdu Ebyte Electronic Technology Co.,Ltd.
22
Solder Paste
Solder paste
Sn63/Pb37
Sn96.5/Ag3/Cu0.5
Preheat Temperature min
（
Tsmin
）
Min preheating temp.
100℃
150℃
Preheat temperature max (Tsmax)
Mx preheating temp.
150℃
200℃
Preheat Time (Tsmin to Tsmax)(ts)
Preheating time
60-120 sec
60-120 sec
Average ramp-up rate(Tsmax to Tp)
Average ramp-up rate
3℃/second max
3℃/second max
Liquidous Temperature (TL)
Liquid phase temp.
183℃
217℃
Time（tL）Maintained Above（TL）
Time below liquid phase line
60-90 sec
30-90 sec
Peak temperature
（
Tp
）
Peak temp.
220-235℃
230-250℃
Aveage ramp-down rate
（
Tp to Tsmax
）
Aveage ramp-down rate
6℃/second max
6℃/second max
Time 25℃ to peak temperature
Time to peak temperature for
25℃
max 6 minutes
max 8 minutes

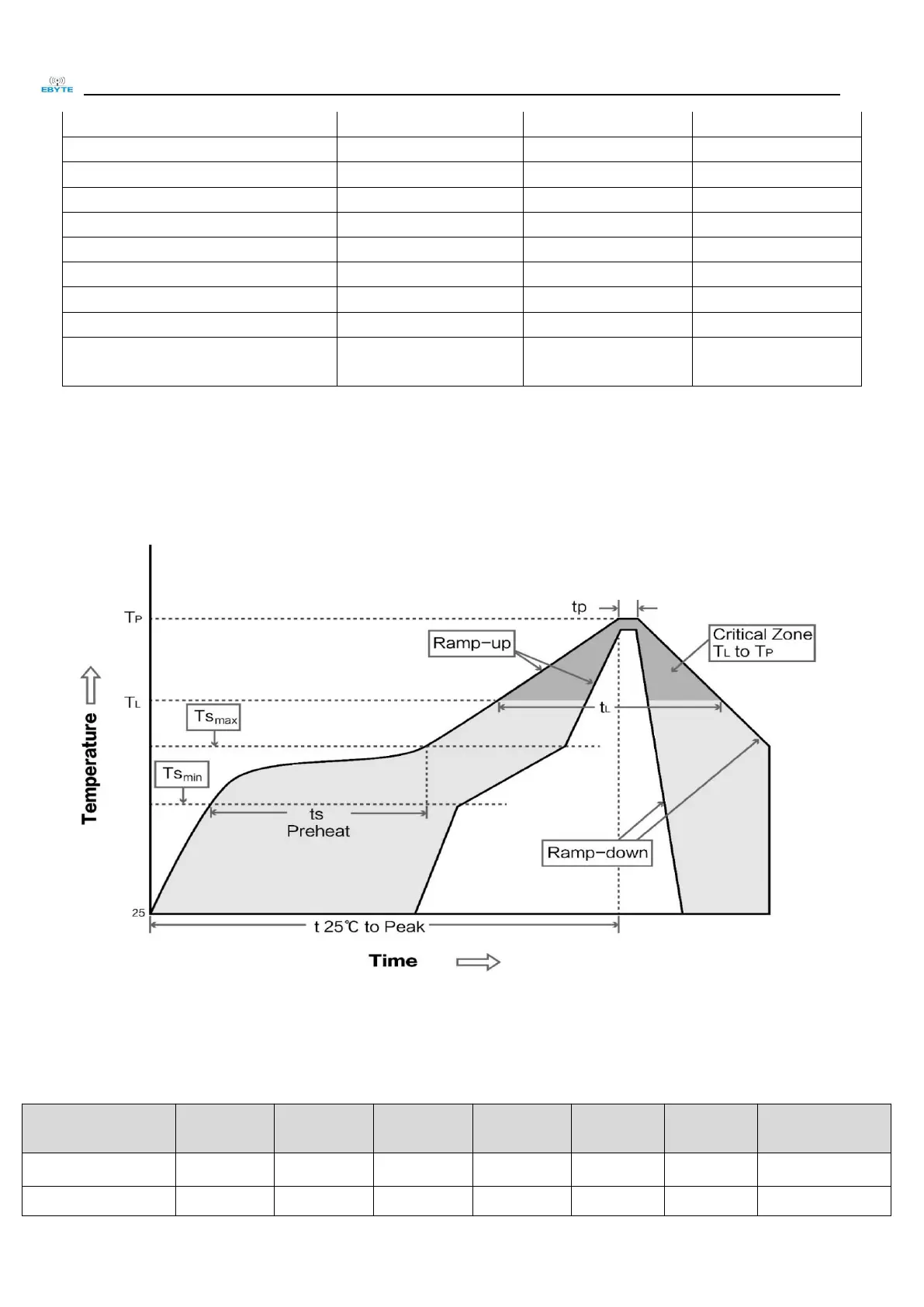

12.2 Reflow soldering curve
13 E22 series
Model No.
Core IC
Frequency
Hz
Tx power
dBm
Distance
km
Package
Size
mm
Interface
E22-900T22S
SX1262
868M 915M
22
7
SMD
16*26
UART
E22-230T22S
SX1262
230M
22
7
SMD
16*26
UART
