Ebyte E810-DTU User Manual

Chengdu Ebyte Electronic Technology Co,.Ltd E810-DTU User Manual
Copyright ©2012–2020, Chengdu Ebyte Electronic Technology Co,.Ltd
21
6 Quick instructions
6.1 Parameter setting instruction

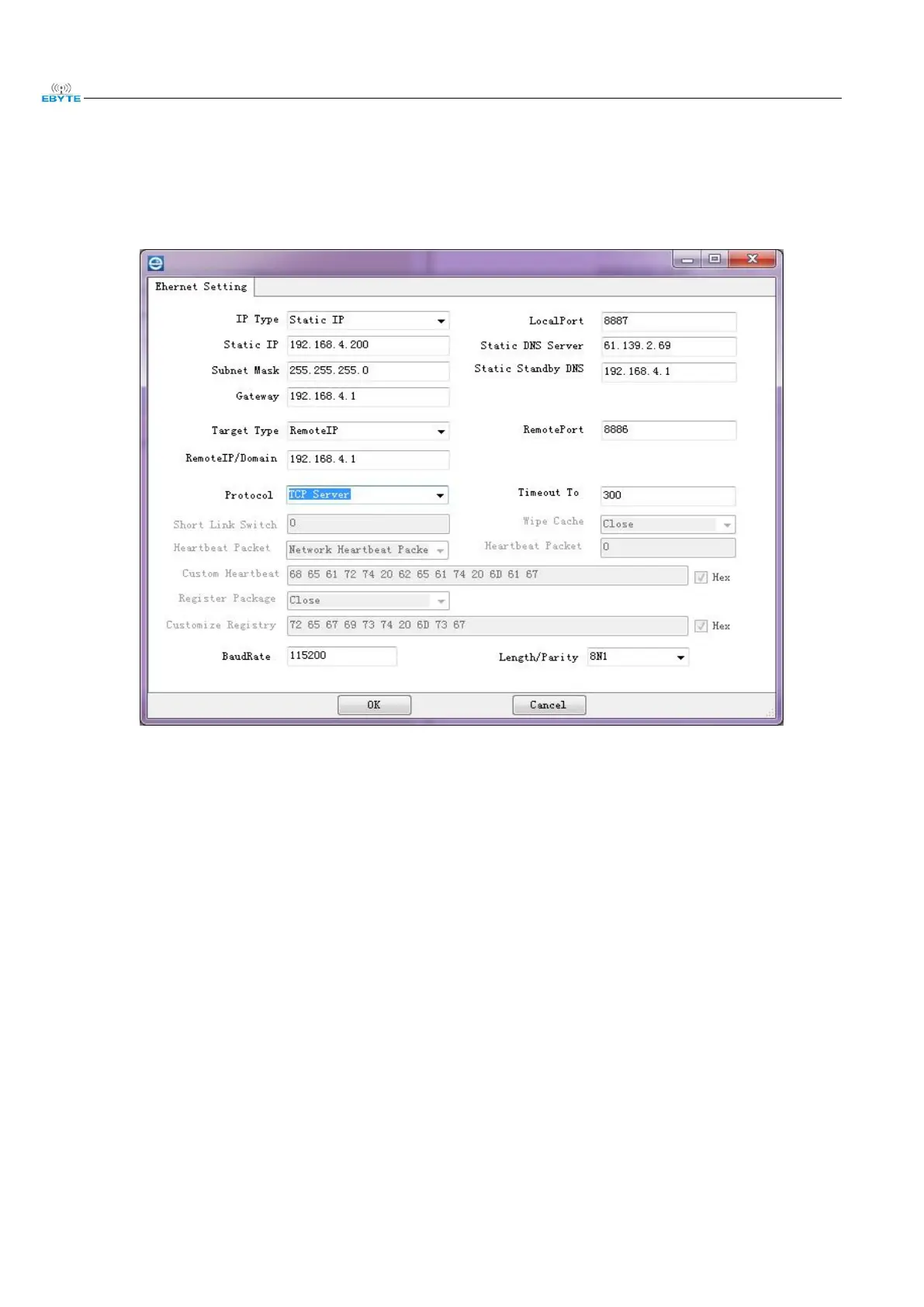

Figure 11 Parameter setting instructions
6.2 Socket instructions
6.2.1 TCP Server instructions
(1) Connect two E810-DTU(RS232)-V2.0 cable to the PC. Open the network configuration software and search for
the device. The searched device will be displayed in the device list. Double-click the device to be configured in the list,
enter the setting interface, and set the module to TCP Server mode, Set the module IP address to 192.168.4.101,
192.168.4.102, set the module's local port to 8886, set the RF parameters. After the setting is complete, click the OK
button, then restart the device and search again to see if the parameter modification was successful.

Ebyte E810-DTU Specifications

General

Brand	Ebyte
Model	E810-DTU
Category	Server
Language	English
