Ebyte E810-DTU User Manual

Chengdu Ebyte Electronic Technology Co,.Ltd E810-DTU User Manual
Copyright ©2012–2020, Chengdu Ebyte Electronic Technology Co,.Ltd
1

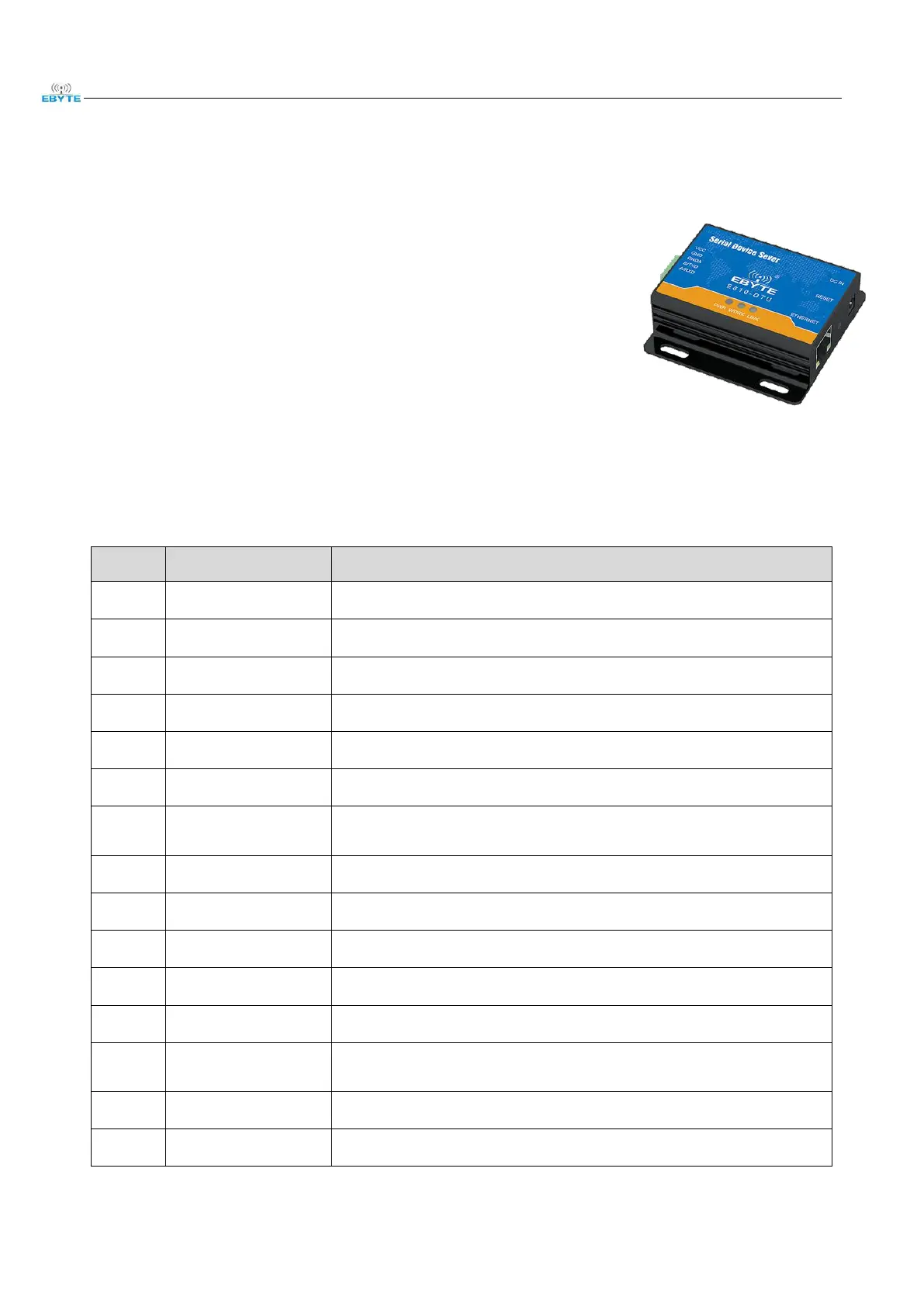

1. Introduction
E810-DTU(RS232)-V2.0 is a RS232 to Ethernet single serial port server. Realize
data transparent transmission between RJ45 network port and RS485/RS232..
The module is equipped with a M0+ series of 32-bit processors, fast and efficient.
It has an adaptive network speed (up to 100M full duplex), and has four
communication mechanisms: TCP Server, TCP Client, UDP Server, and UDP Client.
The E810-DTU(RS232)-V2.0 is easy to operate. The user can directly configure
the parameters of the module through the host computer to easily implement data
transmission.
Product specifications and features
No.
Specification
Description
1
Size
66 * 66 *21.6mm
2
Weight
79±1g
3
PCB process
2 layer，SMT, lead-free
4
Connector
RS485/RS232：1*5*3.81mm
5
Supply voltage
8~28V DC，Note：Higher than 28V will cause permanent damage
6
UART standard
1200~256000 bps
7
Serial communication
level
3.3V，If connected to 5V, level conversion is required
8
Ethernet specification
RJ45，10/100Mbps
9
Network protocol
IP、 TCP/UDP、 ARP、 ICMP、 IPV4
10
IP Acquisition
Static IP、 DHCP
11
DNS
Available
12
User configuration
PC software , AT command configuration、Web page configuration
13
Simple transparent
transmission
TCP Server 、TCP Client 、 UDP Server 、 UDP Client
14
TCP Server connection
Max. 6 channel of TCP connections
15
Software
RF Setting
