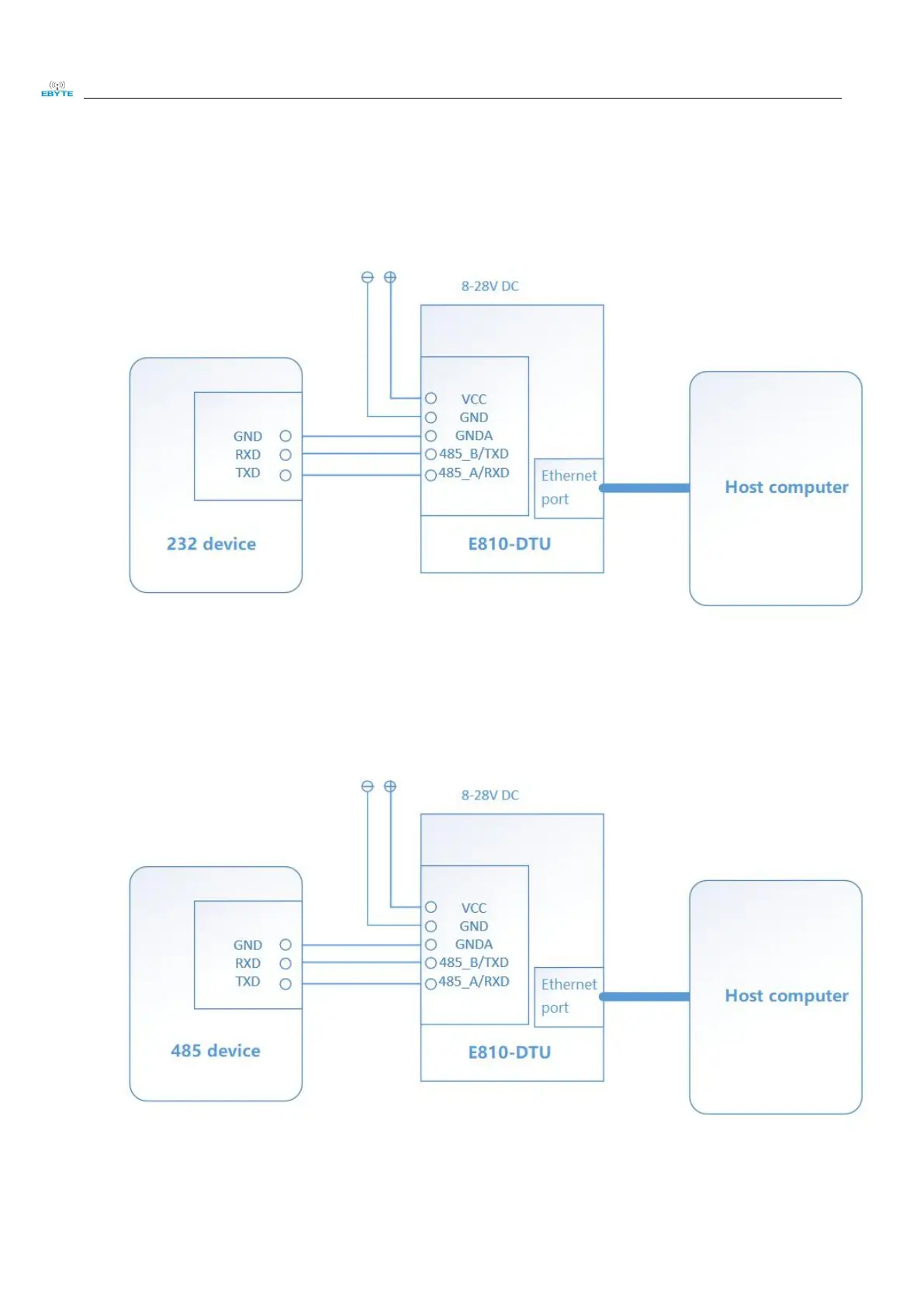

2.3 Connection method
2.3.1 RS232 connection
2.3.2 RS485 connection
In RS485 communication, it should be noted that A and B are matched first. If it is abnormal, 120R resistors should
be added between A and B lines.
