4.3 Rear Panel I/O Connectors

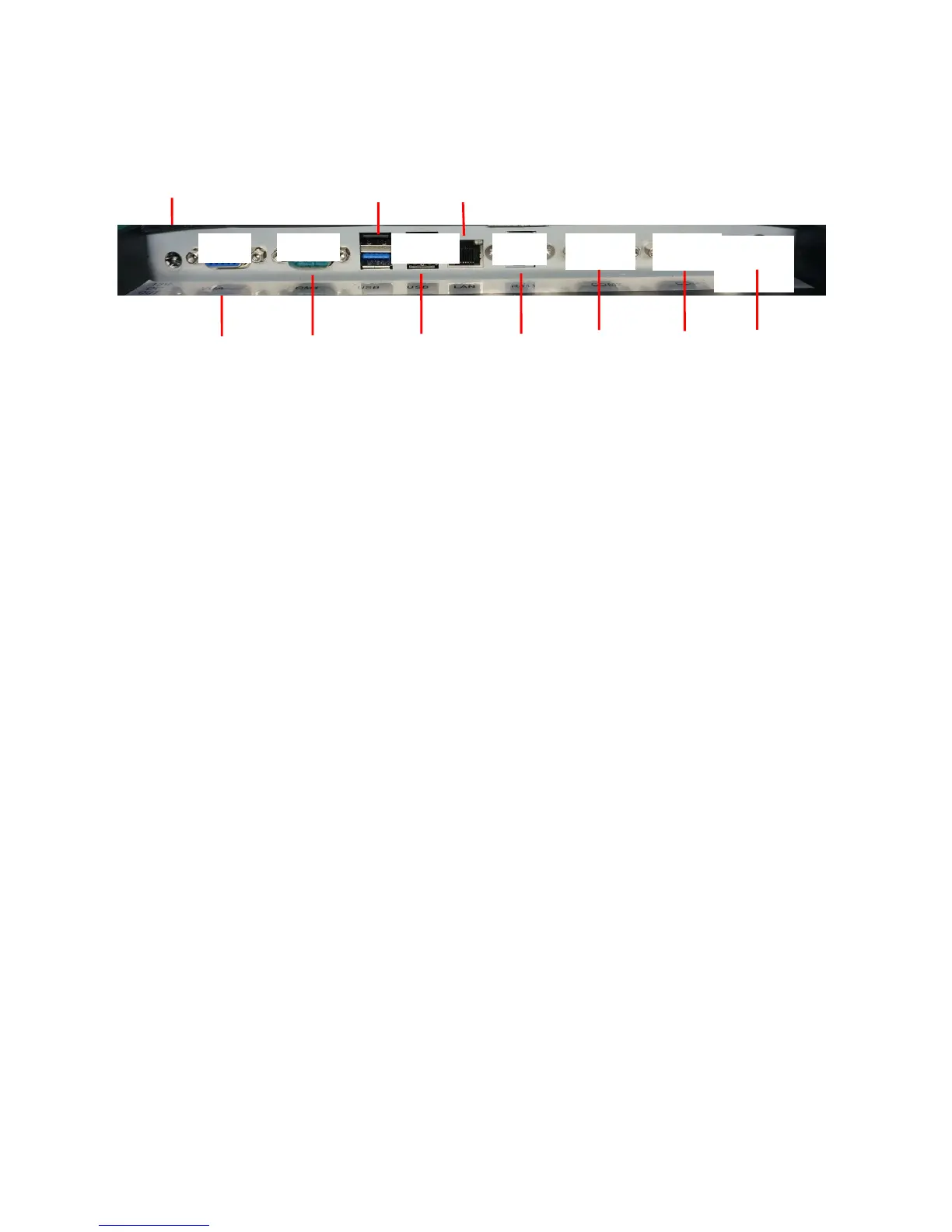

At the rear panel of the EC-VP-1100 is a row of external I/O device connectors. Detail as below:
 RJ11 - RJ11 interface (DK port) for connection of cash drawer
 VGA - VGA signal output for connection of external VGA monitor
 COM2 & 3 - For connection of serial devices
 USB2.0 - Connection to USB 2.0devices (compatible with USB 1.1 devices)
 USB3.0 - Connection to USB 3.0devices (compatible with USB 2.0 devices)
 LAN - RJ-45 Ethernet connection to Giga-bit LAN
 12V DC IN - Connection to 12V DC Power Supply
 12V DC OUT - Connection to the second display
Power
Output
VGA
COM1
USB*2
USB*2
LAN
RJ11
COM2
COM3
Power
Input
