Eccotemp EL5 - Construction and Parts Overview

ENGLISH
17
Support: Support.Eccotemp.com Shop Online: Eccotemp.com Store Locator: Eccotemp.com/locator
PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS
MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY
USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.
Decoration Board
Decoration Board
Display
Display
Display back cover
Display back cover
Front panel
Handle
Knob decoration ring
Knob decoration ring
Heat exchanger
Heat exchanger
Ignition controller
Ignition controller
Bracket of ignitor
Bracket of ignitor
Bracket of burner
Bracket of burner
Burner
Knob
Gas and water valve
Gas and water valve
Water outlet bracket
Water outlet bracket
Outlet water
Outlet water
temperature sensor
temperature sensor
Sensor pin
Sensor pin
Ignition pin
Ignition pin
Thermostat
Thermostat
Thermostat
Guide panel
Rain cap
Button panel
Battery box heat shield
Battery box heat shield
Tilt switch heat shield
Tilt switch heat shield
Tilt switch
Battery box
O-ring
O-ring
O-ring

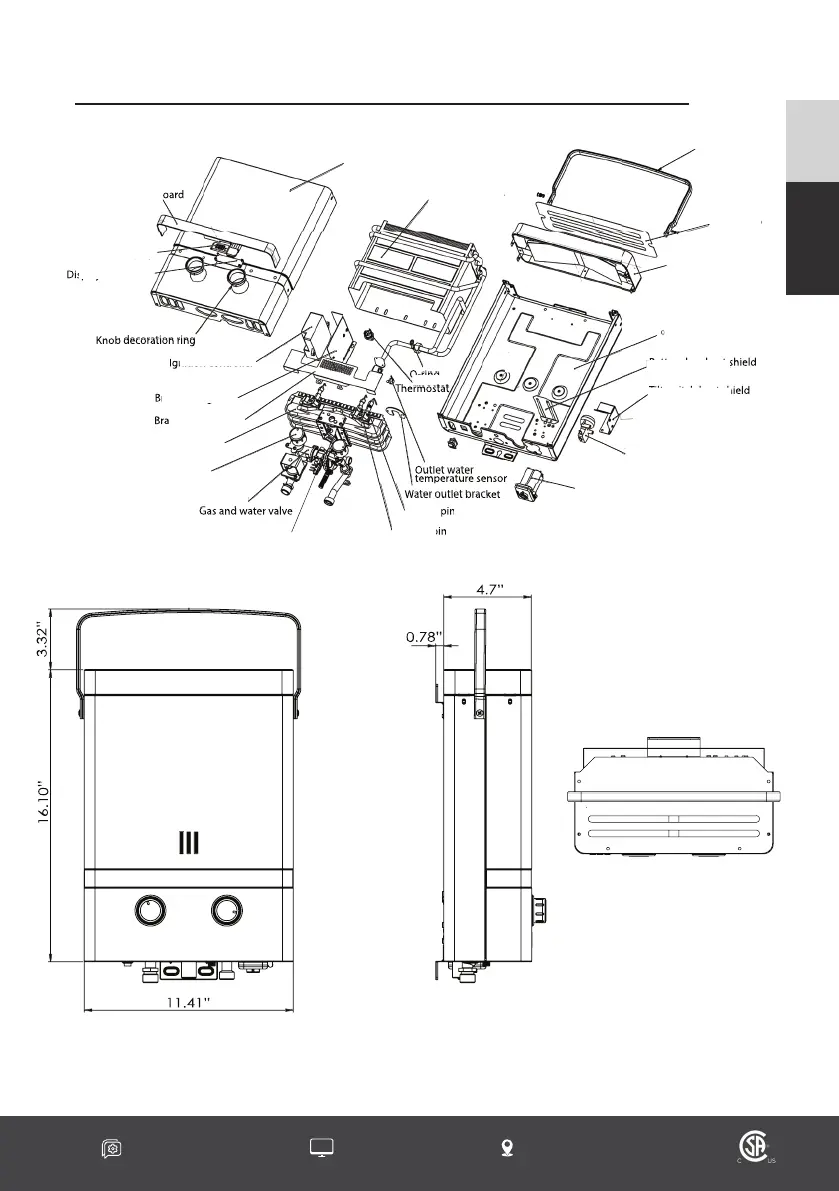

Construction and Parts of the EL5
Front
Side
TROUBLESHOOTING
Micro Switch
Weight: 11.2 lbs.
11.8”
7.12”
Top
