Eccotemp EM-2.5 - Schematic & Parts List

16
Product Support: Eccotemp.com/help-desk Shop Online: Eccotemp.com/products Store Locator: Eccotemp.com/locator
17
Phone: 866-356-1992 | Email: Support@eccotemp.com Address: 315 - A Industrial RD Summerville, SC 29483

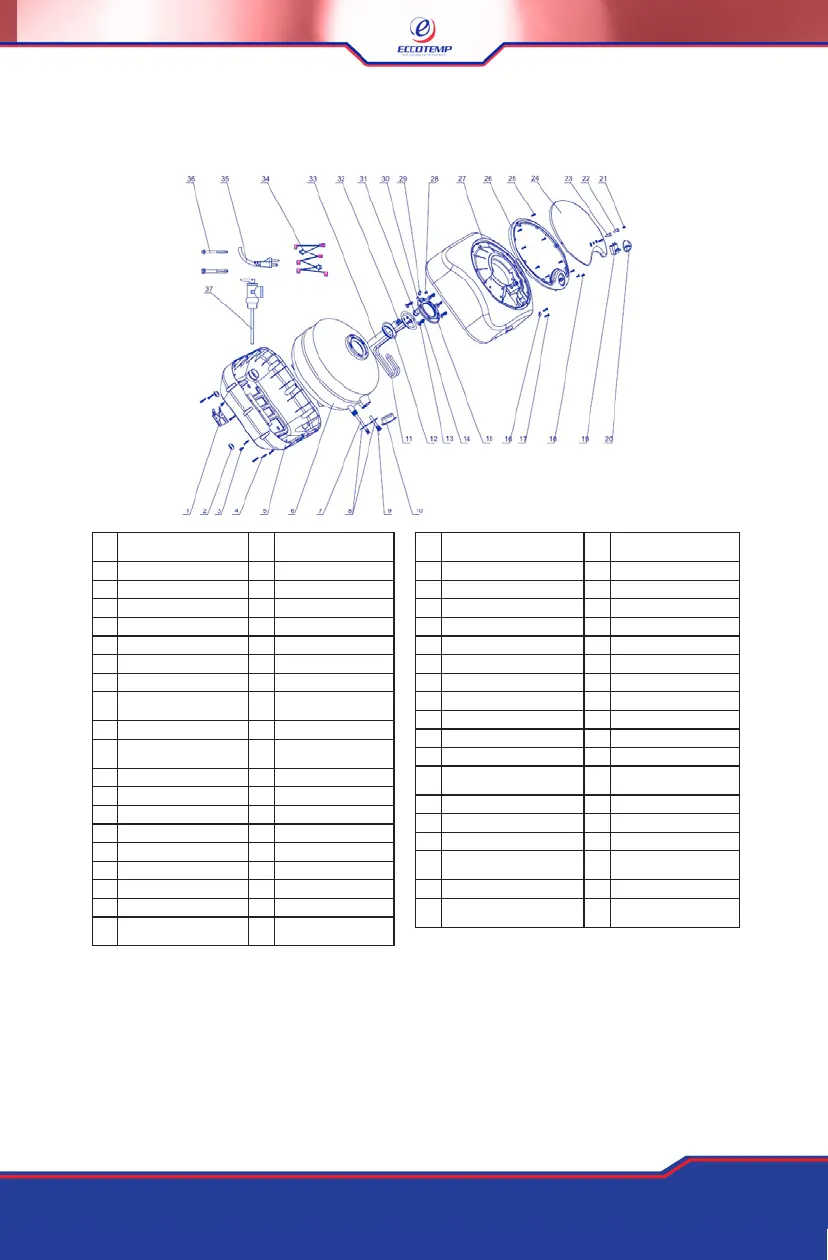

Schematic Dissembly
No. Name of parts Qty Materials, Size & certicate
approved
1 Mounting bracket 1 5PCC
2 foaming plug 2 pp
3 externel 6 angles bolt 2 ST5.5x15
4 screw 12 ST4x30
5 rear cover 1 ABSFR500
6 inner tank components 1 SPCC, enamel
7 inlet pipe components 1 SUS 304
8 blue/red liner bushing of inlet/
outlest pipe (a set)
1 PET, NPT 1/2
9 outlet pipe components 1 SUS 304
10 yellow liner bushing for T&P
valve pipe
1 NPT 3/4
11 heating element 1 1440W, 120V, UL certicate
12 sealing ring of heating element 1 slica gel, UL certicate
13 square head bolt 5 M8X26
14 bolt M8 5 M8
15 ange cover 1 spcc
16 lock down cable clamp 1 ABSFR500
17 screw 3 ST3,5x18
18 screw 2 M4x10
19 thermostat 1 CQ,C/VDE/CE/UL certicate,
60 C,20A, RHOS
No. Name of parts Qty Materials, Size & certicate
approved
20 temperature adjusting knob 1 ABSFR500
21 screw cover 1 ABSFR, 500
22 green lamp 1 UL certicate
23 red lamp 1 UL certicate
24 maintainence cover 1 ABSFR, 500
25 screw 2 ST3, 5x16
26 control panel 1 ABSFR, 500
27 Front cover 1 ABSFR, 500
28 screw 2 M4x8
29 L support 1 SPCC, galvanize
30 screw 1 M4x12, galvanize
31 temperature limiter 1 CQC/VDE/CE/UL, 85 C 20A,
RHOS
32 bolt M6 1 M6, stainless steel
33 Magnesium Anode 1 Mg
34 inner wire components 1 UL certicate, 16AWG
35 power cable 1 UL certicate, 3’16AWG,
1200mm, ROHS
36 expansion bolt 2 M6x70, galvanize
37 temperature pressure valve 1 UL certicate, NPT 3/4, 1.04
MPa, 99 C
