Eccotemp EM-2.5 - Schematic Disassembly & Parts List

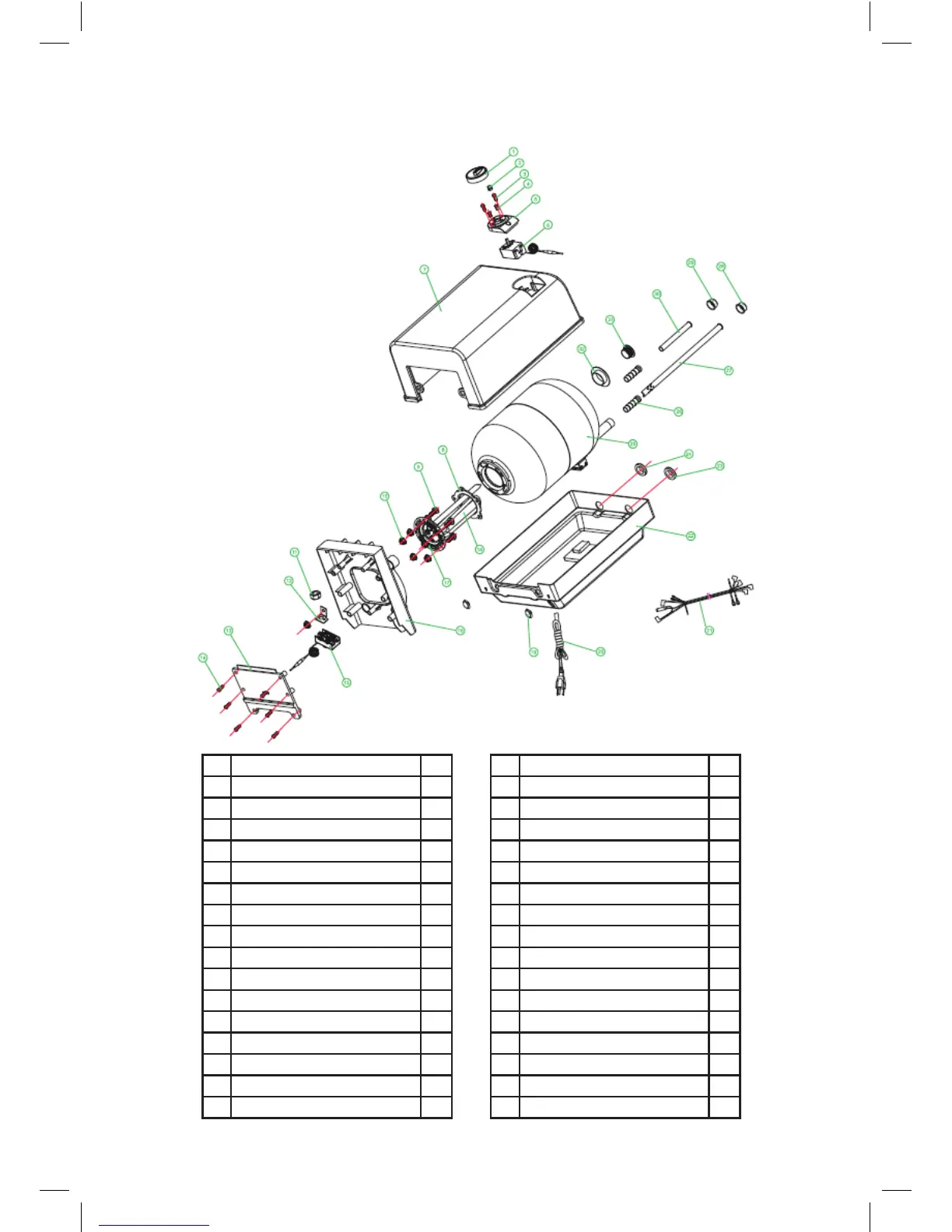

Schematic & Parts EM-2.5
No. Name of Part Qty.
1 Thermostat Button 1
2 Indicate Cover Light 1
3 Cross Self-Tapping Screw - 2.9x16 2
4 Cross Recessed Countersunk Screw - M4x6 2
5 Button Base 1
6 Thermostat Porcelain Base 1
7 Front Shell 1
8 Heating Element Seal Circle 1
9 T Shape Screw - M6x20 5
10 Hexagon Flange Nut +M6 6
11 Nut - M8 1
12 Connect Plate 1
13 Back Shell 1
14 Cross Self-Tapping Screw - 2.9x10 6
15 Thermal Cut-off 1
16 Insulate Circle 1
No. Name of Part Qty.
17 Heating Element Component 1
18 Magnesium Anode 1
19 Supporter 4
20 Power Cord 1
21 Inner Connect Wire 1
22 Bottom Cover of Body 1
23 Blue Pipe Circle 1
24 Red Pipe Circle 1
25 Tank Component 1
26 Liner Pipe 2
27 Stainless Steel Pipe with Hole 1
28 Blue Cover 1
29 Red Cover 1
30 Stainless Steel Pipe 1
31 T&P Valve Cover 1
32 Yellow Cover 1
