PLEASE NOTE: SH12
-
A IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECTED TO CHANGE WITHOUT NOTICE.
PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR MORE INFORMATION.
English

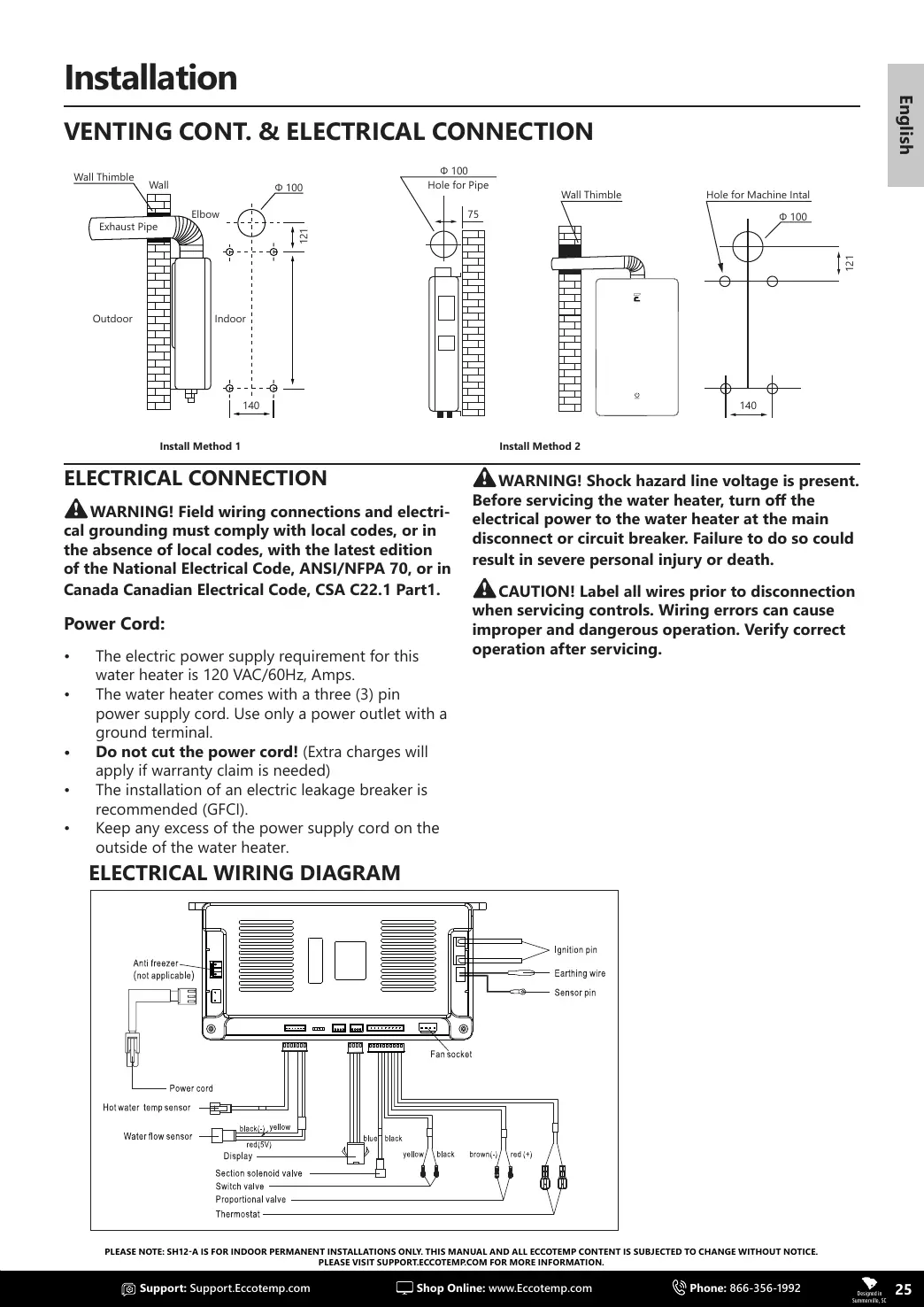

Installation
VENTING CONT. & ELECTRICAL CONNECTION
Wall Thimble
Wall
Elbow
Φ 100
121
Indoor
Outdoor
140
Exhaust Pipe
Install Method 1 Install Method 2
Φ 100
75
Hole for Pipe
Wall Thimble Hole for Machine Intal
Φ 100
140
121
ELECTRICAL CONNECTION
WARNING! Field wiring connections and electri-
cal grounding must comply with local codes, or in
the absence of local codes, with the latest edition
of the National Electrical Code, ANSI/NFPA 70, or in
Canada Canadian Electrical Code, CSA C22.1 Part1.
Power Cord:
• The electric power supply requirement for this
water heater is 120 VAC/60Hz, Amps.
• The water heater comes with a three (3) pin
power supply cord. Use only a power outlet with a
ground terminal.
• Do not cut the power cord! (Extra charges will
apply if warranty claim is needed)
• The installation of an electric leakage breaker is
recommended (GFCI).
• Keep any excess of the power supply cord on the
outside of the water heater.
WARNING! Shock hazard line voltage is present.
Before servicing the water heater, turn o the
electrical power to the water heater at the main
disconnect or circuit breaker. Failure to do so could
result in severe personal injury or death.
CAUTION! Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify correct
operation after servicing.
ELECTRICAL WIRING DIAGRAM
!
!
