ECD T80 - HYDRA-DS to LQ800 Controller; T80 Transmitter Wiring

HYDRA-DS NO
3
-N Page 20
2.4.2 HYDRA-DS TO LQ800 CONTROLLER
2.4.3 T80 TRANSMITTER WIRING
Electrical wiring should only be conducted by qualified personnel. See the following T80 wiring diagrams.

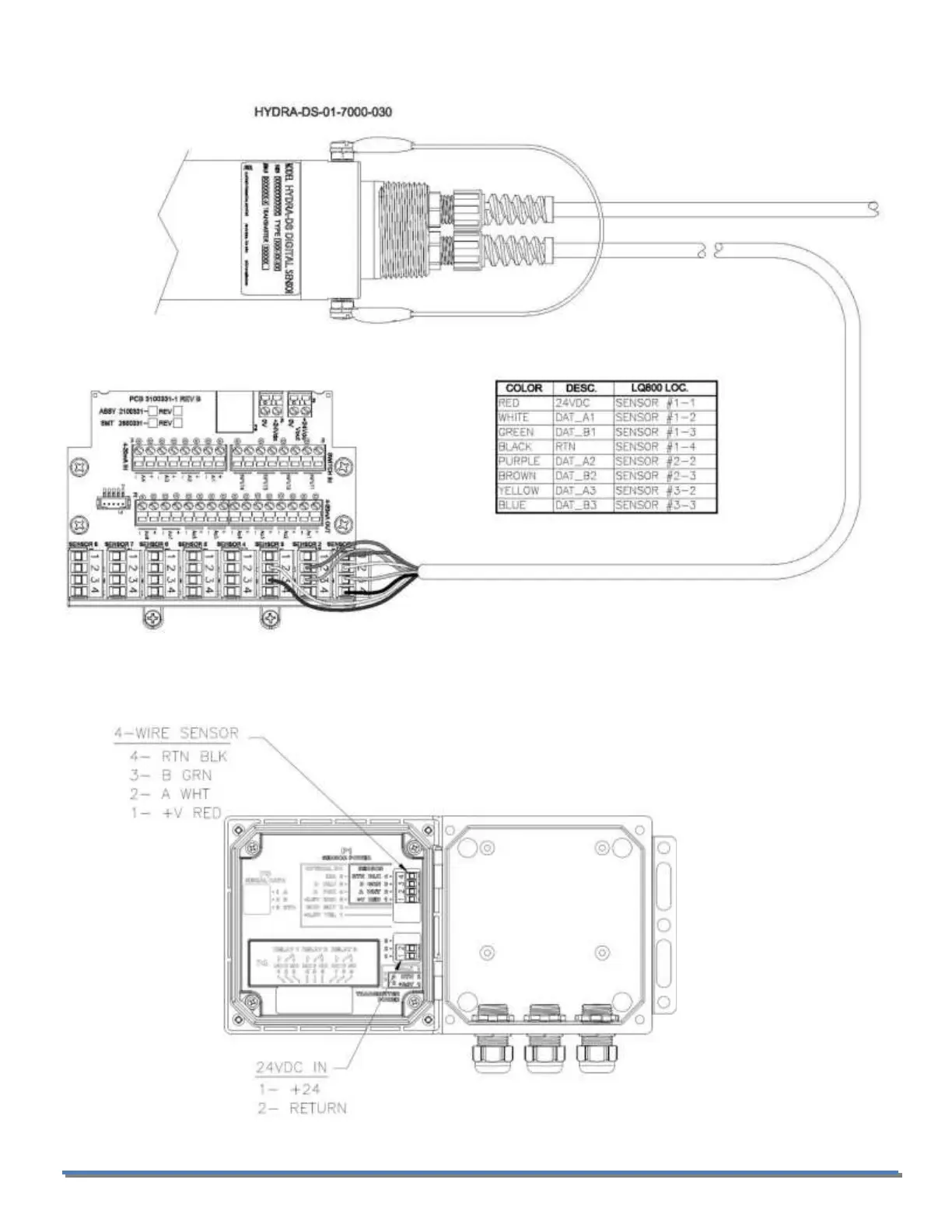

Figure 2.4.3.1 - Loop Powered Transmitter
