Press F7 “More” to enter the next page.

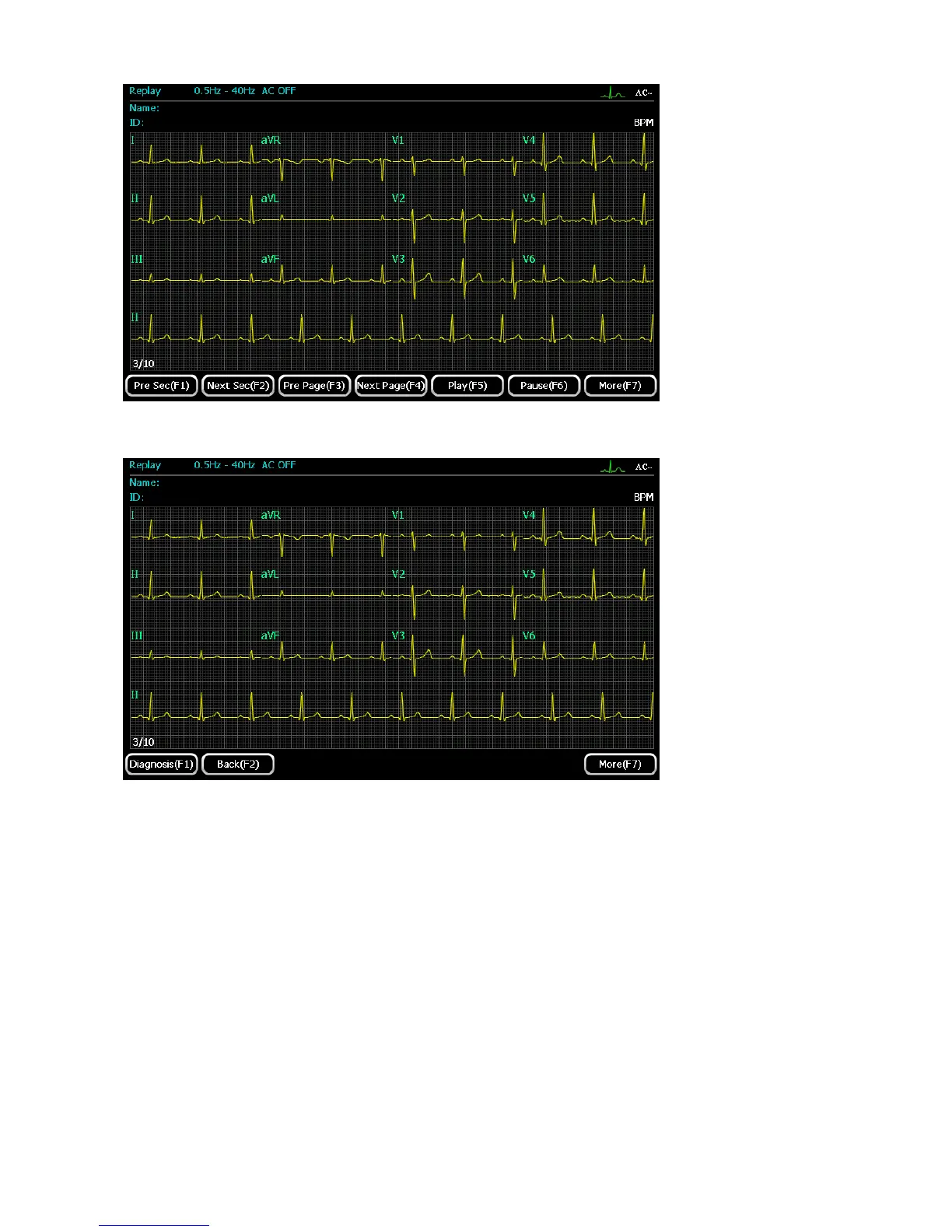

It is able to freeze up to 120 seconds ECG waveform, 10 seconds ECG waveform at least. (The figure showed
above is the data freezing for 10 seconds; ECG waveform is displayed from the 3
rd
second.)
Pre Sec: Display from previous second.
Next Sec: Display from next second.
Pre Page: Display from previous page.
Next Page: Display from next page.
Play: Play from the current displayed waveform.
Pause: Pause in the play process.
Diagnosis: Make diagnosis for the 10 seconds ECG waveform current displayed.
Press【F7】in the first page of main interface, the second page will be shown as the following figure on the LCD
screen:
