BELT ADJUSTMENT
1. Swerving Right
a. Remove the safety key and turn the power OFF.
b. Turn the right adjusting bolt 1/4 clockwise. Re-insert the
safety key and turn the power ON.
c. Run the treadmill (34 mph/68 kph) and observe.
d. Repeat above steps a–c until belt is centered.
2. Swerving Left
a. Remove the safety key and turn the power OFF.
b. Turn the left adjusting bolt 1/4 clockwise. Re-insert the safety
key and turn the power ON.
c. Run the treadmill (34 mph/68 kph) and observe.
d. Repeat above steps a–c until belt is centered.
3. Tightening Belt
a. Remove the safety key and turn the power OFF.
b. Turn the left/right adjusting bolts 1/4 turn clockwise.
Re-insert the safety key and turn the power ON.
c. Run the treadmill (34 mph/68 kph) and stand on the belt to
confirm the tightness.
d. Repeat above steps a–c until the belt is moderately tight.

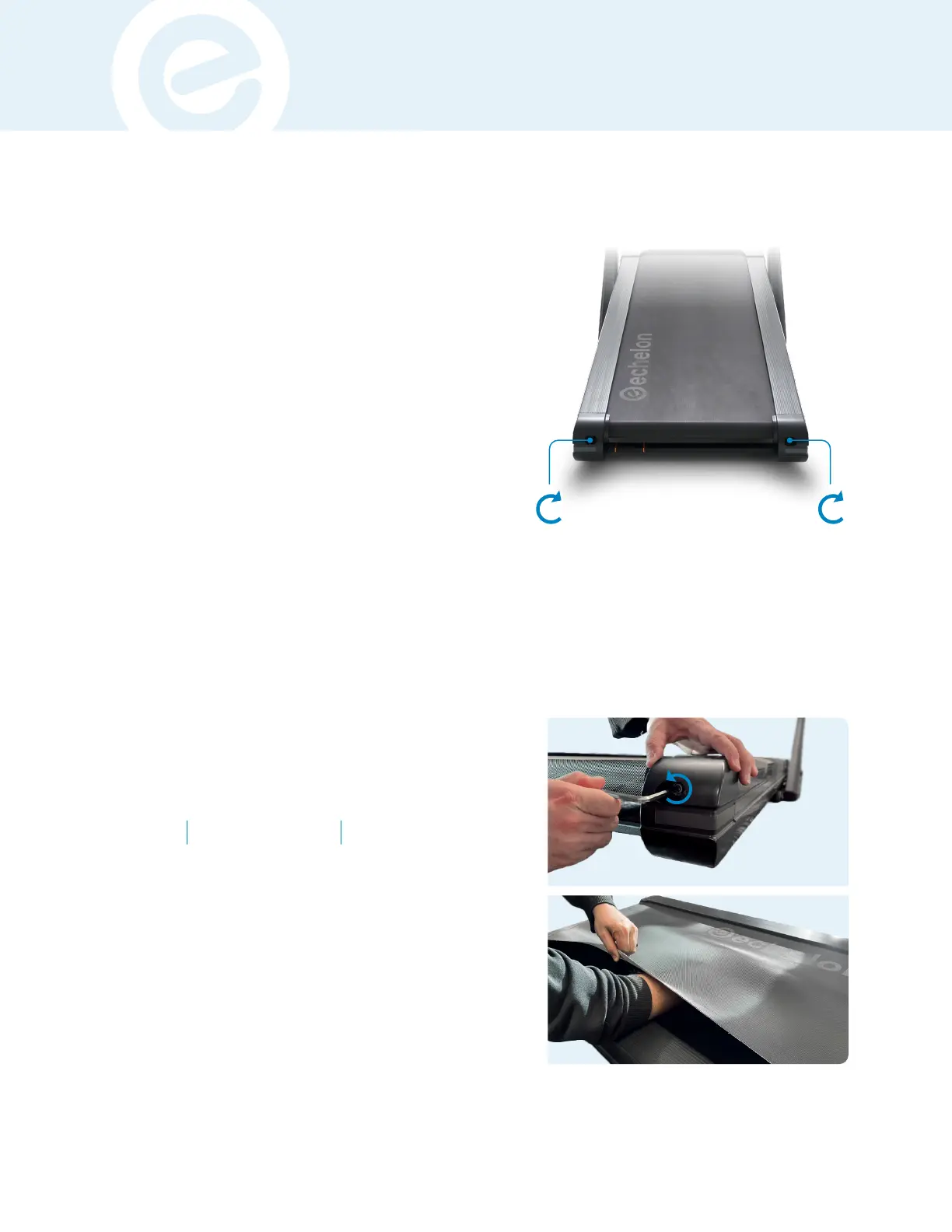

Left Adjusting Bolt Right Adjusting Bolt
BELT LUBRICATION
1. Power off the treadmill and unplug the power cord.
2. Using Allen Wrench (B), loosen rear adjusting bolts with 510
counter-clockwise turns.
3. Lift the running belt and apply silicone oil in a zigzag pattern across the
entire running deck surface. Use 1/2 bottle of silicone oil. DO NOT apply
the silicone oil on top of the running belt.
4. Lay the running belt flat and tighten the rear adjusting bolts clockwise the
same number of times loosened from step 2.
5. After the lubricant is applied, plug in the power cord, insert the safety key,
and turn power the treadmill on.
Light Usage
Once Every 60 Days
Medium Usage
Once Every 45 Days
Heavy Usage
Once Every 30 Days
The Echelon Stride-6 requires lubrication as a part of routine
maintenance according to the recommended schedule below.
• Keeping the deck lubricated at the recommended intervals above ensures
the longest life possible for your treadmill.
• Failure to lubricate the deck at regular intervals may void the warranty.
• It is recommended every other month to reach between the belt and deck
to verify there is lubrication present every other month.
