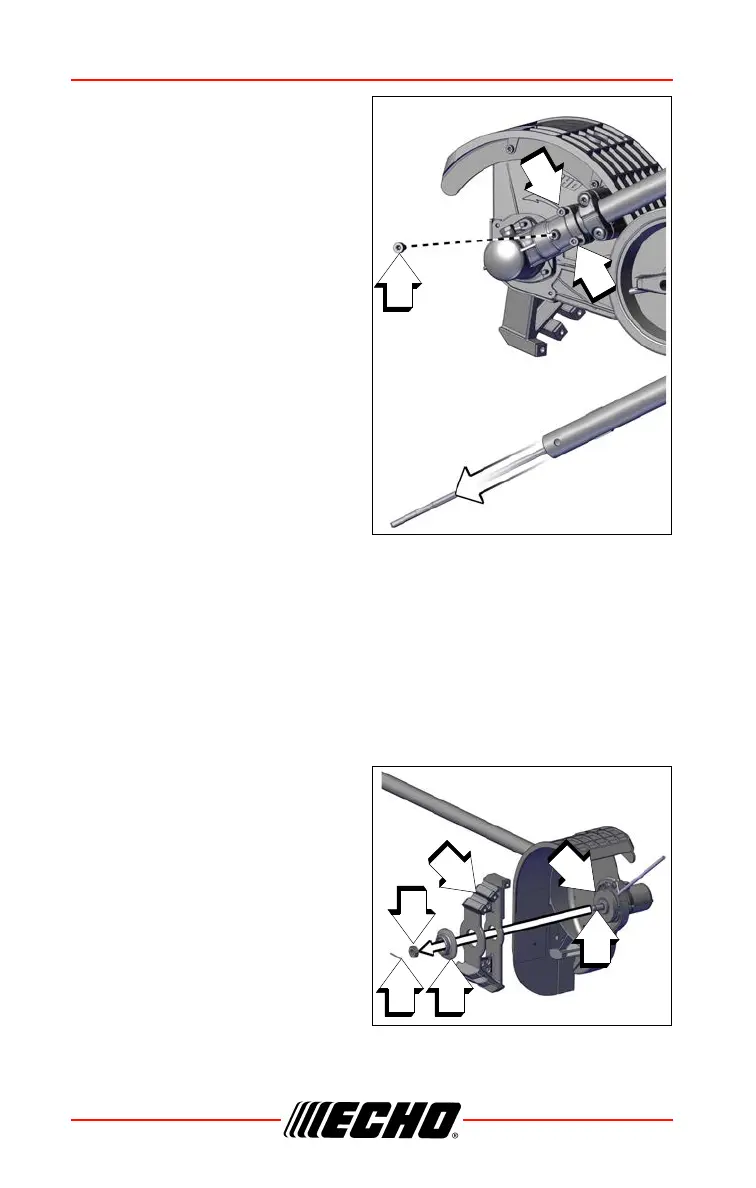

1. Loosen two (2) screws (A) and
remove center locating screw
(B). Pull gear box and shield
from drive shaft housing.
2. Pull flexible cable from the drive
shaft housing, wipe clean and
re-coat with a thin coating (15
ml [½ oz.]) of grease.
3. Slide the flexible cable back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and
shield assembly.
5. Tighten screws securely.
Blade Replacement/Lubrication
Level 1.
Note: Grease gear case every 15-25 hours of use. Replace blade
when carbide tips have worn away.
1. Shut engine off. Disconnect spark plug lead from spark plug.
2. Remove split pin (A).
3. Rotate blade until holes in inner
blade adapter (B) and gear box
align. Insert locking tool to lock
PTO shaft (C).
Note: Blade nut (D) is left hand
thread.
4. Remove blade left-hand
threaded nut (D) in a clockwise
direction using T-wrench.
Remove outer fixing plate (E),
blade (F) and inner fixing plate
(B).
5. Clean all loose debris from gear box.
Parts Required: Blade, new split pin, lithium based grease
