Echo CS-260TES Service Manual

SERVICE INFORMATION
CS-260TES
CS-270WES
7
1.35
0.4
1.65
1.5
ba
26002600
Ign
itio
n
A
ir G
ap
G
au
ge
#
.014
=
.35m
m
P
/N
91
004
9
1
01
9
0
0.4
5
0
5
0
0
.8
0
.8
1
.2
1
.2
1
.
1
.
M
P
a
M
P
a
0

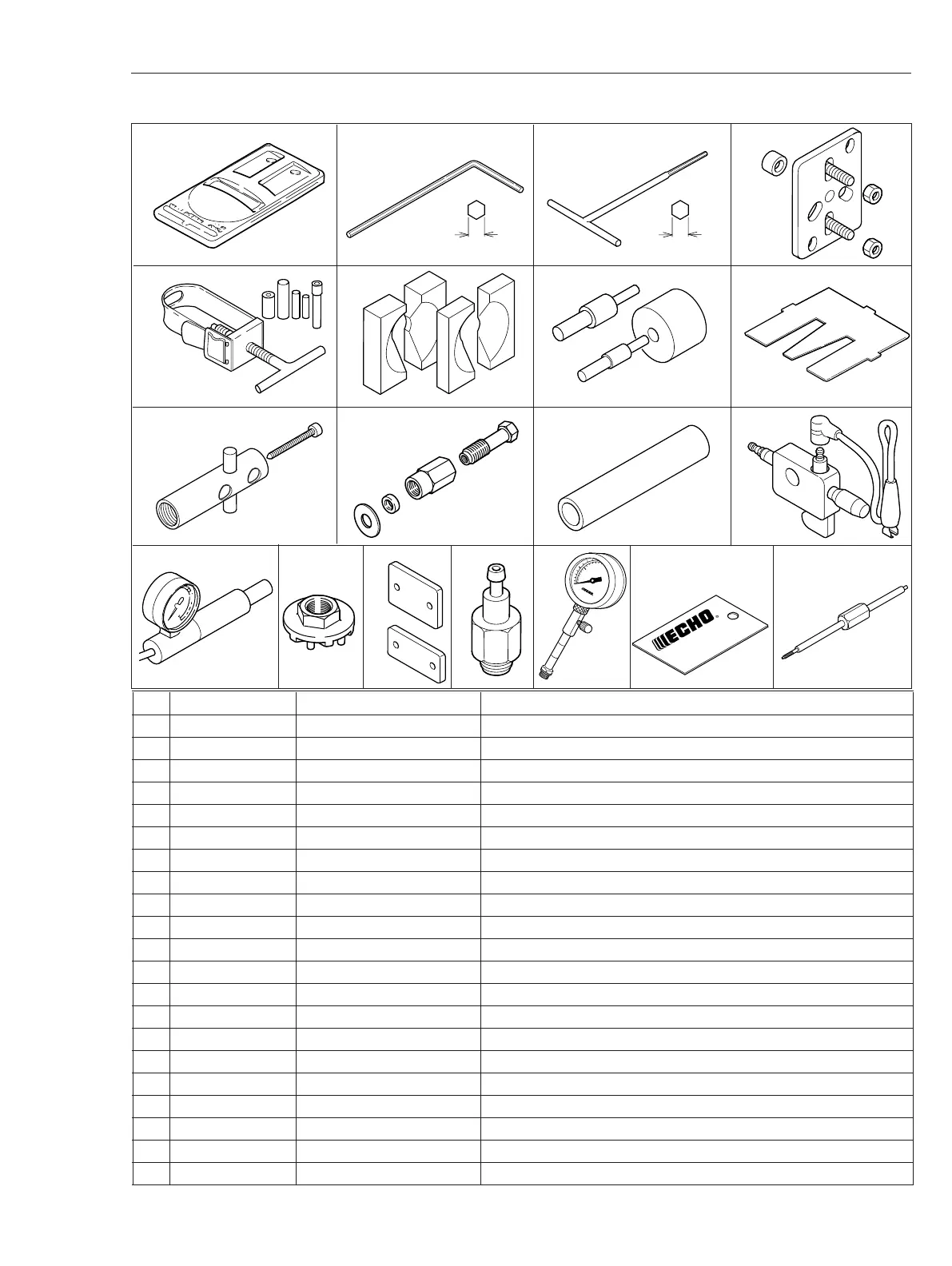

1-6 Special tools
1
45
2
6
9
10 11
14
12
15
16
19
20
3
8
Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed to adjust carburettor
2 895612-79920 L-hex wrench (3 mm) Removing and installing hex. socket bolt (M4)
3 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
4 897559-02831 T-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
5 897501-03938 Puller Removing magneto rotor
6 897702-30131 Piston pin tool Removing and installing piston pin
7 897701-06030 Bearing wedge Removing and crankshaft ball bearings
8 897705-11520 Bearing tool Replacing needle bearing on con-rod small end
9 897563-19830 Metering lever gauge Measuring metering lever hight on carburettor
10 897708-19835 Worm puller Removing auto-oiler worm
11 Y089-000010 Worm inserter Installing auto-oiler worm
12 897726-09130 Oil seal tool Installing oil seals
13 897800-79931 Spark tester Checking ignition system
14 897803-30132 Pressure tester Testing carburettor and crankcase leakage
15 X640-000011 Clutch tool Removing and assembling clutch assembly
16 897826-16131 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
17 897828-12330 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
18 897835-16131 Pressure connector Checking crankcase and cylinder leakages
19 91037 Compression gauge Measuring cylinder compression
20 91004 Module air gap gauge Adjusting pole shoe air gaps
21 91019 Limiter cap tool Removing and installing limiter cap
a = 3 mm
a = 4 mm
7
18
13
21
17
