4
CS-330T

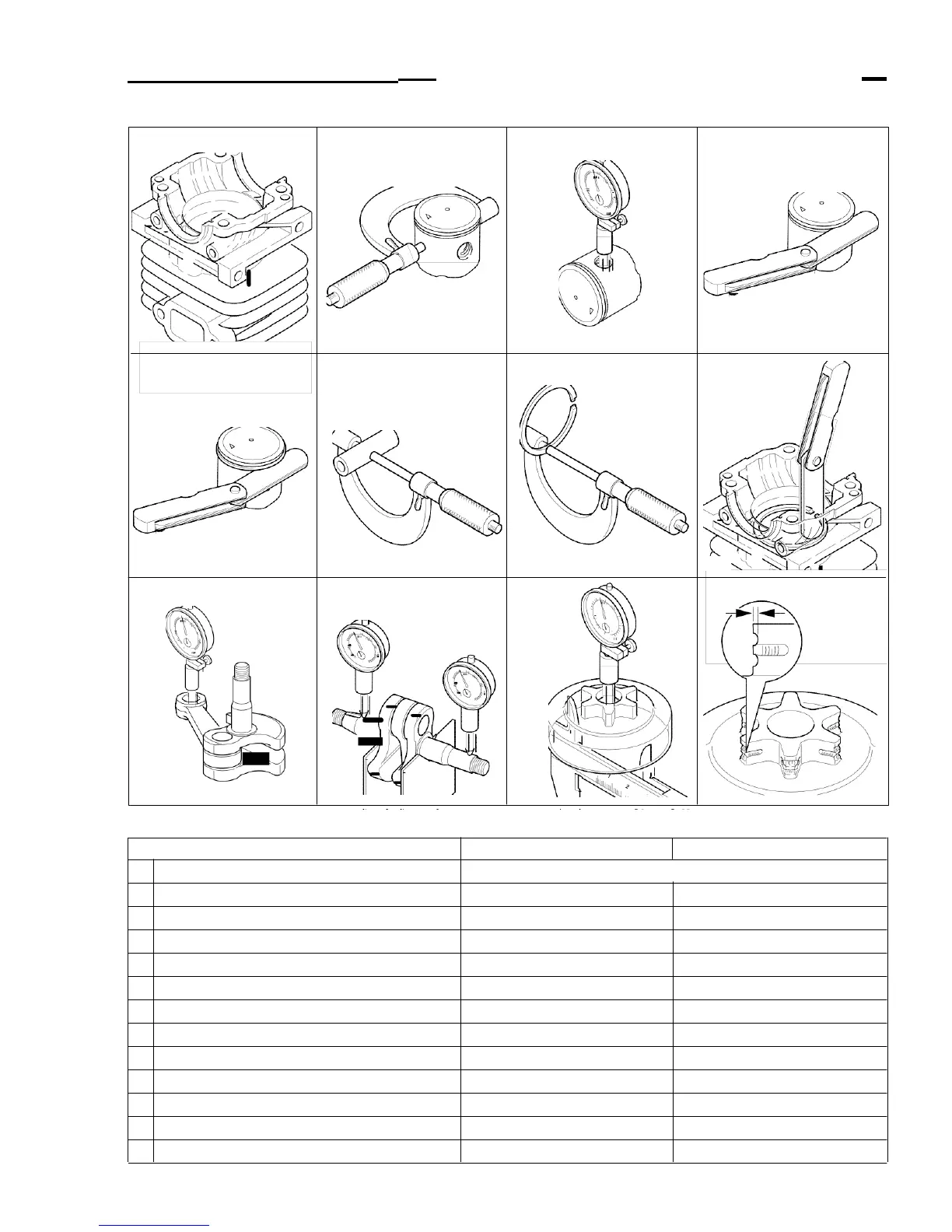

1-5 Service Limits
A B C D
5K269 5K270 5K271 5K272
E
F G H
5K273 5K016 5K042 5K274
K L M P
N
5K173 5K174 5K190 5K191
Description CS-330T CS-360T
A Cylinder bore When plating is worn and aluminum can be seen
B Piston outer diameter Min. 35.91 (1.414) 37.88 (1.491)
C Piston pin bore Max. 8.035 (0.3163) 8.035 (0.3163)
D Piston ring groove Max. 1.6 (0.063) 1.6 (0.063)
E Piston ring side clearance Max. 0.1 (0.004) 0.1 (0.004)
F Piston pin outer diameter Min. 7.980 (0.3142) 7.980 (0.3142)
G Piston ring width Min.
1.45 (0.057) 1.45 (0.057)
H Piston ring end gap Max. 0.5 (0.02) 0.5 (0.02)
K Con-rod small end bore Max. 11.025 (0.4341) 11.025 (0.4341)
L Crankshaft runout Max.
0.05 (0.002) 0.05 (0.002)
M Sprocket bore Max. 12.80 (0.504) 12.80 (0.504)
N Clutch drum bore Max. 61.5 (2.42) 61.5 (2.42)
P Sprocket wear limit Max. 0.5 (0.02)
0.5 (0.02)
