Echo CS-350WES Service Manual

CS-350WES
10
STARTER SYSTEM
A
B
E
D
C
f
F
E
(continued)

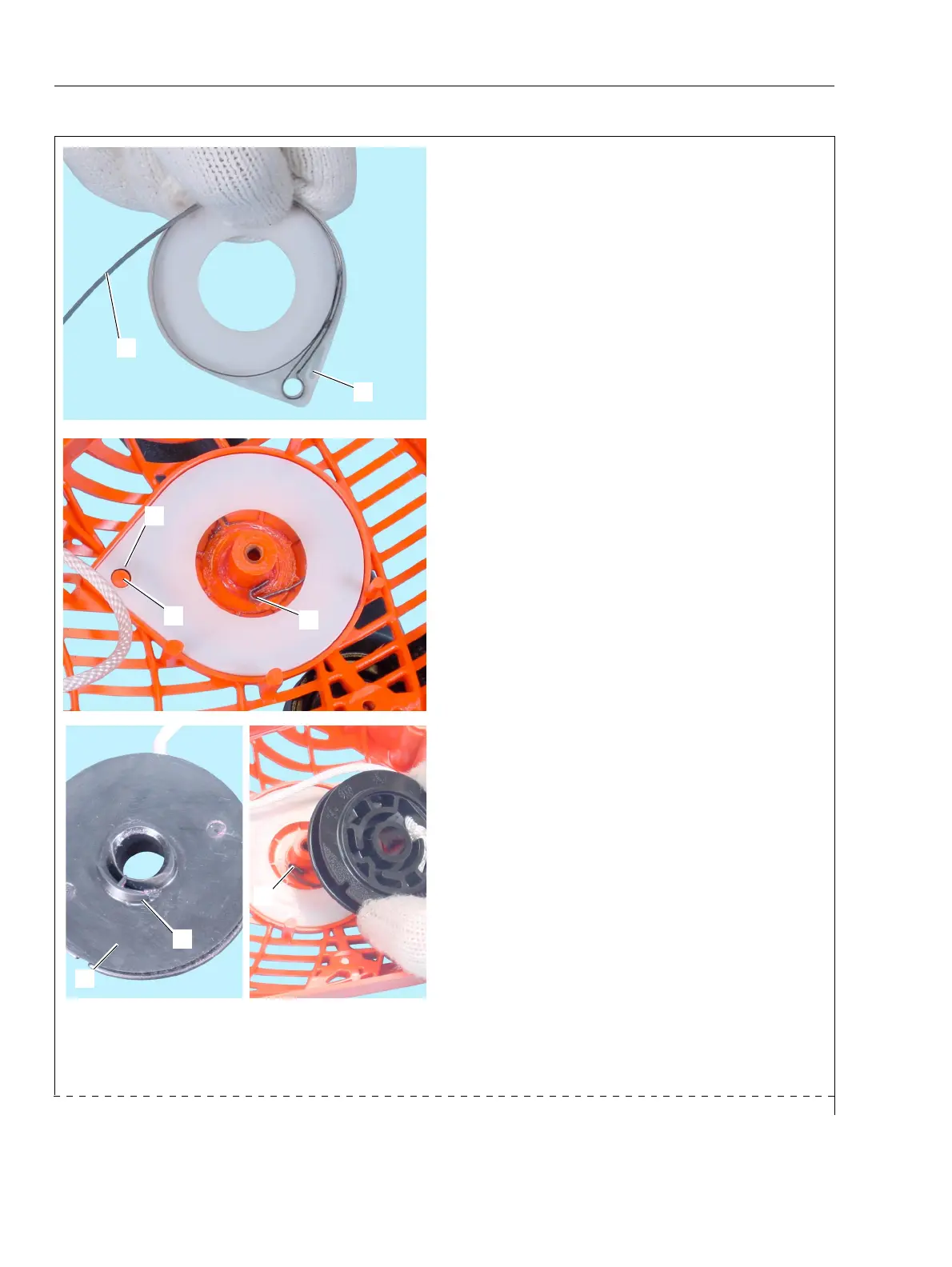

2-3 Assembling starter
1. When rewind spring (B) is released from rewind
spring case (A), wind the released rewind spring
from outside end on rewind spring case.
2. When replacing new rewind spring, remove spring
holder after assembling rewind spring into rewind
spring case (A). Apply small amount of lithium grease
to starter case side of new rewind spring.
3. Install rewind spring case on starter case meeting
hole (C) of rewind spring case with post (D). End of
hook (E) should contact with post of starter case.
4. Assemble rope reel (F) engaging hook (f) of rope
reel with hook (E) of rewind spring.
