STARTER SYSTEM
CS-350WES
3. Install washer, torsion spring, spacer, pawl,
washer and bolt. To avoid pinching of torsion spring,
install these parts without setting the hook (A) of
torsion spring on starter pawl. The bolt is precoated
with sealant on the thread. If the coat is peeled off,
apply thread locating sealant (Loctite #242 or
ThreeBond #1324).

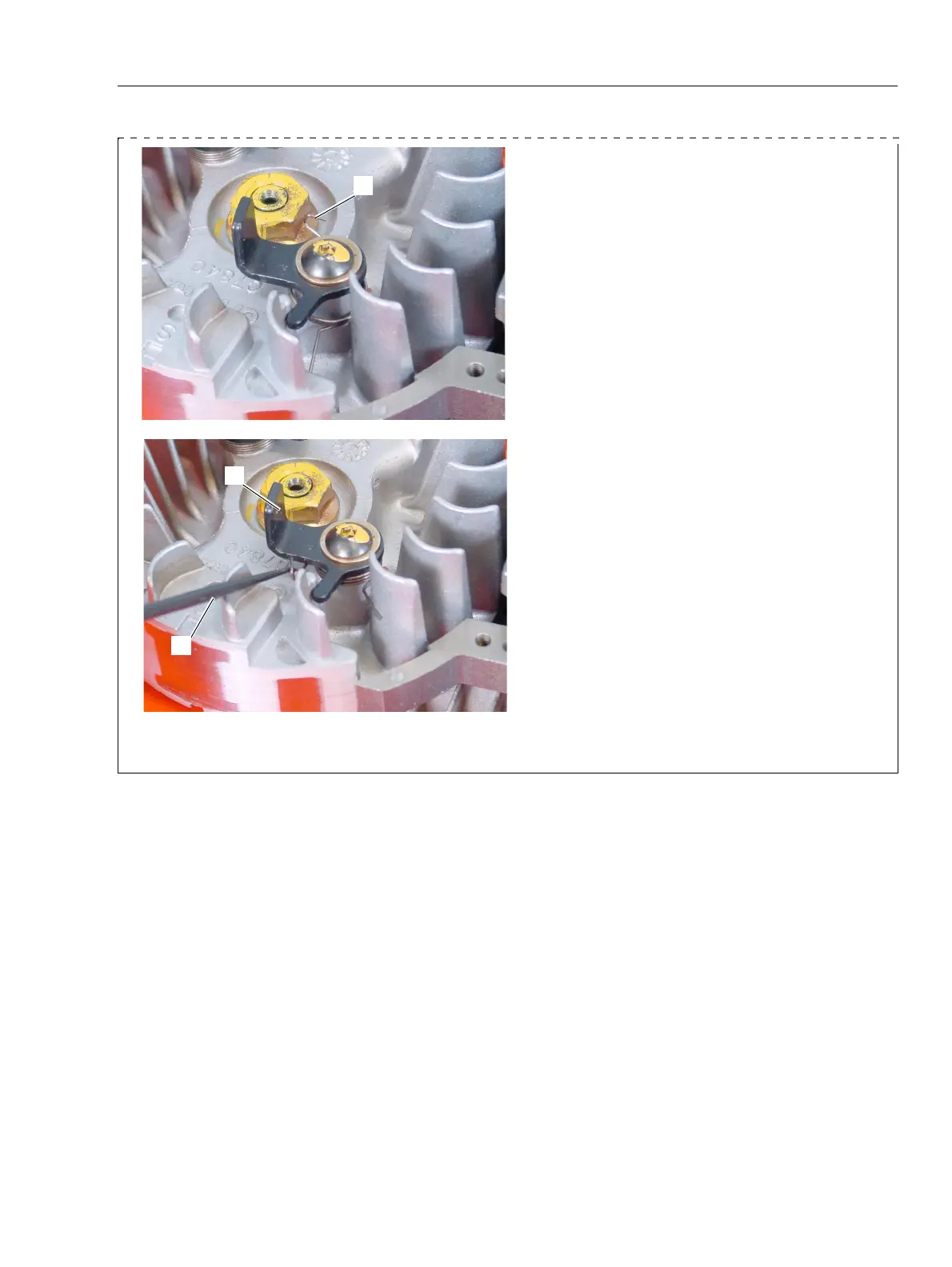

4. Using fine wire or hook tool (D), set hook of torsion
spring on pawl (E) as shown.
5. Make it sure pawl can move smoothly. If it does
not move smoothly, check whether the correct parts
are installed correctly.
A
E
D
2-4 Replacing starter pawl (continued)
