CS-350WES
52
CHAIN BRAKE SYSTEM

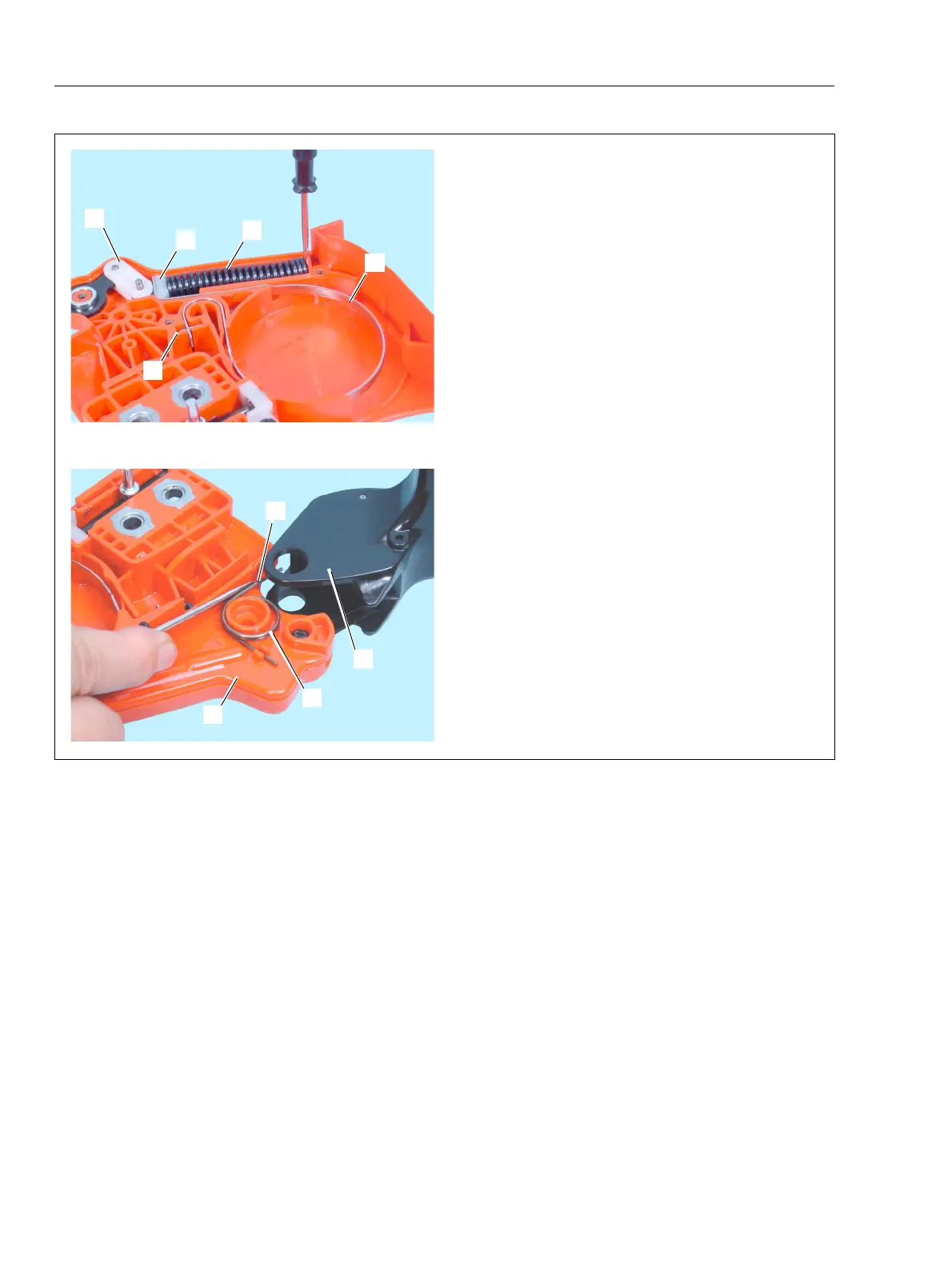

8-2 Assembling brake parts
1. Install pin (B) through brake band (A) hole.
Assemble the brake band together with pin (B),
compression spring (C), spacer (D) and brake
connector (E) to sprocket guard as shown.
2. Apply molybdenum grease on whole of
compression spring (C) and friction part of other
parts.
3. Install brake cover (F).
4. Set torsion spring (G) and install end (g) of torsion
spring (G) to inside of brake lever (H) using small
brade screw driver.
5. Install brake lever (H) and fasten screw with
spacer (2 pcs) and lock nut.
6. Check whether the chain brake operates properly.
A
C
D
H
G
F
B
E
g
To Next Page
