Echo CS-350WES Service Manual

CS-350WES
51

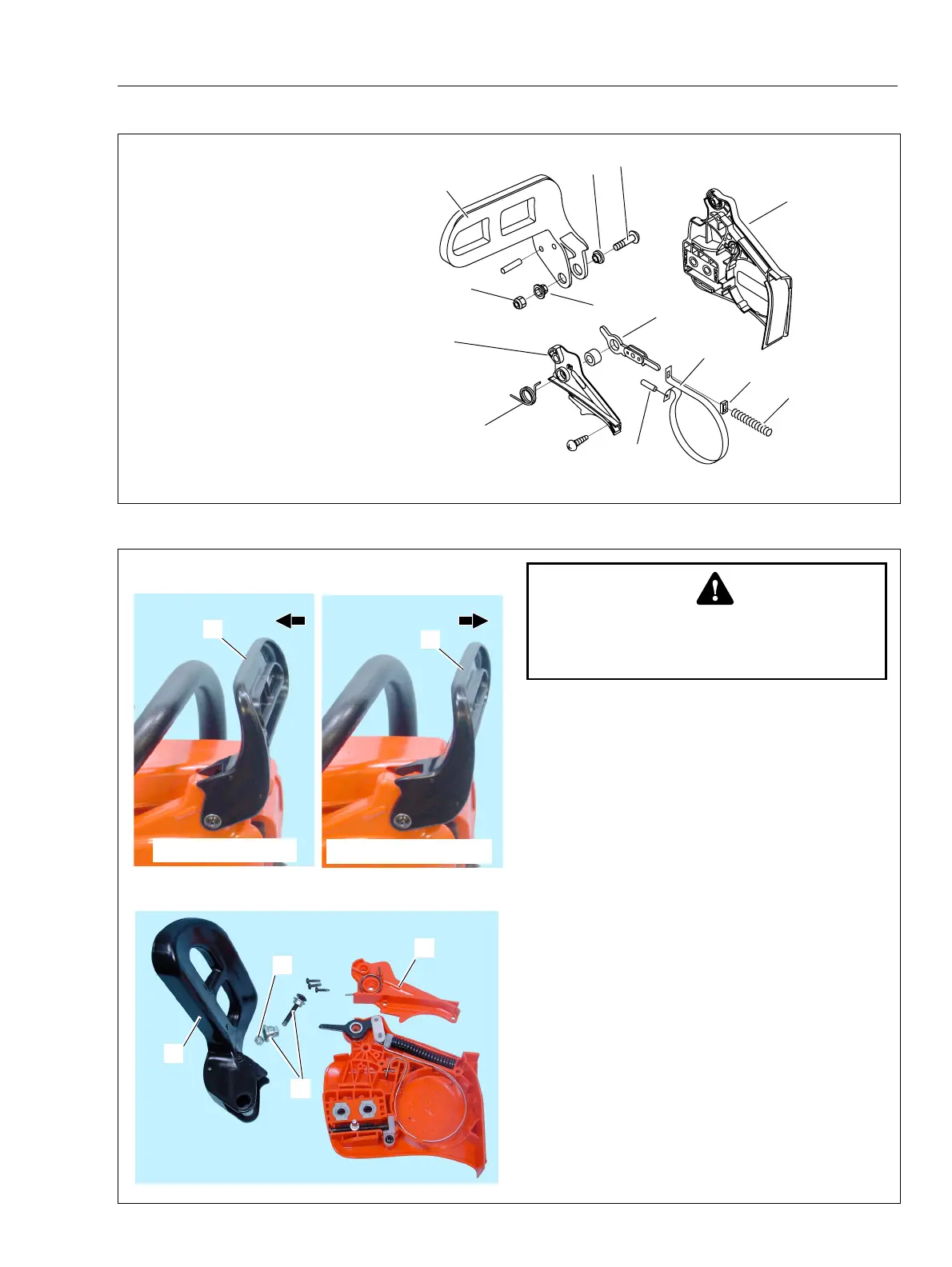

CHAIN BRAKE SYSTEM
8 CHAIN BRAKE SYSTEM
(A)
(M)
(N)
(B)
(C)
(J)
(F)
(G)
(E)
(L)
(H)
(K)
(D)
8-1 Disassembling chain brake
WARNING DANGER
Wear eye protection and safety gloves, when
disassembling or assembling chain brake to
prevent eye and hand from injury.
1. Move brake lever to the releasing position of chain
brake. And remove sprocket guard from unit.
2. Move brake lever (A) to the engaging position of
chain brake.
3. Loosen screw securing brake lever (A) and
remove collar (B), lock-nut (C), and brake lever.
NOTE: Make it sure that the brake lever is in
engaging position before removing brake lever,
otherwise the spring may jump out.
4. Loosen screw securing brake cover (D) and
remove brake cover.
5. Check whether all the brake parts for damage
and replace them as required.
( A ) Brake lever
( B ) Screw
( C ) Collar
( D ) Collar
( E ) Lock nut
( F ) Brake connector
( G ) Brake cover
( H ) Torsion spring
( J ) Roller
( K ) Brake band
( L ) Spacer
( M ) Compression spring
( N ) Sprocket guard
A
Releasing brake
Engaging chain brake
A
D
B
C
A
