HANDLE AND CONTROL SYSTEM
9 HANDLE AND CONTROL SYSTEM

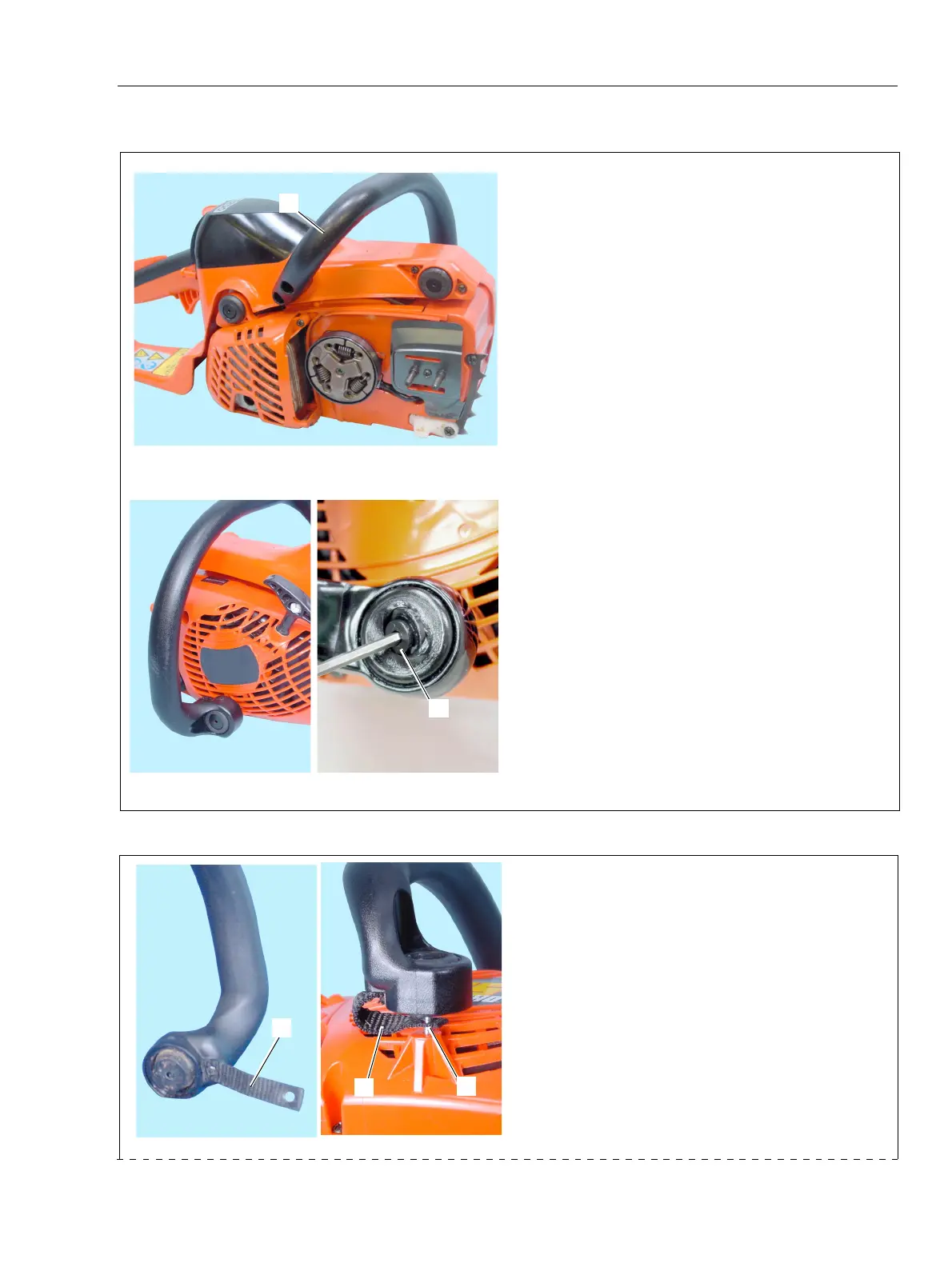

9-1 Removing front handle
1. Remove screws securing front handle (A) on
clutch side.
2. Remove cap (B) in handle cushion of starter side,
and loosen cushion bolt and remove front handle
(A) from unit.
9-2 Installing front handle
1. Install strap (D) on front handle (starter side) as
shown.
2. Install front handle (clutch side) into dent part of
rear handle.
3. Pass cushion bolts (C) through hole of strap (D)
and tighten the bolt.
4. Apply grease in the cushion.
A
B
C
D
D
(continued)
