HANDLE AND CONTROL SYSTEM
9-3 Removing rear handle
1. Remove front handle with stater assembly.
2. Remove air cleaner cover, air filter elbow and
carburettor.
3. Remove switch lead connector.

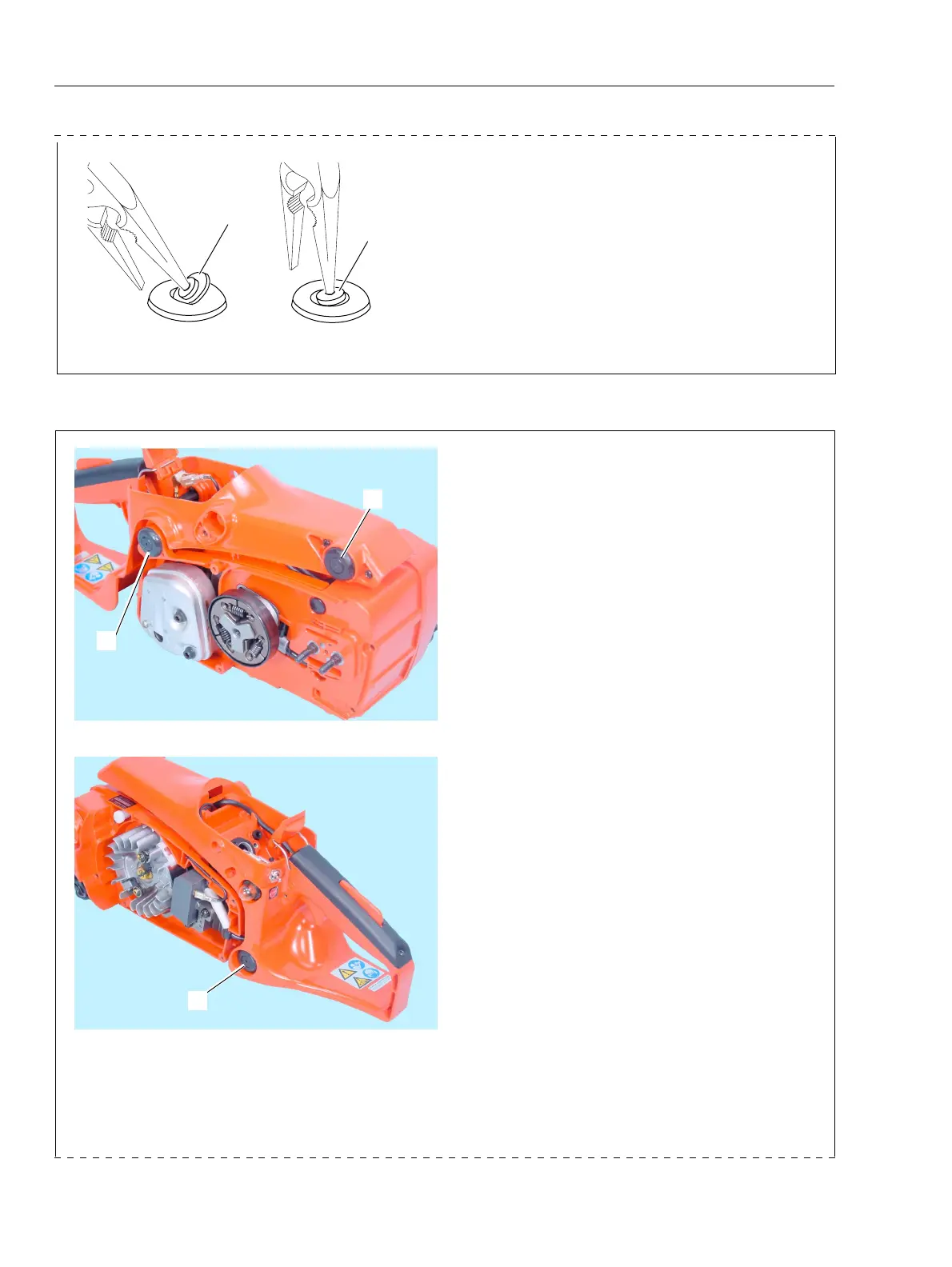

4. Remove cushion cap (A) of front side rear handle,
cushion cap (B) of rear side of rear handle and
cushion cap (C) of starter side of rear handle. And
then loosen cushion bolts.
5. Install cap (B) as shown.
6. Tighten screws securing front handle (clutch side).
B
B
B
A
C
9-2 Installing front handle (continued)
(continued)
