Echo CS-352ES User Manual

12

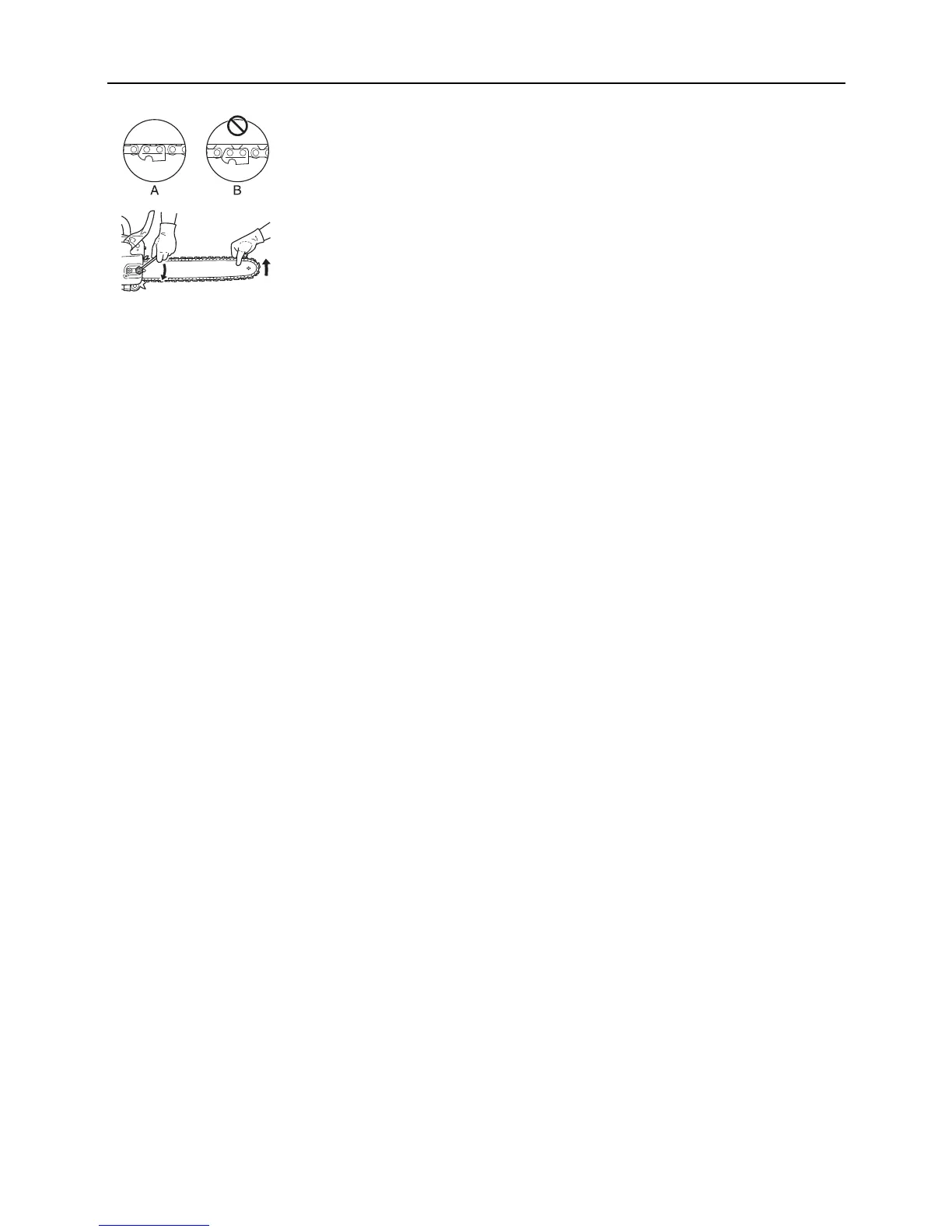

 Hold the bar nose up and turn the adjuster clockwise until the chain fits snugly against
the underside of the bar.
A: Proper tension
B: Improper tension
 Tighten both nuts with the bar nose held up.
 Pull the chain around the bar by hand.
Loosen the adjustment if you feel tight spots.

Echo CS-352ES Specifications

General

Engine Type	2-stroke
Engine Displacement	34.0 cc
Bar Length	14 inches
Weight	4.0 kg
Chain Pitch	3/8 inch
Chain Gauge	0.050"
