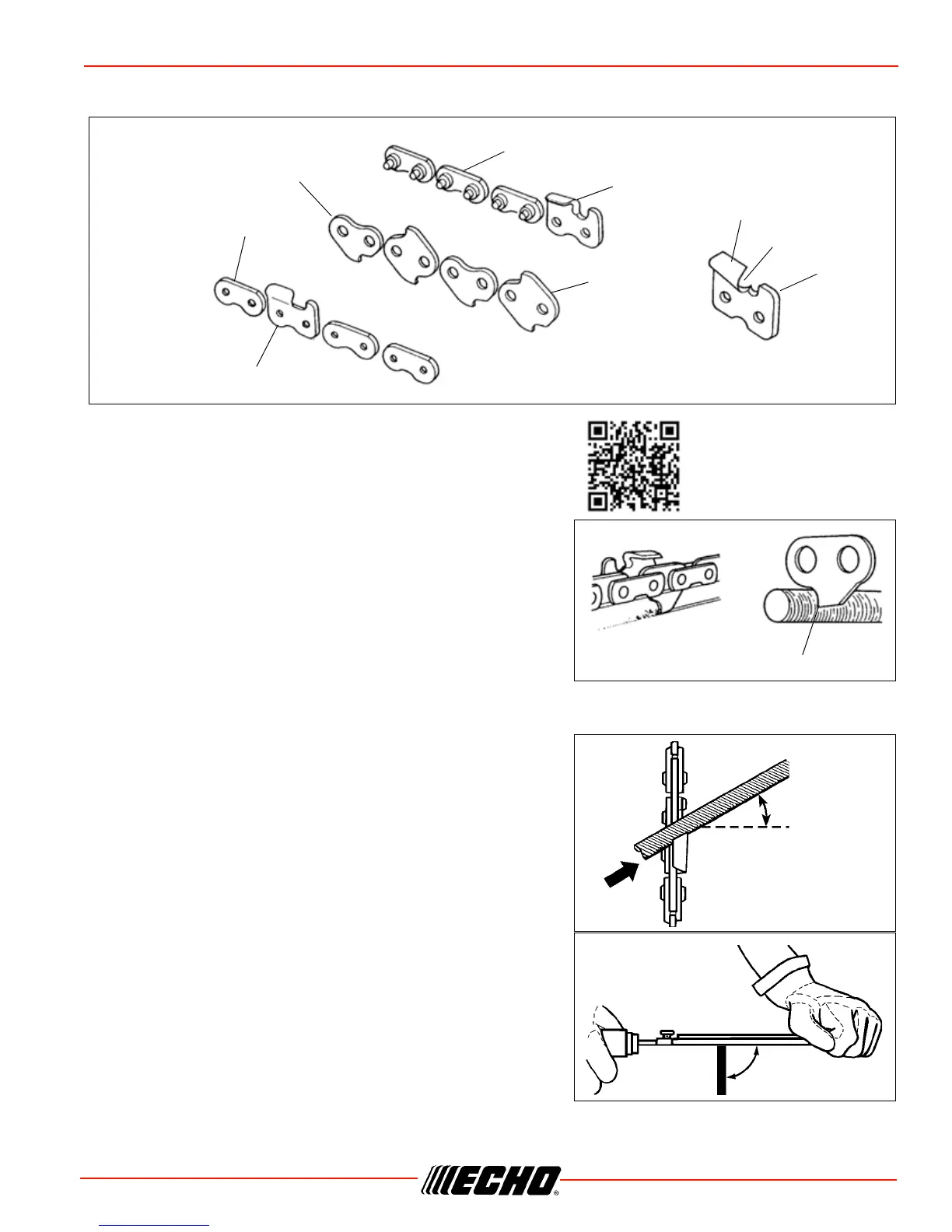

Setting The Saw Chain
Important points for proper maintenance of saw chain:
• Keep the cutters sharp at all times.
• Keep the left and the right cutters properly aligned.
• Note that blunt or irregular cutters will result in poor cutting
performance, increased vibration of chains and premature
breakage of the saw chain.
• Drive link serves to remove sawdust from the groove of the
guide bar. Keep the lower edge of the drive link sharp where
indicated.
Setting Saw Chain
• For setting saw chain, round file (4.0 mm dia. 5/32 in.) and flat
file are used.
• Push file as shown.
• To keep correct position and correct angle, use a file holder.
• Hold the file horizontally.
Right hand cutter
Left hand cutter
Preset tie strap
Top plate
Side plate
Depth gauge
Drive link
Tie strap
Guard link
