STARTER SYSTEM
CS-370ES
CS-420ES

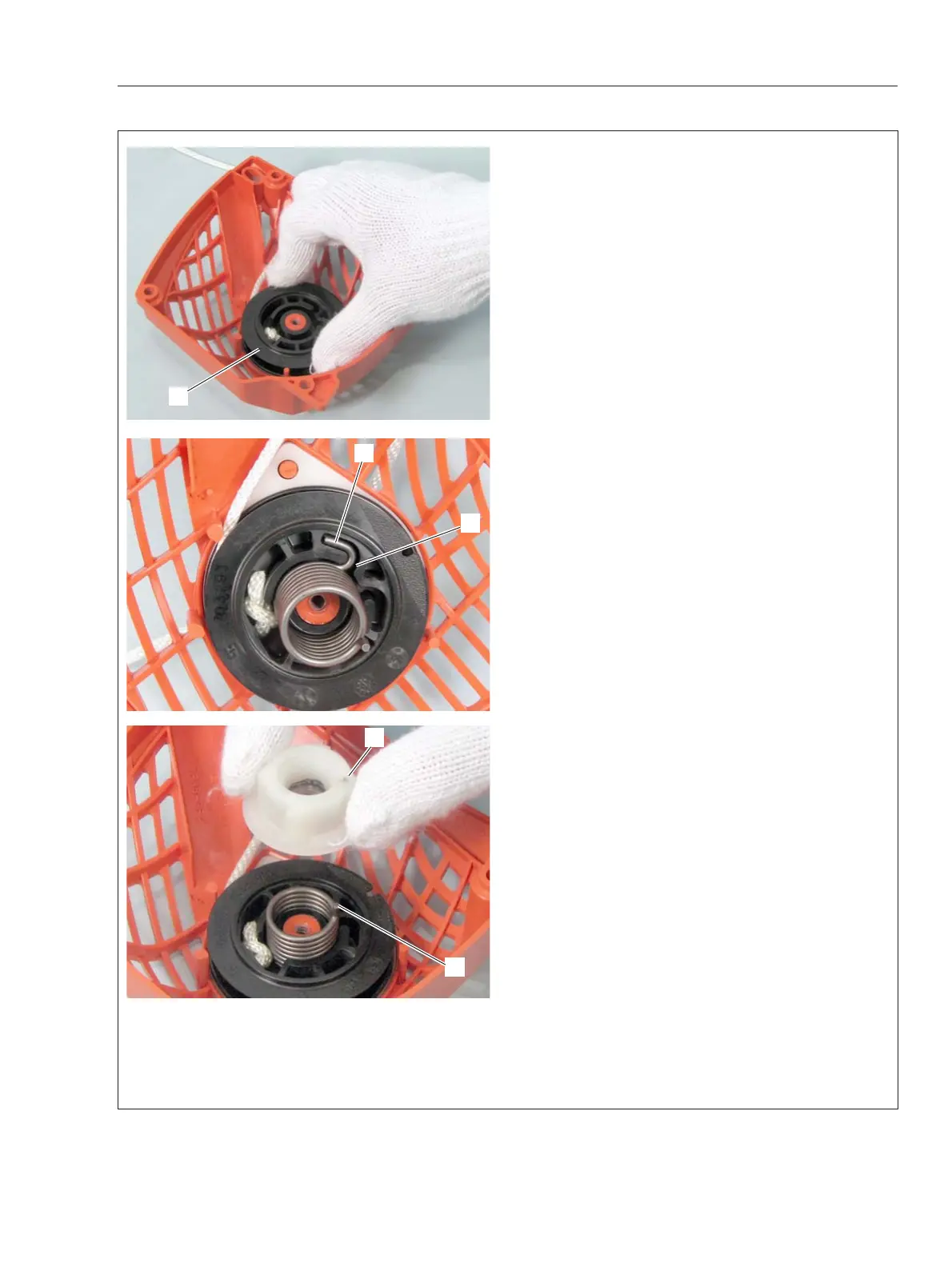

6. Install pawl catcher, assembling power spring
hook (J) into pawl catcher hole (I).
F
2-3 Assembling starter (continued)
4. Check for proper engagement of rewind spring
and rope reel by turning rope reel (F) clockwise and
counterclockwise.
5. Install power spring assembling hook (G) of power
spring into rope reel cutout (H).
G
H
J
I
To Next Page
