SAW CHAIN LUBRICATION SYSTEM
CS-370ES
CS-420ES
39
6-4 Replacing oil line and grommet
1. Remove clutch assembly referring to “5-1
Inspecting clutch parts”.
2. Remove clutch plate, clutch drum, needle bearing
and washer.
3. Pull out oil strainer from oil tank (Refer to “6-1
Inspecting oil cap and strainer”) and remove oil
strainer from oil line.
4. Remove auto-oiler assembly from engine cover.
5. Remove oil line and grommet from engine cover.
6. Remove oil line from auto-oiler assembly.

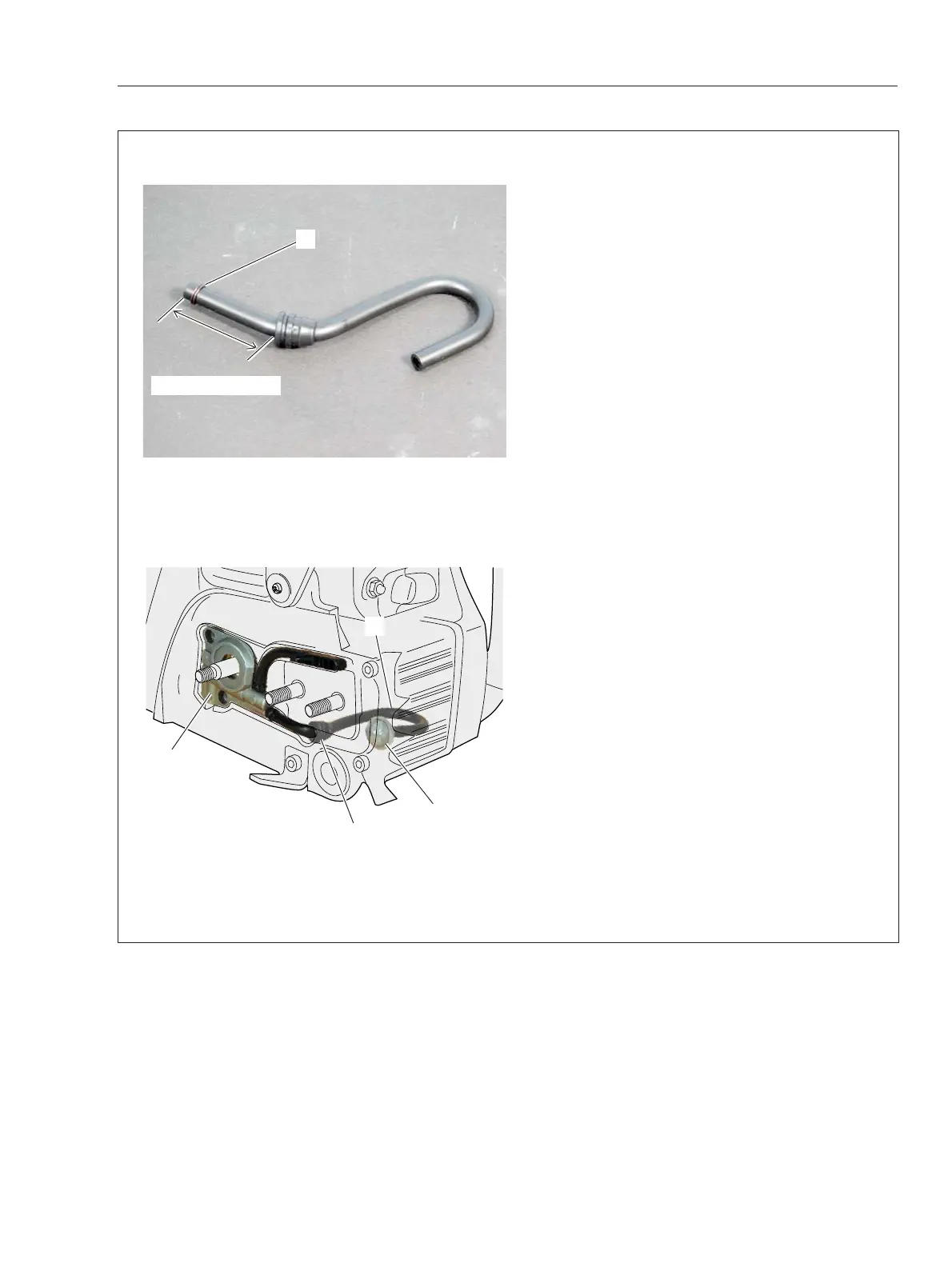

7. Insert new oil line to grommet, install clip (A) on
the end of oil line as shown.
NOTE: Apply sealant (Loctite #242, Threebond
#1324 or equivalent) between grommet and oil line
to prevent oil line movement.
8. Insert oil line (B) and grommet (C) in engine cover,
and install as shown.
NOTE: Oil strainer (E) will be installed at step 11.
NOTE: If oil line is not positioned correctly, chain oil
may not be supplied properly because oil strainer
cannot move freely in oil tank.
9. Reinstall auto-oiler assembly (D) to engine cover.
10. Install oil line to auto-oiler assembly.
11. Remove oil cap. Pull out oil line from oil tank
and reinstall oil strainer (E).
38 mm (1.5 in)
A
C
E
B
D
To Next Page
