REAR HANDLE AND CONTROL SYSTEM
9-2 Replacing cushions (continued)

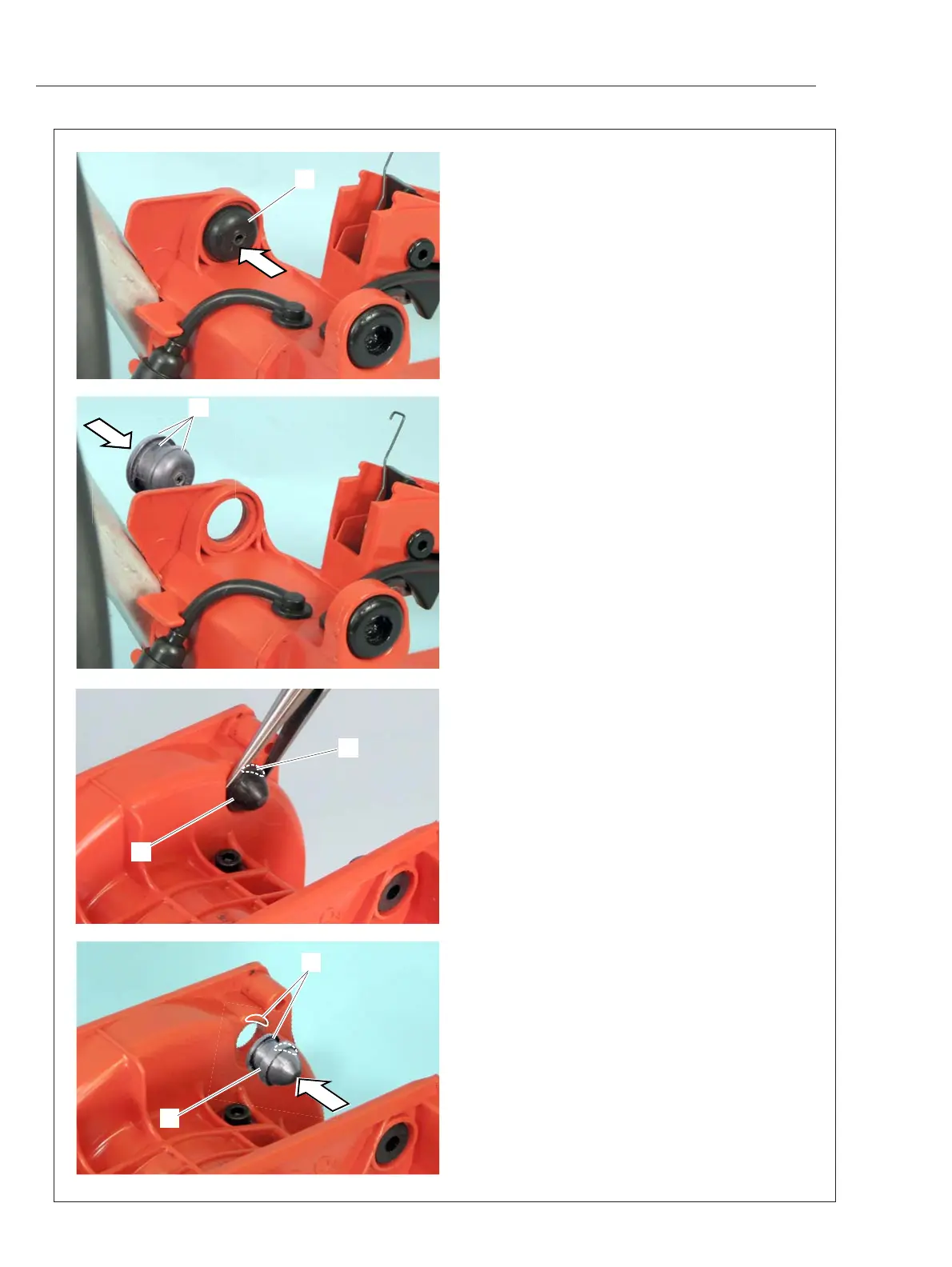

7. To remove cushion (B) and (C), push out cushion
as shown.
8. Apply lithium-based grease on outer surfaces (b),
then push in cushion as shown.
9. Remove cushion (D) with needlenose pliers,
cutting off glued part (d) with cutter.
10. Push in cushion (D) without applying grease/oil.
11. Apply adhesive (Loctite #424, ThreeBond #1741
or equivalent) on the part (d) between cushion and
engine cover.
NOTE: If grease/oil is applied on cushion, adhesive
force may be weak.
