REAR HANDLE AND CONTROL SYSTEM
9-3 Replacing throttle trigger (continued)

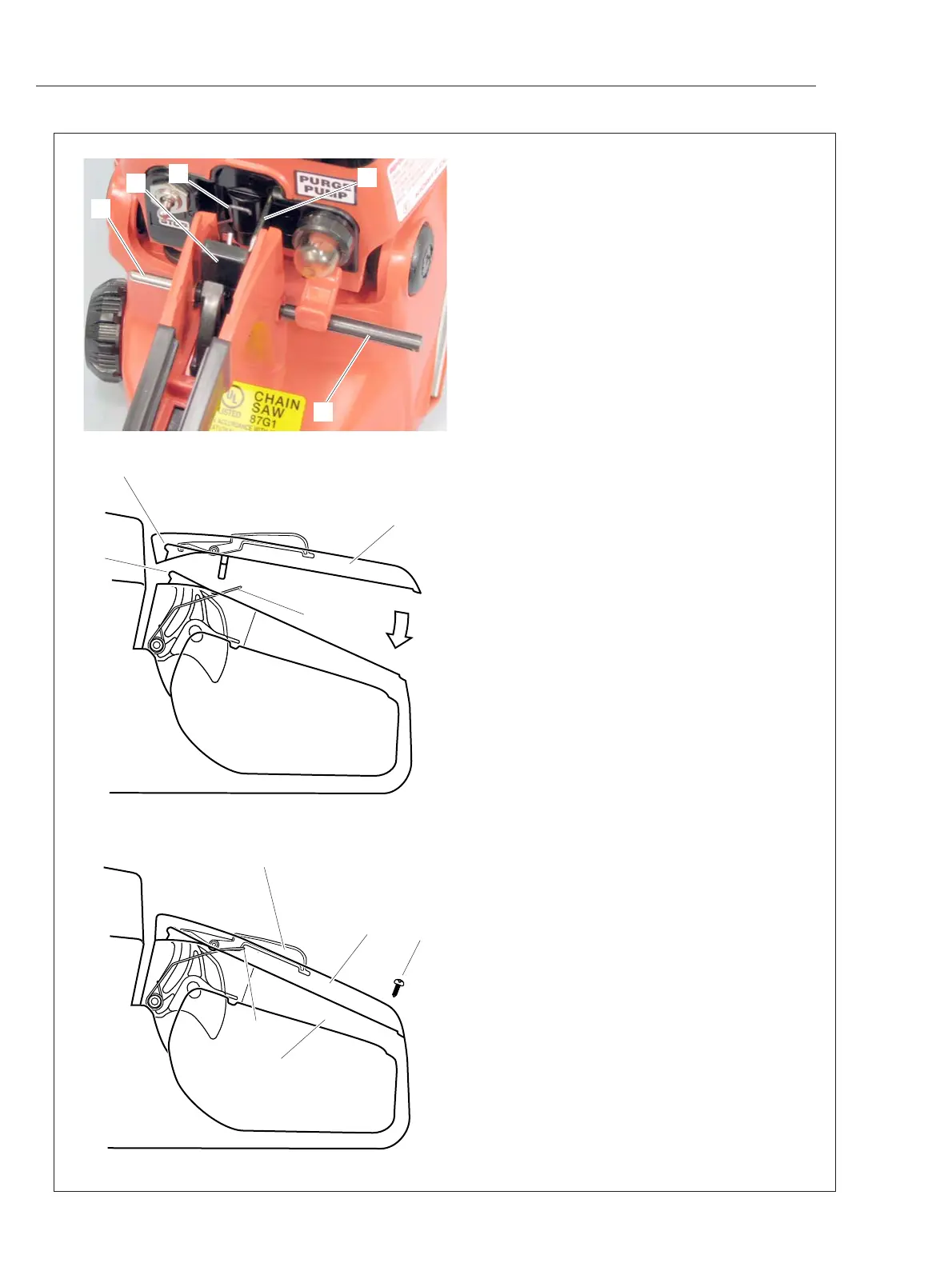

6. Install throttle trigger (A) with torsion spring (B)
and insert spring pin (C) as follows.
1) Insert spring pin (C) in the hole of rear handle
so the tip of spring pin does not protrude inside
handle.
2) Hold throttle trigger (A) with torsion spring (B)
in place, and insert spring pin tool 897724-01361
(E) from the other side of handle through the hole
of throttle trigger.
3) Lightly tap in spring pin (C), pushing out spring
pin tool (E).
7. Hook the inside notch (f) of rear handle cover (F)
on the tab (G) of rear handle.
8. Install rear handle cover (F) on rear handle (H),
setting torsion spring (J) with throttle lockout (K) as
shown.
9. Tighten screw (L) to secure rear handle cover
(F). Check throttle trigger and throttle lockout for
correct movement.
F
G
f
E
K
F
H
J
L
D
A
B
C
J
