Oil tank cap
CHAIN LUBRICANT
Proper lubrication of the chain while in operation
reduces friction between the chain and the guide
bar to a minimum and assures a longer service life.
• Usebarandchainoilofhighqualityforthis
purpose.
• Donotuseusedorreclaimedoiltoavoidvarious
oiler problems.
• UseECHObarandchainoil.
• Usebarandchainoilofthefollowinggrades:
SAE No. 30 ....... in summer
SAE No. 10 ....... in winter or when cutting
resinous trees
• Whenrefueling,alsorellchainoil.
Fuel tank cap

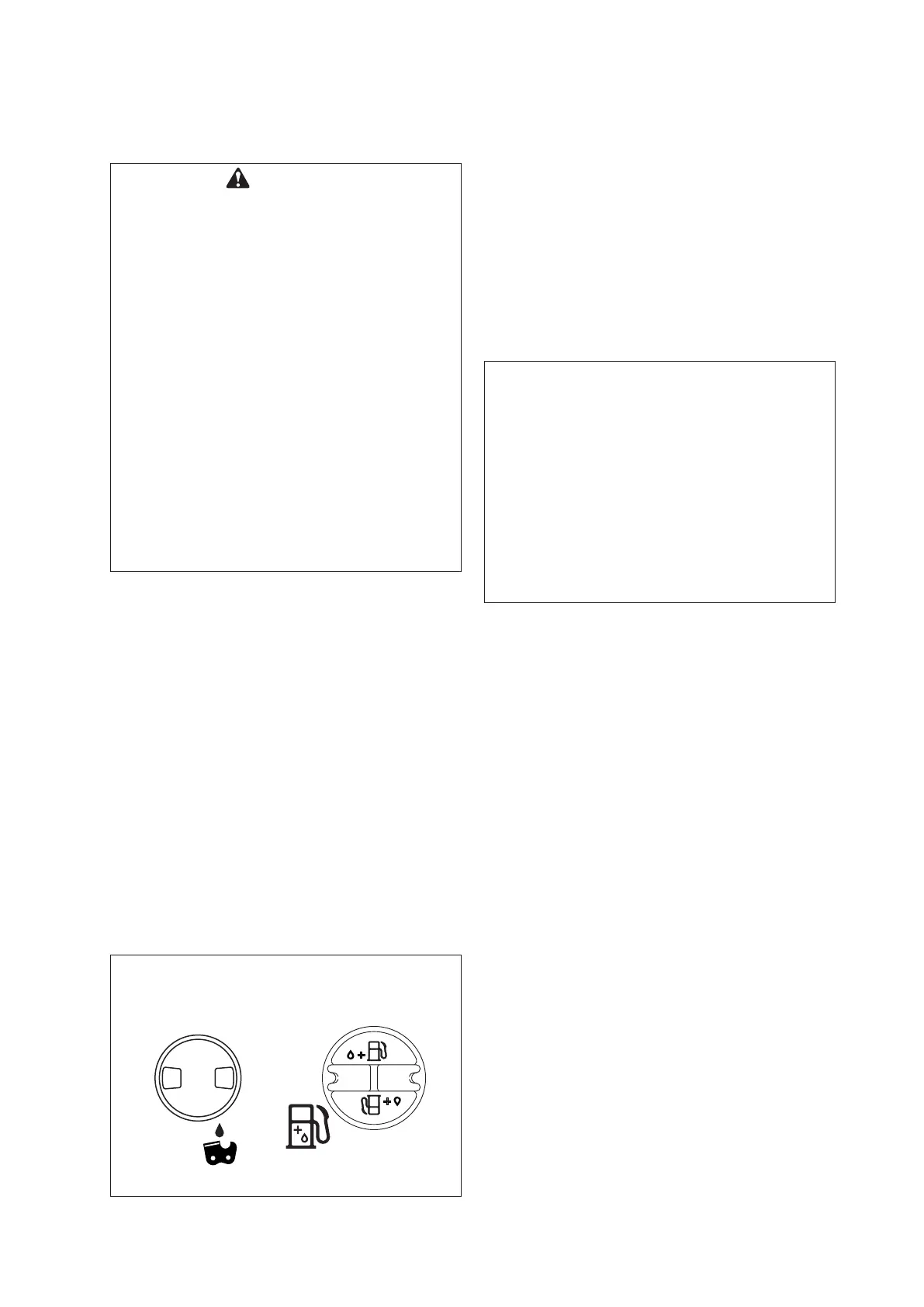

Cap indication
Oil/fuel tanks are indicated by the following
illustrations.
HANDLING FUEL
Mixing Instructions -
1. Fill an approved fuel container with half of the
required amount of gasoline.
2. Add the proper amount of two-stroke oil to
gasoline.
3. Close container and shake to mix oil with
gasoline.
4. Add remaining gasoline, close fuel container,
and remix.
IMPORTANT
•Spilledfuelisaleadingcauseofhydrocarbon
emissions.
Some states may require the use of automatic
fuel shut-off containers to reduce fuel spillage.
•Storedfuelages.
Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel
stabilizer is added.
•Storedtwo-strokefuelmayseparate.
Always shake fuel container thoroughly before
each use.
After Use -
Do not store a unit with fuel in its tank.
Leaks can occur.
Return unused fuel to an approved fuel storage
container.
Storage -
Fuel storage laws vary by locality.
Contact your local government for the laws
affecting your area.
As a precaution, store fuel in an approved, airtight
container.
Store in a well-ventilated, unoccupied building,
away from sparks and flames.
DANGER
Fuel is very flammable. Use extreme care
when mixing, storing or handling or serious
personal injury may result.
•Useanapprovedfuelcontainer.
•Donotsmokenearfuel.
•Donotallowamesorsparksnearfuel.
•Fueltanks/cansmaybeunderpressure.
Always loosen fuel caps slowly allowing
pressure to equalize.
•Neverrefuelaunitwhentheengineishot!
•Neverrefuelaunitwiththeenginerunning.
•Donotllfueltanksindoors.
Alwaysllfueltanksoutdoorsoverbare
ground.
•Securelytightenfuelcapafterrefueling.
•Inspectforfuelleakage.
If fuel leakage is found, do not start or
operate unit until leakage is repaired.
•Moveatleast3m(10feet)fromrefueling
location before starting the engine.

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
