Echo CS-501P Instruction Manual

15
CS-501P
WARNING
•Afterchokecontrolknobispulledandthen
knob is returned to original position, throttle
remains a little open (latch condition).
•Ifengineisstartedinthislatchcondition,
chain starts to turn.
Do not start engine before chain brake is
activated.
CAUTION
•Afterstartingtheengine,immediately
squeeze and release throttle trigger for
disengaging throttle latch and returning
engine to idle, and pull front hand guard
towards the operator immediately.
(Chain brake unlocked position)
•Neverusethrottlelatchforcutting.
•Usethechainbrakeonlyinstartingorin
emergencies.

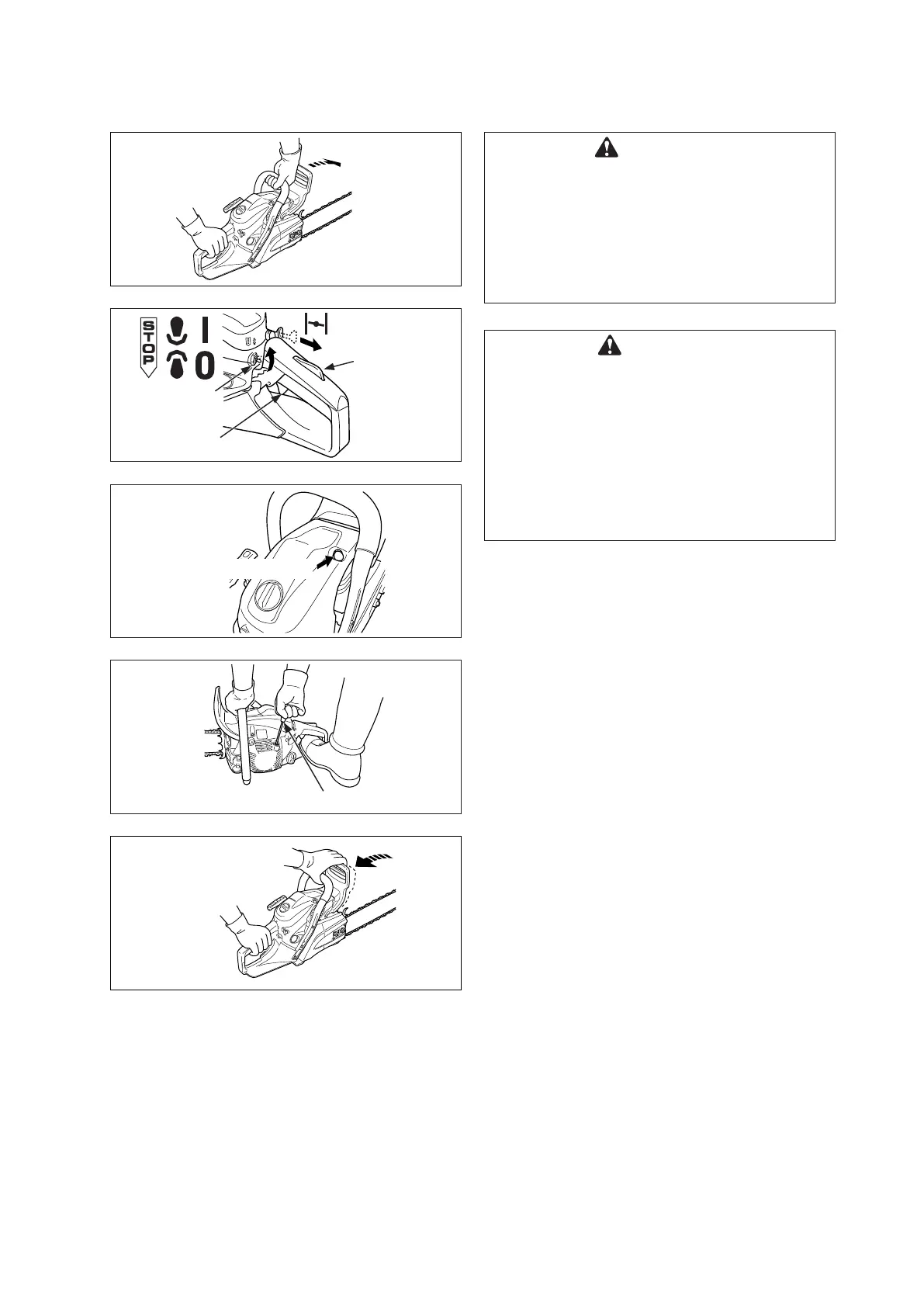

OPERATION
Ignition switch
Chain brake
Starter handle
Unlock chain brake
Throttle trigger
Choke
Throttle trigger
lockout
Decompression device

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
