Echo CS-501P Instruction Manual

22
CS-501P

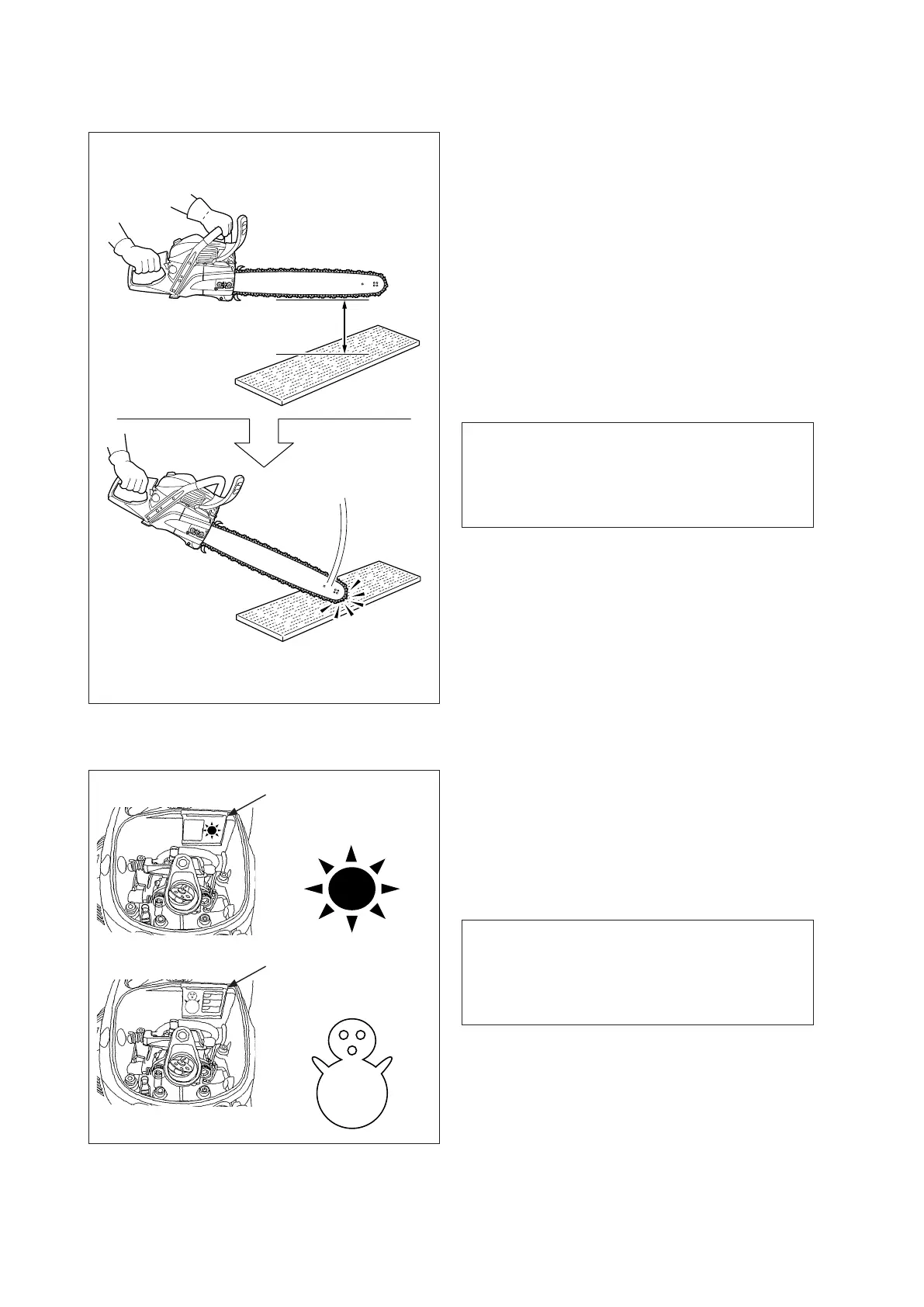

End of the guide bar may be placed at the
height of about 35 cm (14 in.).
35 cm
(14 in.)
AUTOMATIC CHAIN BRAKE
Kickback produced from the tip of the guide bar will
trip the automatic chain brake. To make sure that
the automatic chain brake operates properly, follow
these steps:
1. Stop the engine.
2. Hold the saw with the guide bar approximately
35 cm (14 in.) above a wooden surface. Right
hand should hold the rear handle, and left hand
should hold the front handle.
3. Release the front handle and drop the end of the
guide bar against the wooden surface.
4. The impact should lock the chain brake.
IMPORTANT
When checking the operation of the automatic
chain brake, use a soft surface substance like
wood to provide the impact so the chain is not
damaged.
WINTER OPERATION
Use the air shutter to prevent carburetor trouble in
winter.
• Pullthechokeknobandremovetheaircleaner
cover and the air filter.
• Pullouttheairshutterandinsertitwiththe
snowman mark facing up.
NOTICE
For operation at normal temperature, return the
air shutter to its original position (with the sun
mark facing up). (5°C, 41°F)
It causes over heating of the engine.
Rear handle should be gripped lightly with the
right hand.
Air shutter
Warm weather position
(sun mark)
Cold weather position
(snowman mark)
Air shutter

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
