Echo CS-501P Instruction Manual

25
CS-501P
CARBURETOR ADJUSTMENT
Every unit is run at the factory and the carburetor is
set in compliance with Emission Regulations.
In addition, the carburetor is equipped with high
speed and low speed needle adjustment limiters
that prevent settings outside acceptable limits.
1. Before adjusting carburetor clean or replace air
filter and muffler “Spark Arrestor Screen”.
2. Make sure the bar and chain are properly
adjusted.
3. Start engine and run several minutes to bring to
operating temperature.
Flash choke twice during warm-up to clear any
air from the fuel system.
4. Idle Speed Adjustment:
• Startengine,turn“Idle”speedadjustment
screw clockwise until the saw chain begins
to turn, then turn screw out counterclockwise
until the saw chain stops turning.
Turn screw out, counterclockwise, an
additional ¼ turn.
WARNING
Cutting attachment must not move when unit
is idling.
5. Accelerate to full throttle for 2 - 3 seconds to
clear any excess fuel in the engine, then return
to idle.
Accelerate engine to full throttle to check for
smooth transition from idle to high speed.
6. Check idle speed and reset if necessary as
described in item 4.
If a tachometer is available idle speed should be
set to 2700 r/min.
CAUTION
When starting, idling adjustment speed
should be adjusted not to rotate the saw
chain.
Correct idle speed is adjusted 2700 r/min.
Or ¼ turn CCW from the point the chain
stops moving.
When you experience trouble with the
carburetor, contact your dealer.

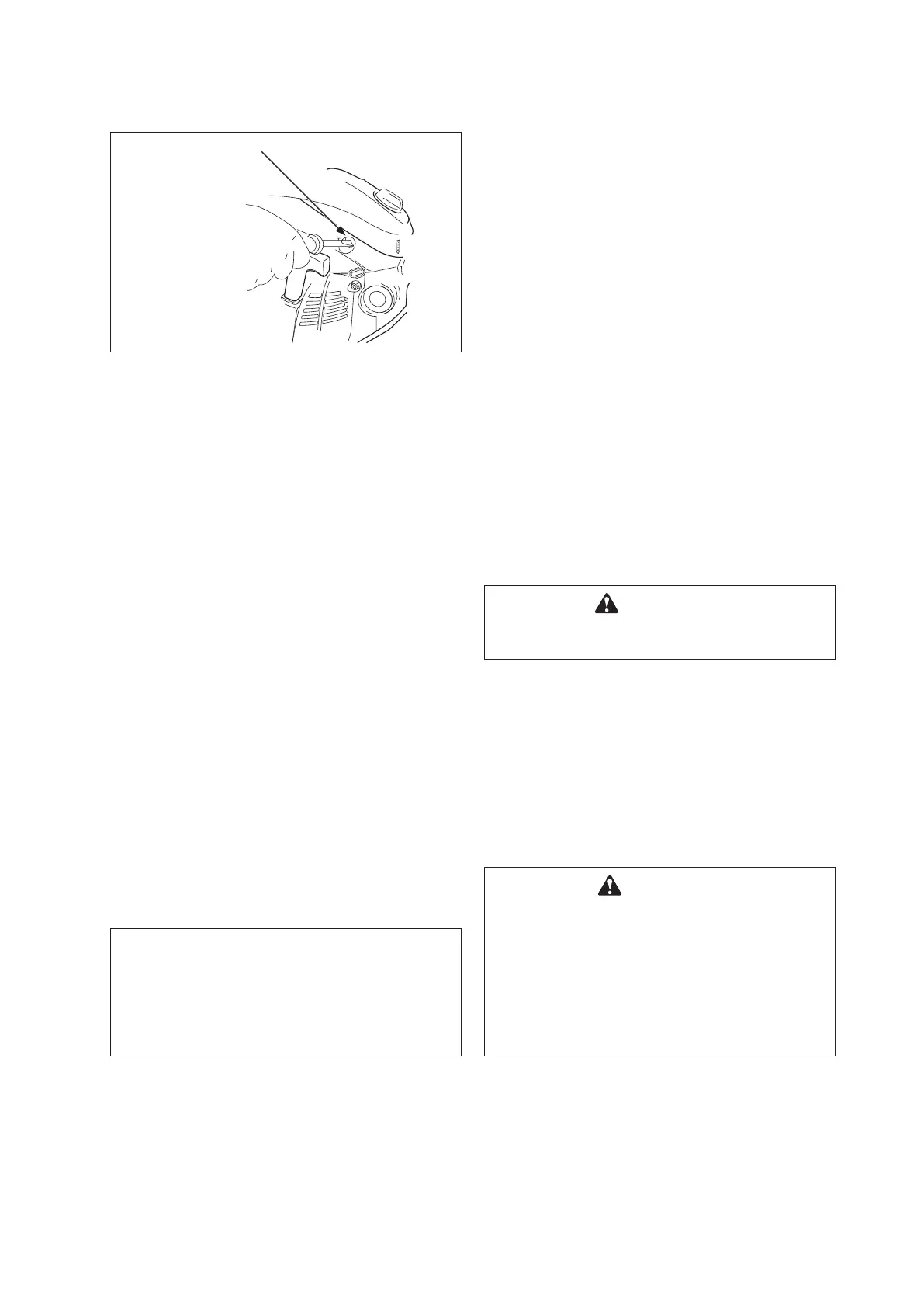

Idle adjusting screw
High Altitude Operation
This engine has been factory adjusted to maintain
satisfactory starting, emission, and durability
performance up to 1100 feet above sea level (ASL)
(96.0 kPa).
To maintain proper engine operation and emission
compliance above 1100 feet ASL the carburetor
may need to be adjusted by an authorized ECHO
service dealer.
IMPORTANT
If the engine is adjusted for operation above
1100 feet ASL, the carburetor must be
readjusted when operating the engine below
1100 feet ASL, otherwise severe engine damage
may result.

Echo CS-501P Specifications

General

Engine Displacement	50.2 cc
Chain Pitch	0.325 in
Chain Gauge	0.050 in
Bar Length	18 in
Fuel Capacity	0.5 liters
Oil Capacity	0.25 liters
Starting System	Recoil
Fuel Tank Capacity	0.5 liters
Oil Tank Capacity	0.25 liters
Weight (Powerhead Only)	10.6 lbs
