CS-7310P DESCRIPTION
X7503340002 23
© 11/21 ECHO Incorporated

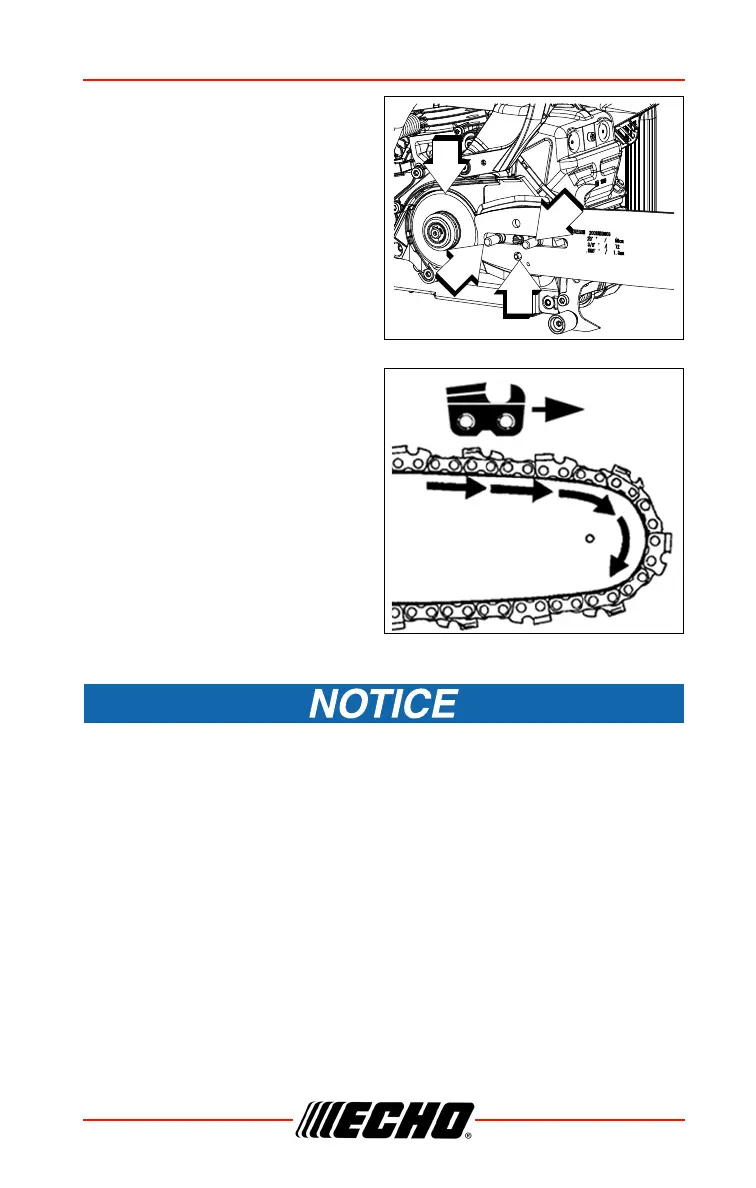

5. Mount guide bar on studs (E)
and slide toward clutch drum
(F) to make saw chain
installation easier. Ensure chain
tension adjuster pin (H) fits into
the guide bar adjuster hole..
6. Install saw chain around
sprocket and guide bar as
shown, with cutters on top of
guide bar facing forward.
7. Install sprocket guard over
guide bar studs. Tighten
sprocket guard nuts finger tight.
8. Adjust saw chain tension, as
instructed in “Adjusting Chain
Tension”.
9. Install spark plug lead and air
cleaner cover.
Adjusting Chain Tension
Always loosen sprocket guard nuts before turning the chain tension
adjuster, otherwise the sprocket guard and tensioner will be
damaged.
1. Remove air cleaner cover and disconnect spark plug lead.
2. Loosen sprocket guard nuts.
