CS-8000

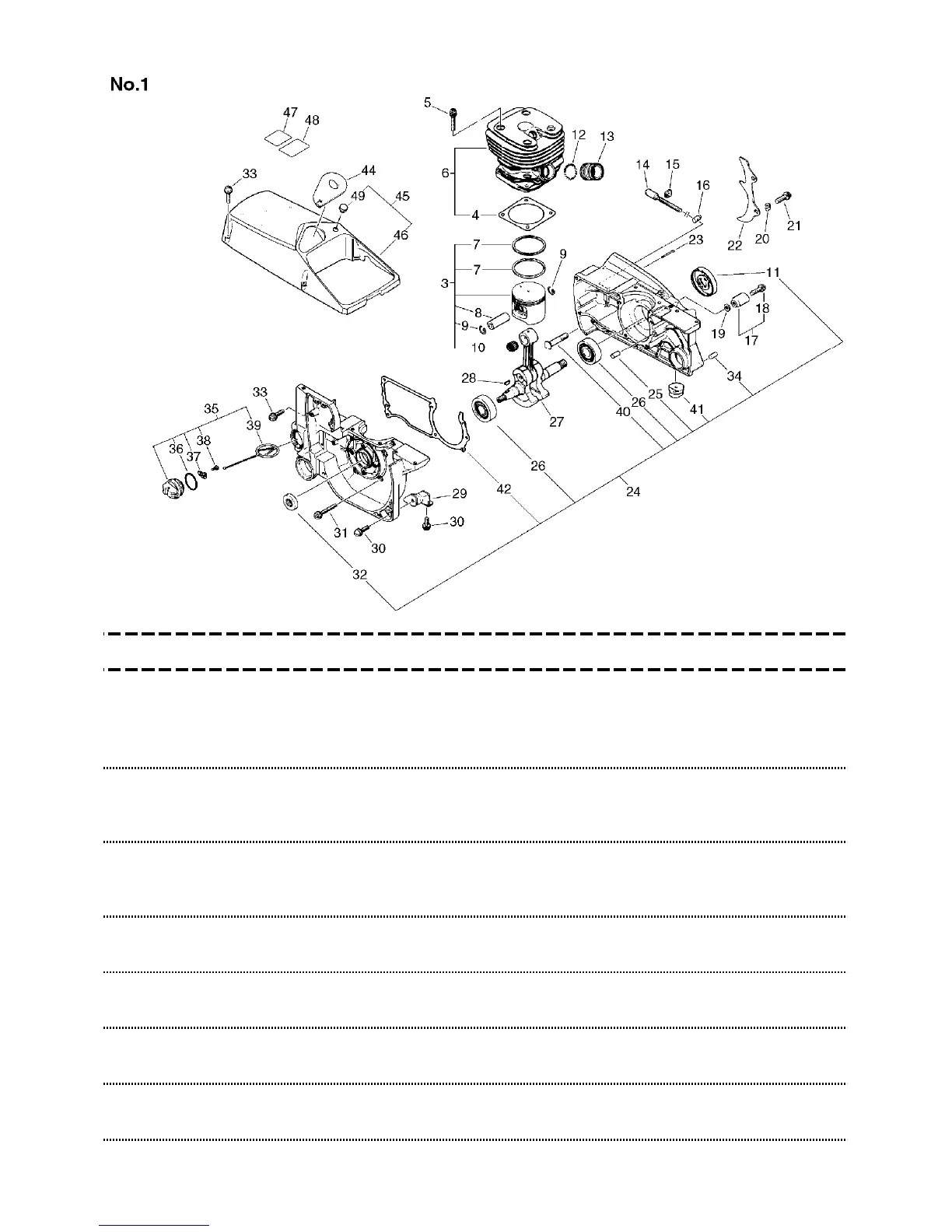

1. Cylinder, Crankcase, Piston
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 900281-06025 4 SCREW 6*25 6*25
Sus. by 900162-
06025
5 900162-06025 4
BOLT, H.S. 6*25
6*25 W,SW
6 101001-30832 1
CYLINDER ASSY
Sus. by 101001-
30833
6 101001-30833 1
CYLINDER W/GASKET
4 + 101010-30830 1
GASKET, CYL. BASE
3 100000-30830 1
PISTON KIT
Sus. by 100000-
30832
3 100000-30831 1
PISTON KIT
Sus. by 100000-
30832
3 100000-30832 1
PISTON KIT
7 + 100011-30831 2
RING, PISTON
8 + 100013-30830 1
PIN, PISTON
8*13*34.8
9 + 100015-30830 2
CIRCLIP, PISTON PIN
10 + 100012-30830 1
BEARING, NEEDLE
12 130516-30830 1
BAND
13 130510-30830 1
ADAPTER, INTAKE
14 433016-11031 1
SCREW, TENSIONER
15 433028-11030 1
CLIP
16 433014-02830 1
TENSIONER
17 433000-19831 1
CATCHER KIT, CHAIN
18 + 900162-05020 1
BOLT, H.S. 5*20
5*20 W,SW
19 900600-00005 1
WASHER 5
5
20 900605-00006 2
WASHER, SPRING 6
6
21 900105-06020 2
BOLT, H.S. 6*20
6*20
- 1 -
