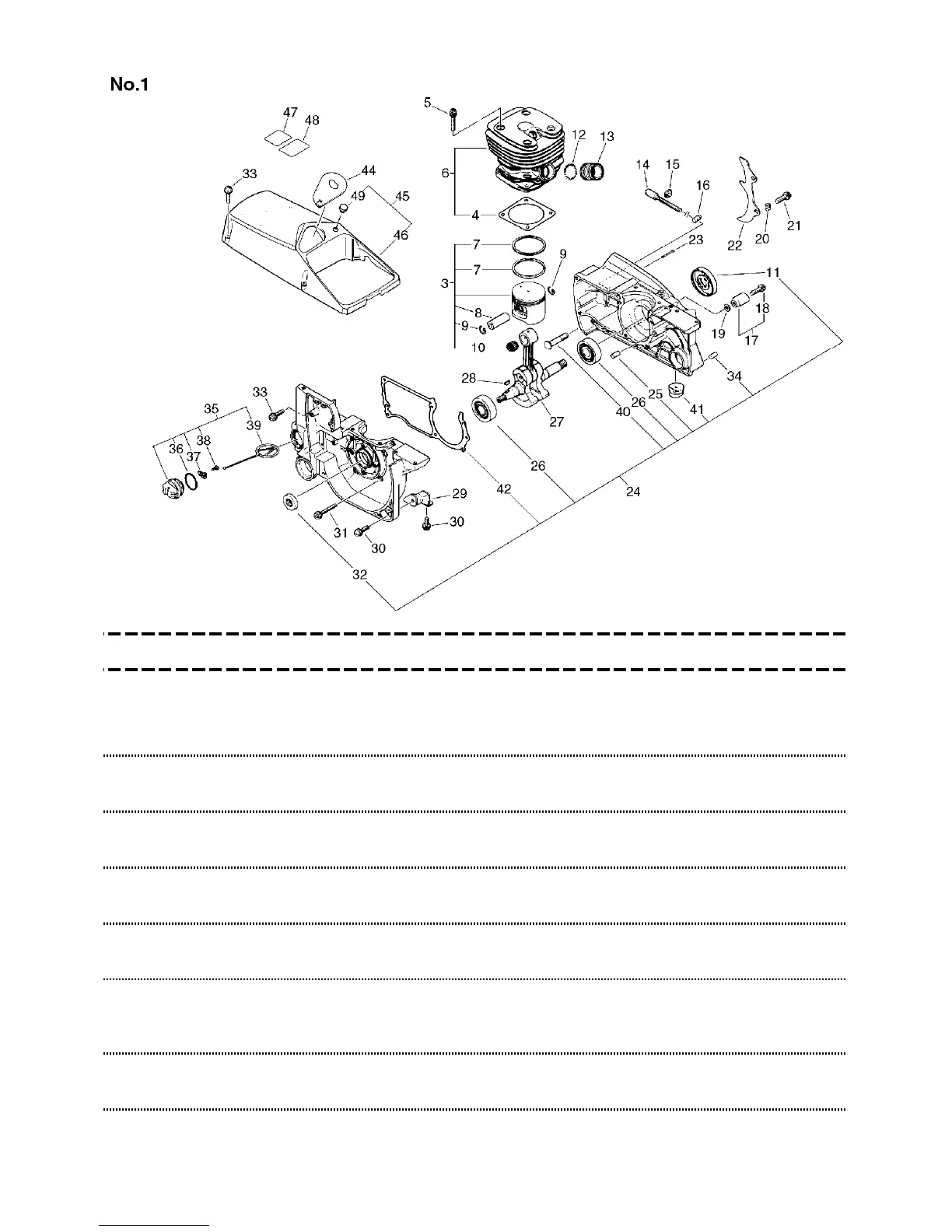

1. Cylinder, Crankcase, Piston
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
22 880210-30830 1 BUMPER, SPIKED
24 100204-30832 1
CRANKCASE KIT
11 + 100213-30830 1
OILSEAL
25Z-16 39.9 7
23 + 436114-13930 1
VALVE, CHECK
25 + 100215-02830 2
PIN, DOWEL
26 + 900810-36203 2
BEARING, BALL 6203
6203/C3
32 + 100212-19830 1
OILSEAL
ISM 15*25*6
34 + 900345-50010 1
PIN, SPRING 5*10SUS
5*10SUS
40 + 433011-19830 2
STUD, GUIDE BAR
41 + 100251-19830 1
CUSHION (A)
42 + 100242-30830 1
GASKET, CRANKCASE
27 100100-30830 1
CRANKSHAFT ASSY
28 100142-30830 1
KEY, WOODRUFF
29 100921-30830 1
CUSHION
30 900162-05014 2
BOLT, H.S. 5*14
5*14 W,SW
31 900162-05035 4
BOLT, H.S. 5*35
5*35 W,SW
33 900162-05020 5
BOLT, H.S. 5*20
5*20 W,SW
35 436001-19832 1
CAP ASSY, OIL TANK
Sus. by 436001-
19833
35 436001-19833 1
CAP ASSY, OIL TANK
36 + 900721-00025 1
O-RING 25
G-25
37 + 131050-19830 1
RETAINER, LINK
38 + 900249-03008 1
SCREW 3*8
3*8
Sus. by 900246-
03008
38 + 900246-03008 1
SCREW 3*8
3*8
