Echo CSG-7410 User Manual

29
CSG-7410

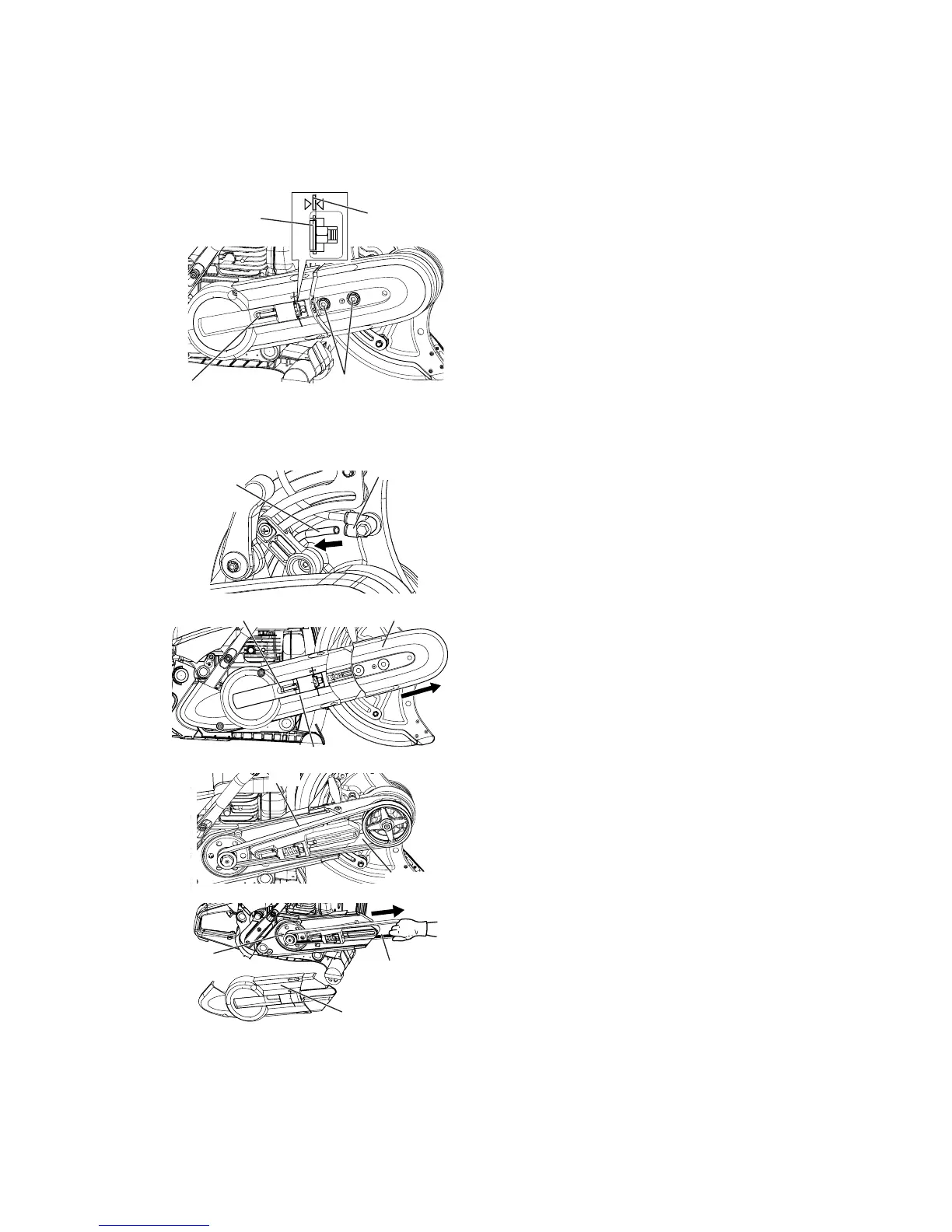

Belt Change and Adjustment
Adjusting the Belt
Adjust the belt if it becomes loose.
1. Loosen the 2 pulley cover bolts about 1 turn.
2. Turn the tension screw so the washer lines up
with the mark on the clutch cover.
3. Tighten the 2 pulley cover bolts. Note: Tighten to
a torque of 23 to 27N･m (230 to 270 kgf･cm).
Replacing the Belt
Replace the belt when it becomes very worn
(peeling, turning, cuts, cracking, etc.)
1.Disconnect the water-flush pipe from the pipe
connector.
2. Loosen the tension screw and then remove the
2 pulley cover bolts.
3. Remove the pulley cover along its rail.
4. Loosen the clutch cover bolt and then remove
the clutch cover.
5. Remove the old belt and then remove the cutter
arm.
6. Put the new belt on the small pulley.
7. While pulling the belt in the direction of the cutter,
install the clutch cover and fasten it with its bolt.
Bolt
Tension screw
Washer
Mark
Pulley cover
Tension screw
Clutch cover
Cutter arm
Pulley
(small)
Clutch cover
Belt
Belt
Water-flush
pipe
Pipe connector
