ASSEMBLY DCS-2500T
28 X7508220200
© 10/21 ECHO Incorporated

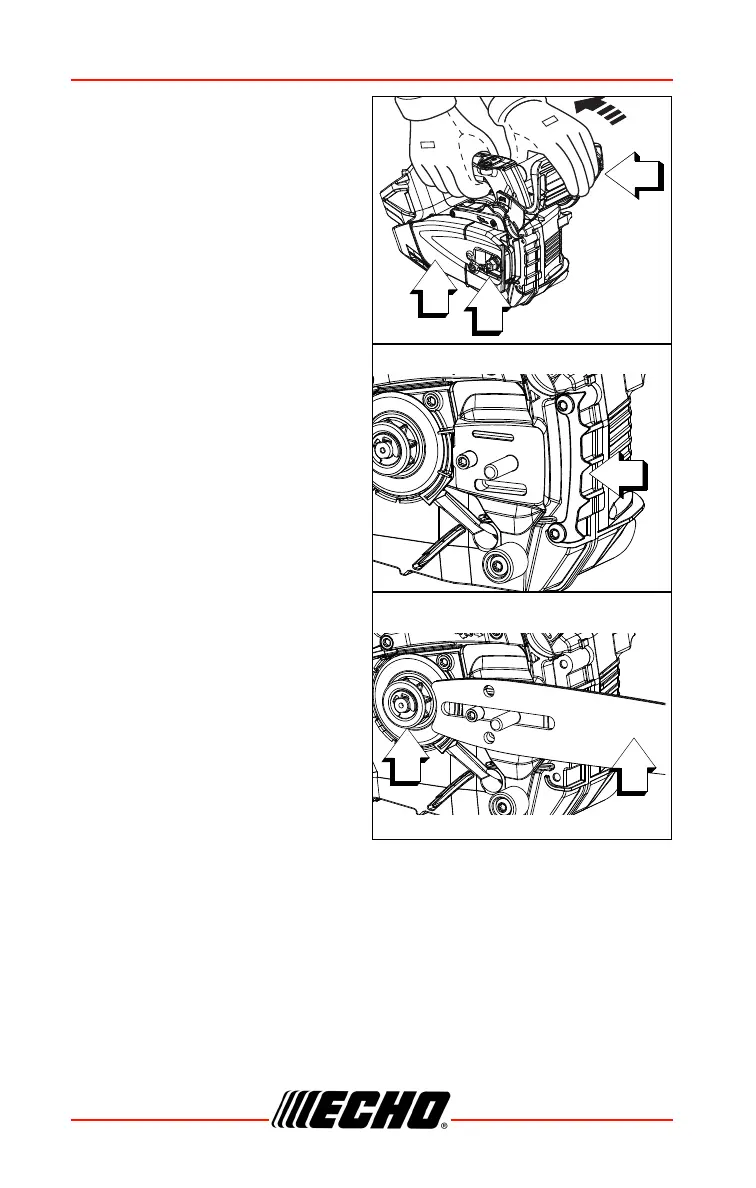

1. Release chain brake (A).
2. Loosen sprocket cover nut (B).
3. Remove sprocket cover (C).
4. Install spiked bumper (D).
Secure with 2 bolts.
5. Mount guide bar (E) and slide
toward sprocket (F) to make
saw chain installation easier.
