DCS-2500T ASSEMBLY
X7508220200 29
© 10/21 ECHO Incorporated

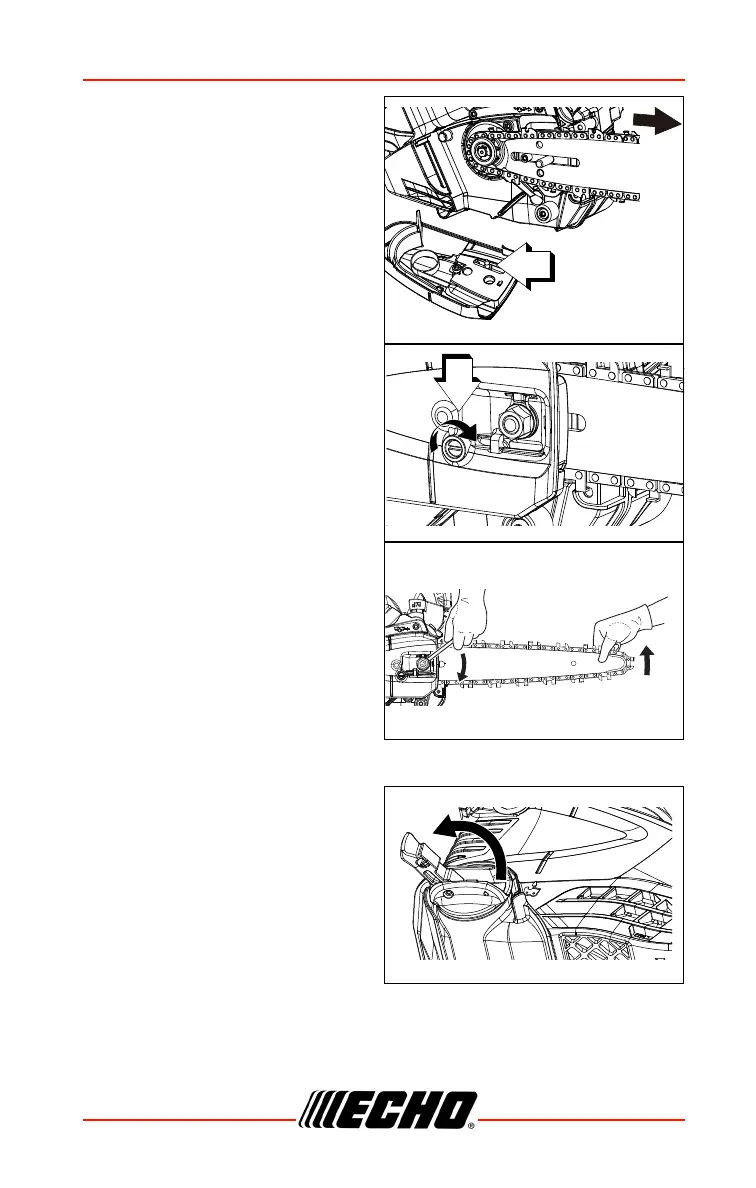

6. Install saw chain as shown.
(Ensure cutters are pointing in
the right direction.)
7. Install the sprocket cover over
the guide bar stud. Ensure that
chain tension adjuster (G) fits
into guide bar hole.
8. Tighten sprocket cover nut
finger tight.
9. Hold the guide bar nose up and
turn the adjuster (H) clockwise
until the chain fits snugly
against the underside of the
bar.
10. Tighten sprocket cover nut with
bar nose held up.
11. Pull the chain around the guide
bar by hand. Loosen the
adjustment if you feel tight
spots.
Chain Lubricant
Proper lubrication of the chain
while in operation minimizes
friction between the chain, the
guide bar and sprocket. Use
ECHO genuine chain oil or ECHO
recommended chain oil specially
formulated for bars and chains for
proper lubrication. These oils
contain tackifiers, anti-aging and
anti-oxidizing agents.
Consult your ECHO dealer for the proper chain oil. Never use waste or
reclaimed oil to avoid various malfunctions of the oil system, chain and
guide bar. Lubrication problems caused by the use of improper oil will void
the warranty.
