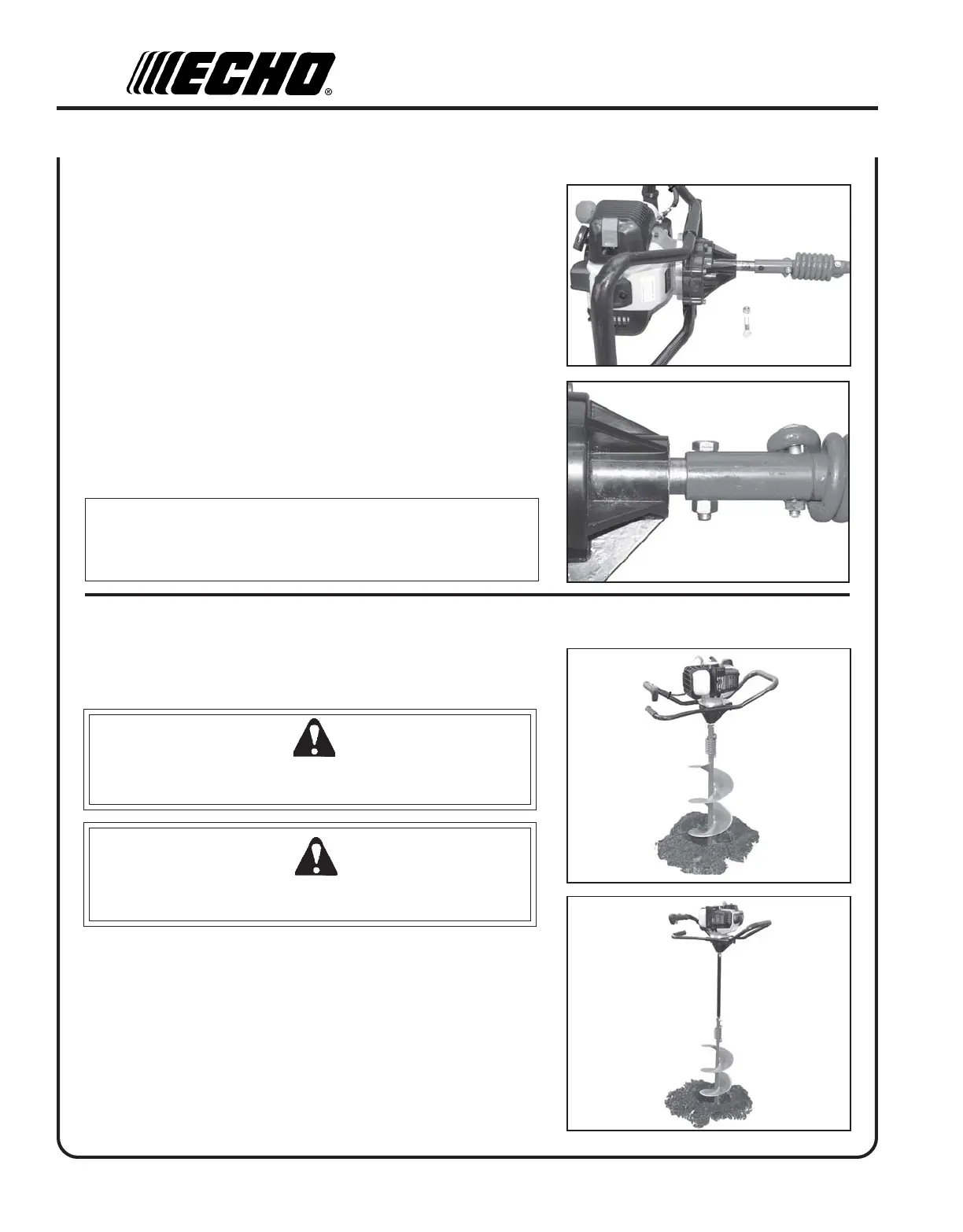

AUGER INSTALLATION
Tools Required: 6, 8, & 10 in. Earth Augers - (2) 9/16 in. Wrenches
2, 3, & 4 in. Earth Augers - Hex wrench.
8 & 10 in. Ice Augers - Hex wrench
Parts Required: Auger Blade Assembly - Includes:
6 - 10 in. Earth Auger: 3/8-16 x 1- 1/2" Bolt, 3/8-16 Hex Nut
2 - 4 in. Earth Augers: 3/8-16 x 1- 1/4" Socket Head Screw
8 - 10 in. Ice Augers: 3/8-16 x 1- 1/4" Socket Head Screw
1. Carefully place engine on a flat surface with muffler side down.
2. Remove assembly hardware from auger.
3. Slide auger assembly onto gear case PTO shaft.
4. Align PTO shaft mounting hole with auger mounting hole.
5. Secure auger to PTO shaft with hardware provided, and tighten
securely.
NOTE
6, 8, & 10 in. Earth Augers hardware style shown in illustration.
2, 3, & 4 in. Earth augers and 8 & 10 in. Ice Augers use socket head
screws only.
AUGER EXTENSION
Tools Required: (2) 9/16 in. Wrenches/ Hex Wrench
Parts Required: Auger Extension, 12 or 18 in. Includes assembly
hardware.
WARNING DANGER
The muffler and area around the muffler may be extremely hot.
Avoid contact with this area, otherwise serious injury may result.
WARNING DANGER
Never operate auger with handles above chest height, otherwise
you could lose control, resulting in serious personal injury.
1. Drill hole into ground 15 to 20 in. deep. Stop engine, and clean off
auger mounting bolt hardware.
2. Remove auger mounting hardware. Lift engine off auger, and set
aside. The engine should be supported on the ground by the
handles and PTO shaft.
3. Remove extension hardware.
4. Slide extension onto auger shaft, align holes, and install mounting
hardware. Tighten securely.
5. Install engine on extension shaft, and secure with hardware
removed in step 2. Tighten securely.
To Next Page
