Echo ES250 - Assembly; Install Blower Pipes

ES-250 ASSEMBLY
X7501182906 17
© 9/2018 ECHO Inc.
ASSEMBLY
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.

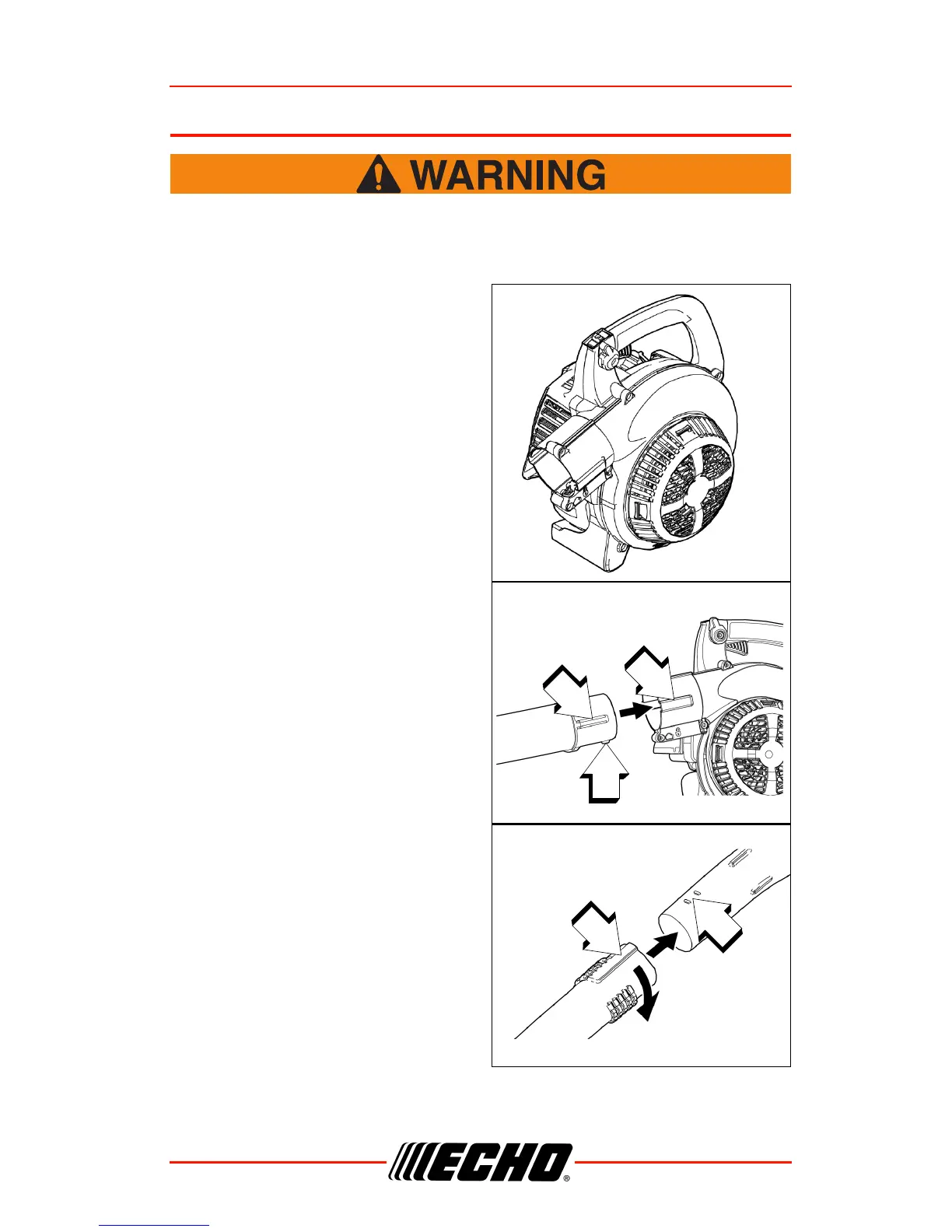

Install Blower Pipes
1. Stand unit upright on blower
base.
2. Align locking ribs (A) on upper
blower pipe with recesses (B) in
fan case. Assure short locking rib
(C) faces downward. Slide upper
blower pipe into fan case until a
clicking sound is heard.
3. Align tabs (D) with grooves (E)
and slide lower blower pipe over
upper pipe until there is light
resistance. Do not force
connection.
4. Hold upper pipe, and turn lower
pipe clockwise, engaging
positive locking channels until
connection is firm. Do not force
connection.
A
B
C
Blower Pipe Upper
Blower Pipe Lower
E
D
