Echo ES250 - Vacuum;Shredding Application

ES-250 ASSEMBLY
X7501182906 19
© 9/2018 ECHO Inc.
Vacuum/Shredding Application

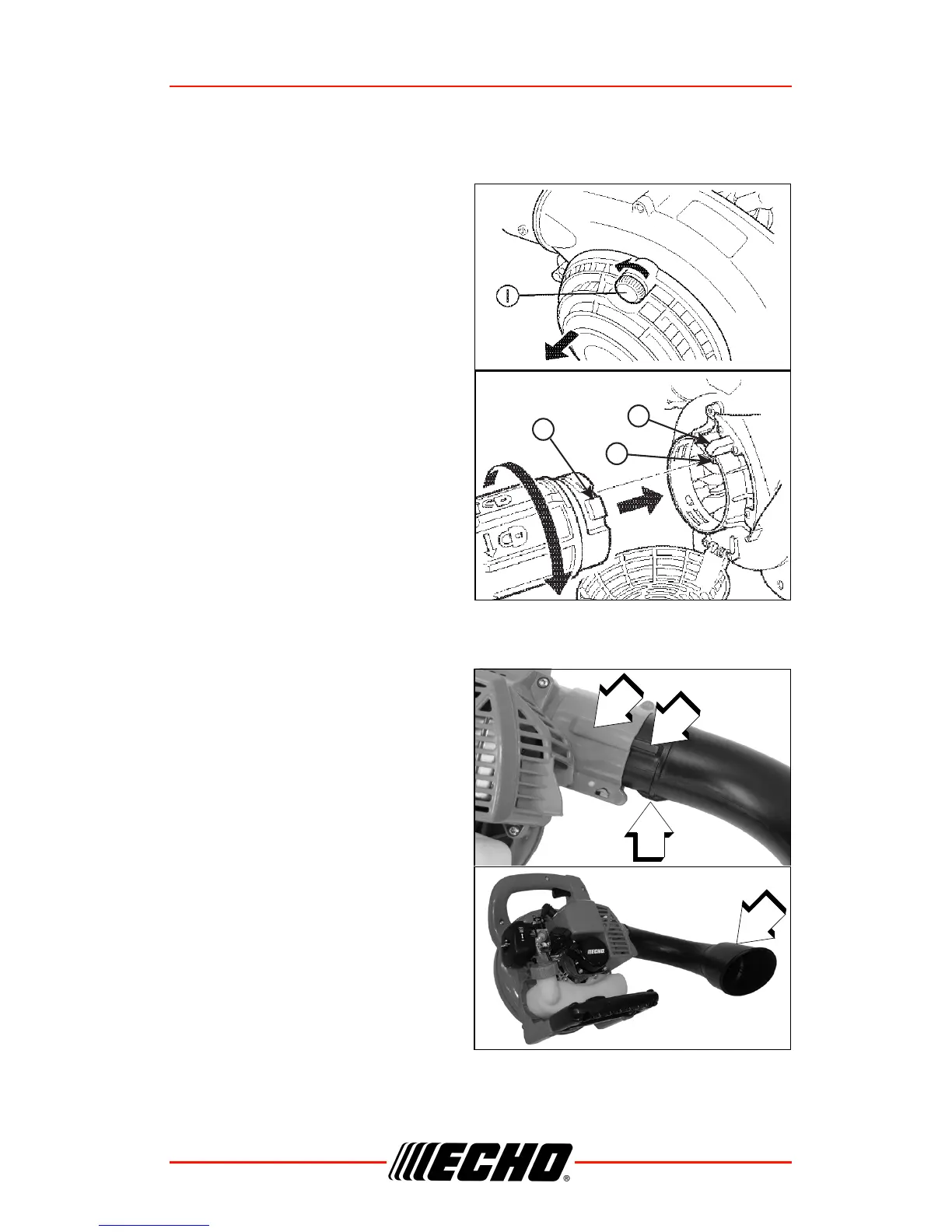

Install Vacuum Tube
1. Turn knob (I) counter clockwise
until hinged housing cover is
free to open for vacuum tube
installation.
2. Opening housing cover, slide
recess (J) on vacuum tube into
locking rib (K), and turn the
vacuum tube clockwise so that
it is locked.
Note: Engine will not
start/operate unless
safety interlock switch (L)
is activated by the
vacuum tube.
Install Bag
1. Stand unit upright on blower base.
2. Align locking ribs (A) on elbow
pipe with recesses (B) in fan
case. Assure short locking rib
(C) faces downward. Slide
elbow pipe into fan case until a
clicking sound is heard.
3. Place debris bag opening over
flared end of elbow (D), and
cinch bag securely with Velcro
strap (E).
J
K
L
B
A
C
D
